Removal and Installation

  1. Raise and support the vehicle. For additional information, refer to JACKING & LIFTING .
  2. Disconnect the wiring.
    Fig 1: Disconnecting Wiring
    G03954606Courtesy of FORD MOTOR CO.
  3. Disengage the wiring from the wiring clips.

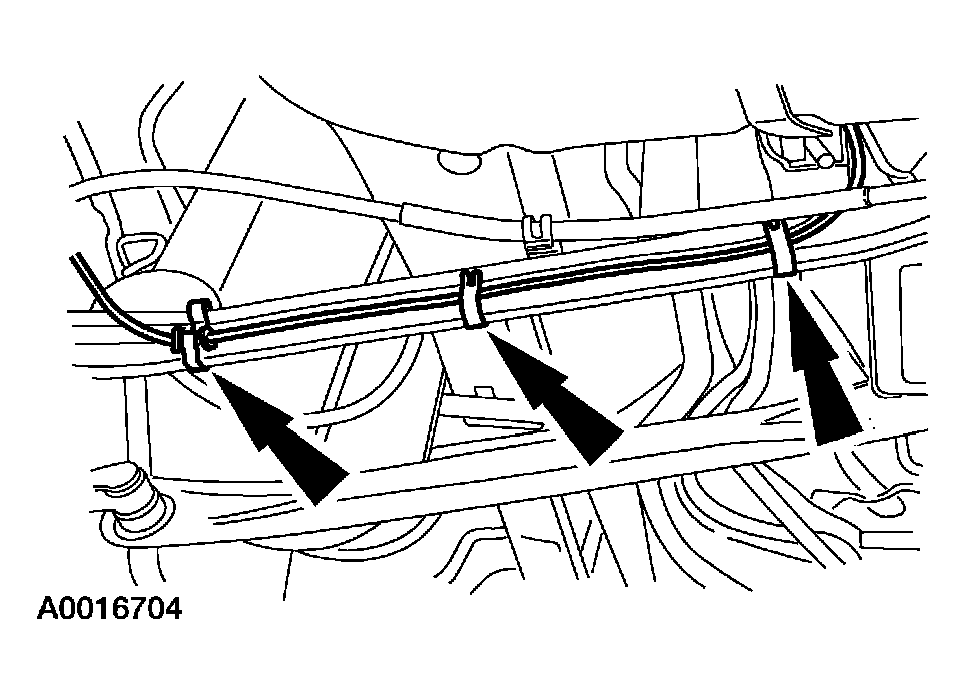

    Fig 2: Disengaging Wiring From Wiring Clips
    G03954607Courtesy of FORD MOTOR CO.
  4. Remove the bolt and the rear wheel speed sensor.

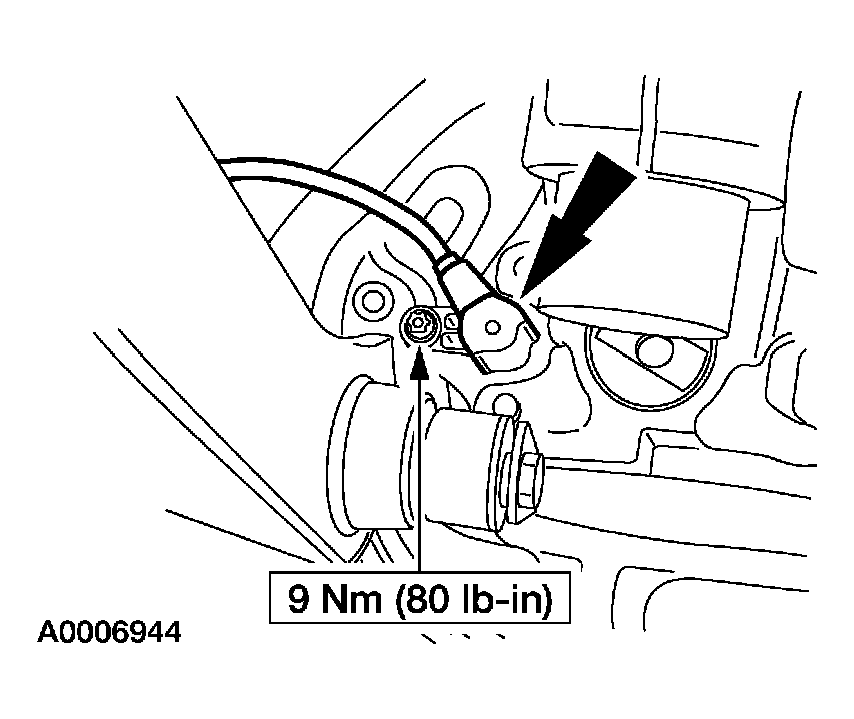

    Fig 3: Rear Wheel Speed Sensor - With Torque Specification
    G03954268Courtesy of FORD MOTOR CO.
  5. To install, reverse the removal procedure.
