Fuel Rail Pressure and Temperature Sensor: Material

MATERIAL SPECIFICATION

Item Specification
SAE 5W-20 Motorcraft Premium Synthetic Blend Motor Oil XO-5W20-QSP or equivalent WSS-M2C930-A

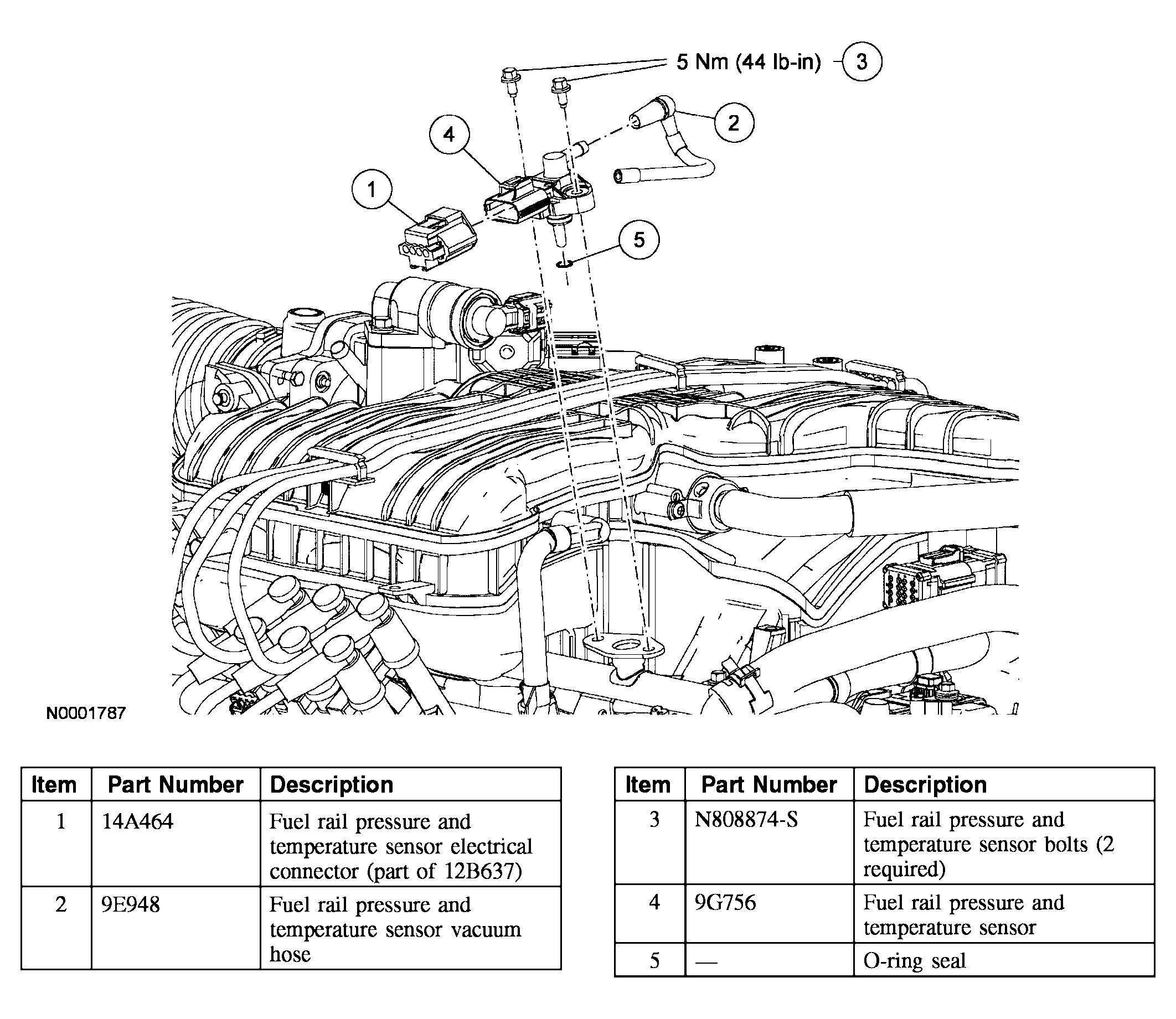

Fig 1: Installing Fuel Rail Pressure And Temperature Sensor
G04004514Courtesy of FORD MOTOR CO.
