Exhaust Manifold - LH: Notes

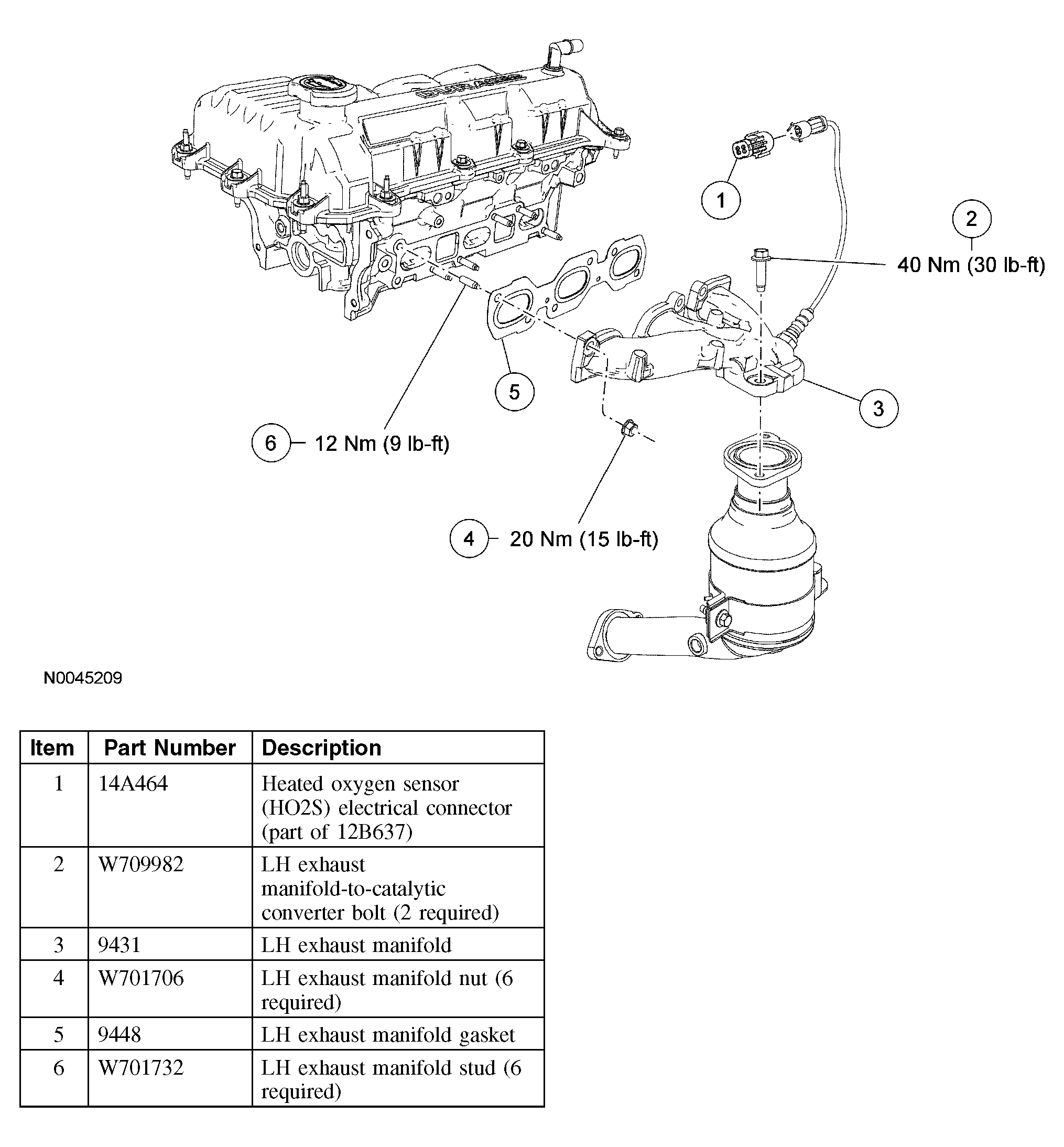

Fig 1: Identifying Exhaust Manifold - LH And Components

G03990190

Courtesy of FORD MOTOR CO.
