Connector Circuit Reference

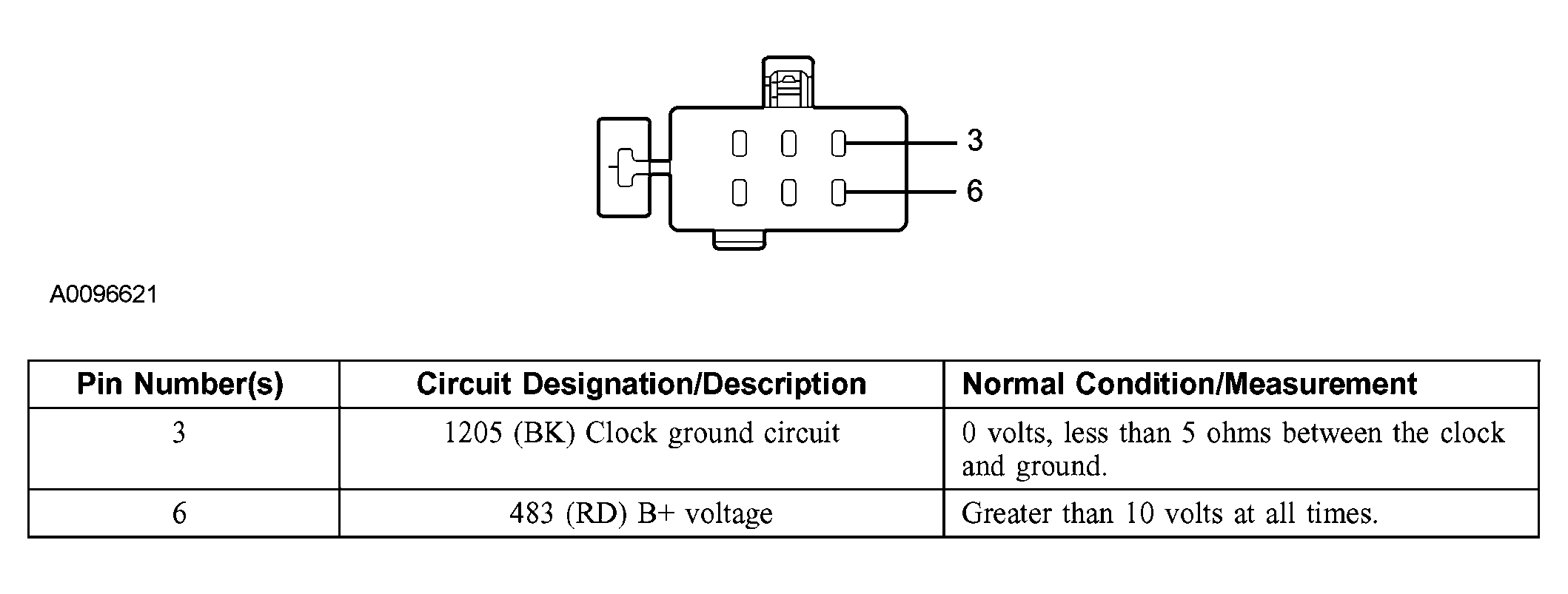

Fig 1: Connector Circuit Reference - Clock C2016

G03992595

Courtesy of FORD MOTOR CO.
