Home
>>
Mercury
>>
2005
>>
Montego Base, AWD
>>
Repair and Diagnosis
>>
Electrical
>>
Charging Systems
>>
Battery, Mounting And Cables
>>
Removal And Installation
>>
Battery and Battery Tray - Exploded View
>>
Notes
Battery and Battery Tray - Exploded View: Notes

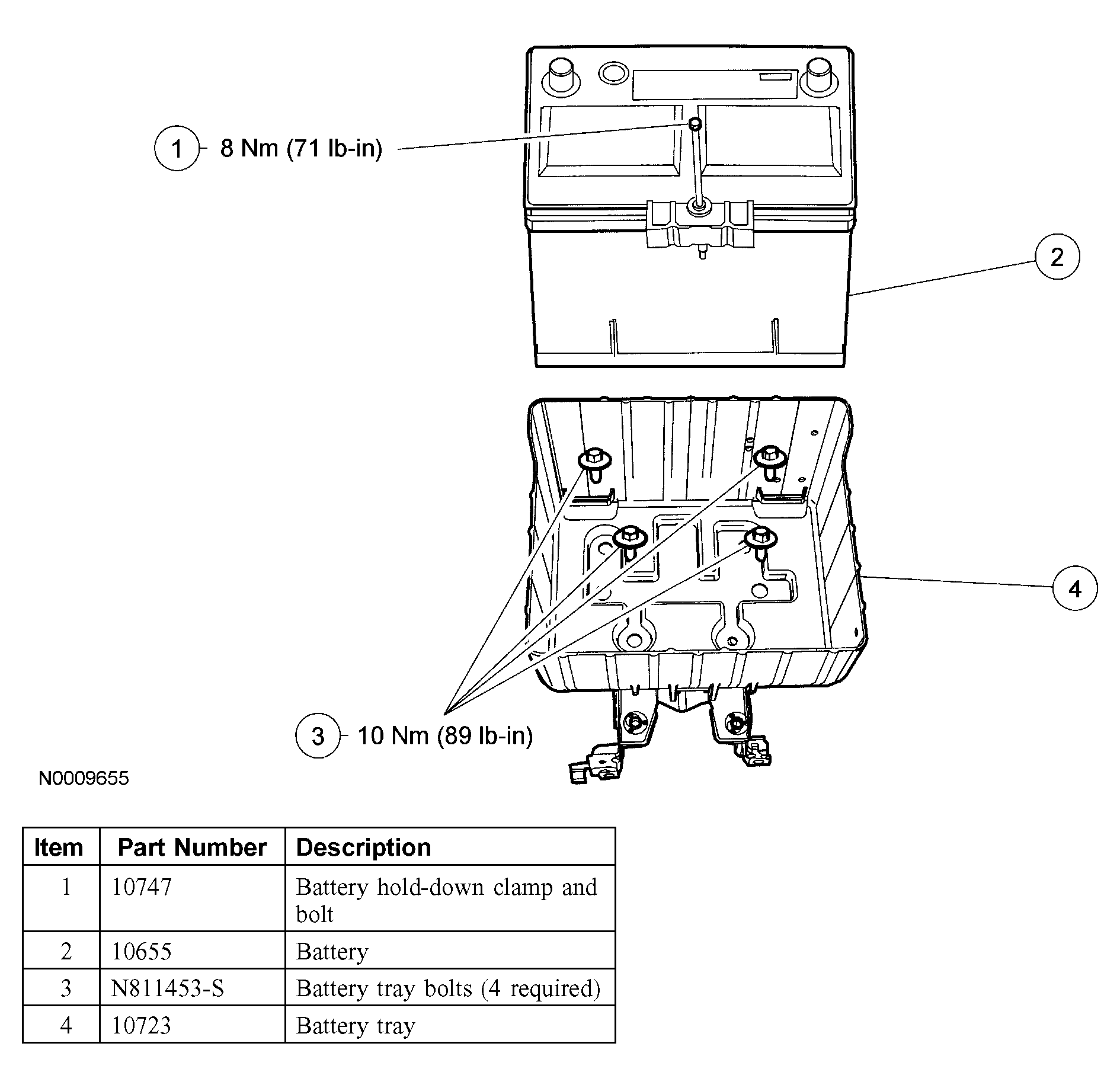

Fig 1: Removing/Installing Battery And Battery Tray
Courtesy of FORD MOTOR CO.
For additional information, refer to the
PROCEDURES
.
