Removal and Installation

  1. Disconnect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
  2. Disconnect the mass air flow (MAF) sensor electrical connector.

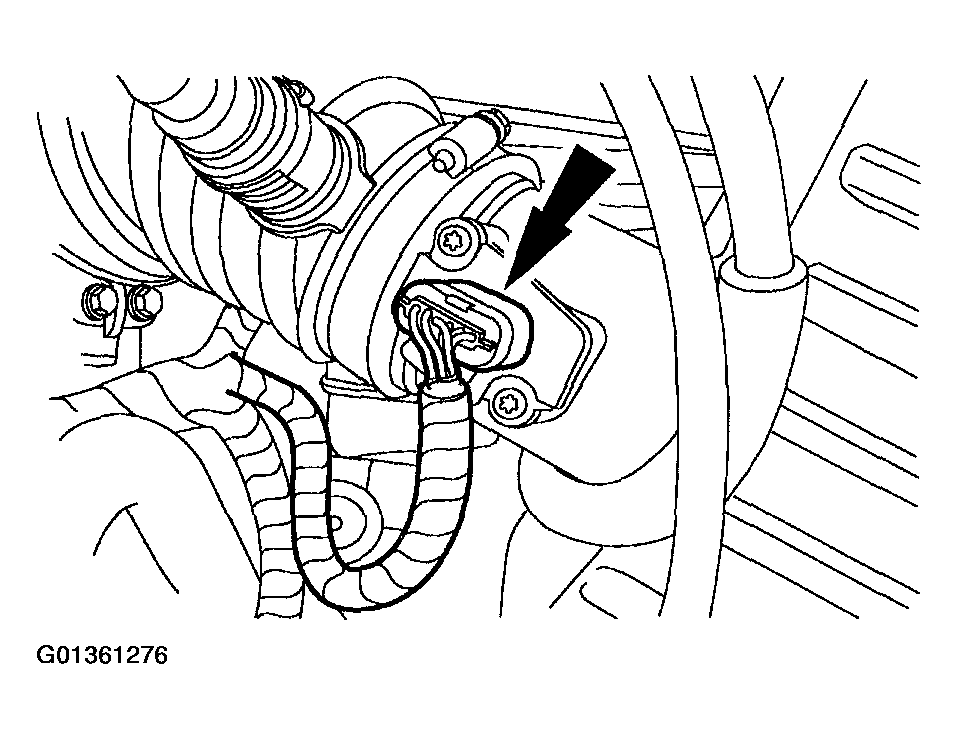

    Fig 1: Disconnecting Mass Air Flow (MAF) Sensor Electrical Connector
    G01361276Courtesy of FORD MOTOR CO.
  3. Remove the two retaining screws and the MAF sensor.

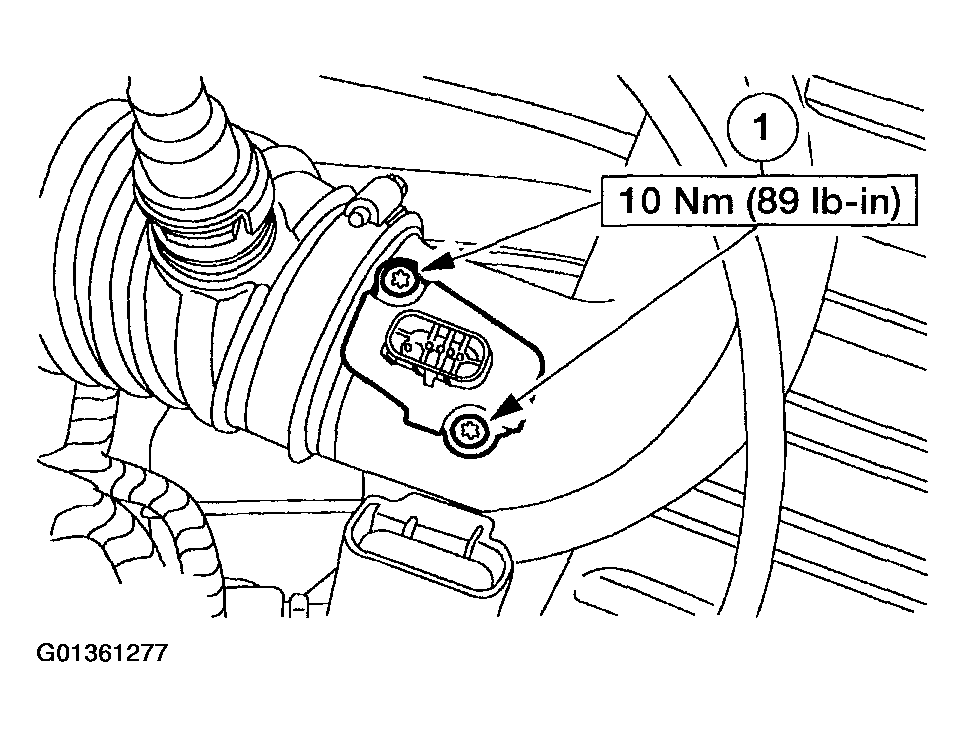

    Fig 2: Removing Retaining Screws Of MAF Sensor
    G01361277Courtesy of FORD MOTOR CO.
  4. To install, reverse the removal procedure.
