Camshaft Position (CMP) Sensor: Notes

Special Tool(s)

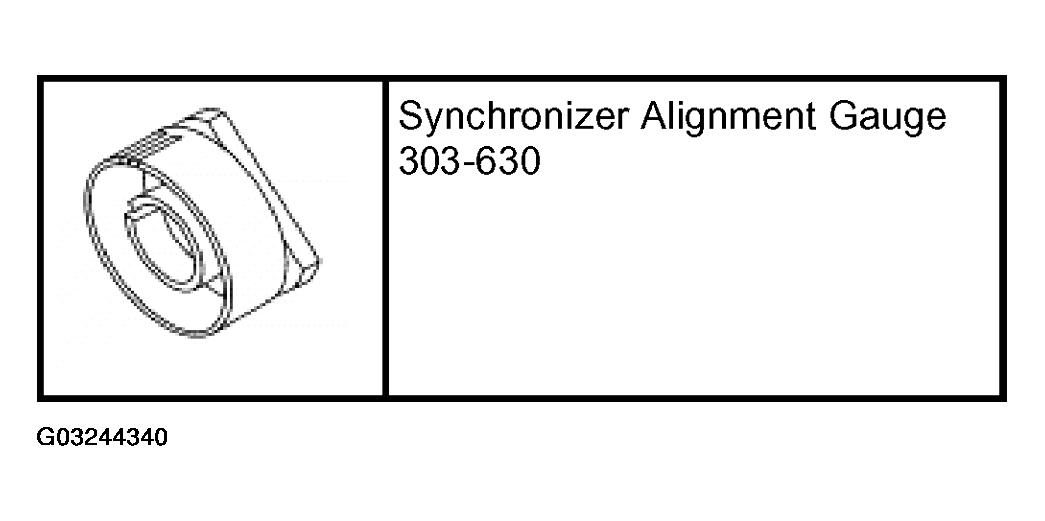

Fig 1: Identifying Special Tool(s)

Courtesy of FORD MOTOR CO.

1. Disconnect the battery ground cable. For additional information, refer to BATTERY & CHARGING SYSTEM .
2. If removing the camshaft synchronizer, drain the cooling system. For additional information, refer to ENGINE COOLING .
3. If removing the camshaft synchronizer, remove the accessory drive belt.
   • Rotate the accessory drive belt tensioner counterclockwise.
   • Push the spring clip toward the belt tensioner to lock the accessory drive belt tensioner in place.

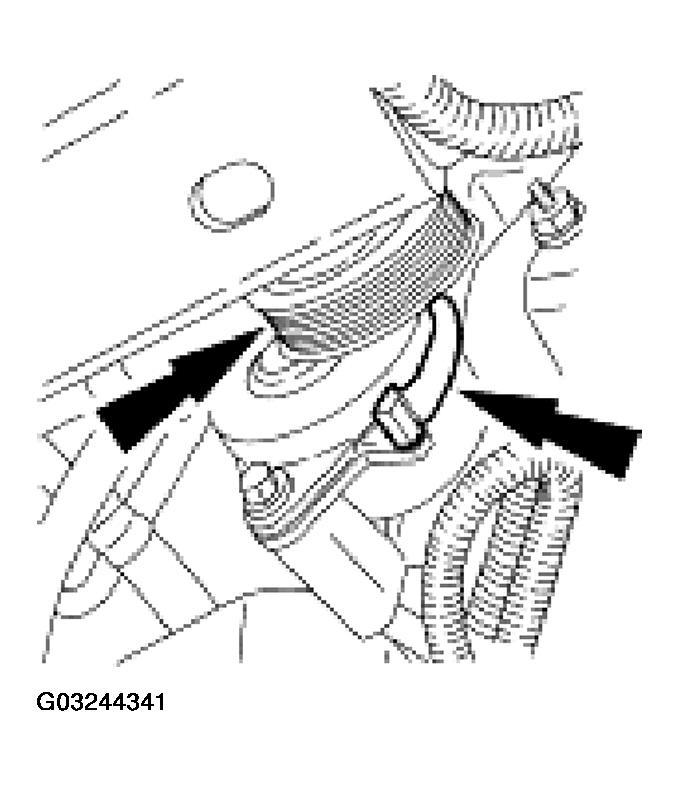

     Fig 2: Removing Accessory Drive Belt

     Courtesy of FORD MOTOR CO.
4. Remove the parts in the order indicated in Fig 3 and table.
   PART REMOVAL SEQUENCE



   Part	Steps
   Camshaft position (CMP) sensor	1-3
   Camshaft synchronizer	1-11

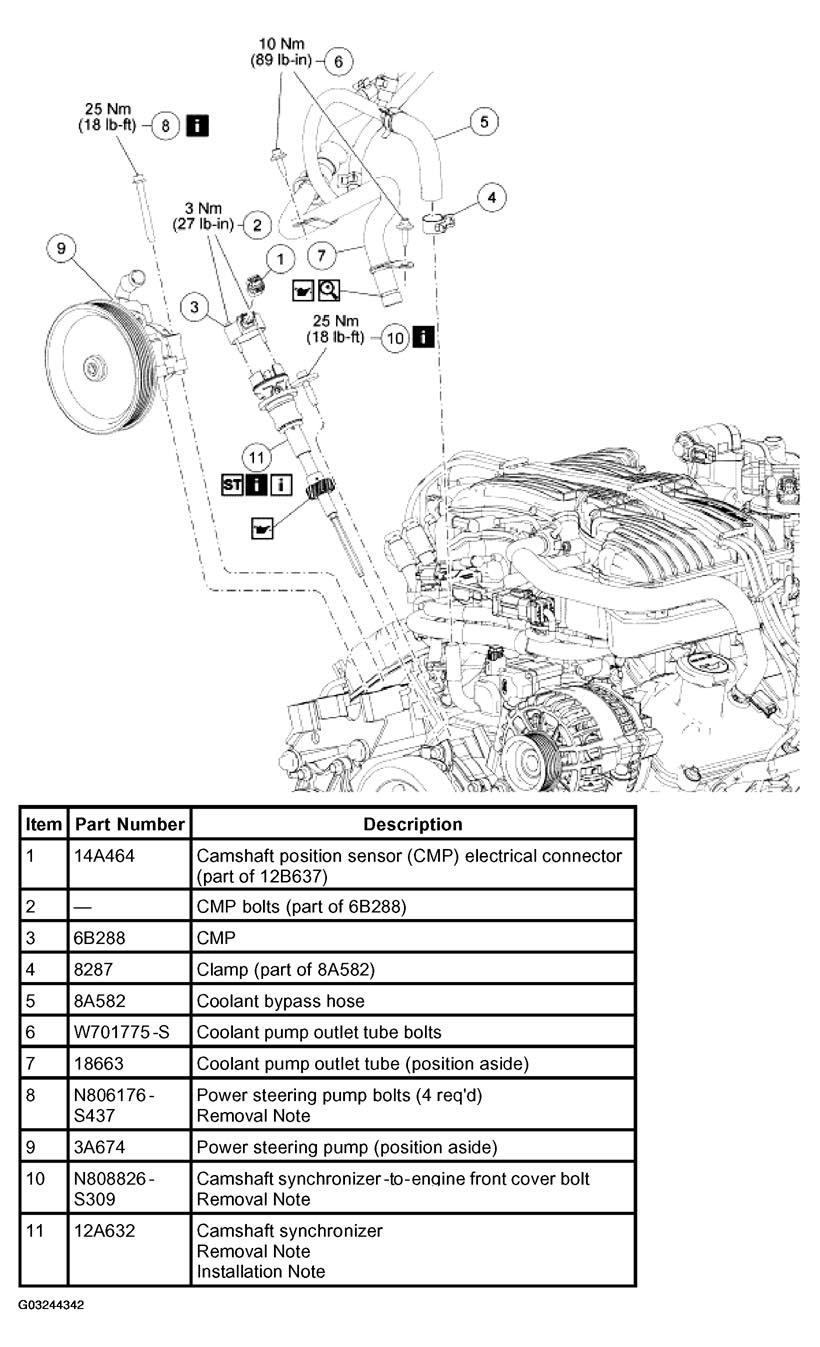

   Fig 3: Camshaft Position (CMP) Sensor Parts Removal Sequence

   Courtesy of FORD MOTOR CO.
5. To install, reverse the removal procedure.
6. Fill and bleed the cooling system. For additional information, refer to ENGINE COOLING .
