TR Sensor C167

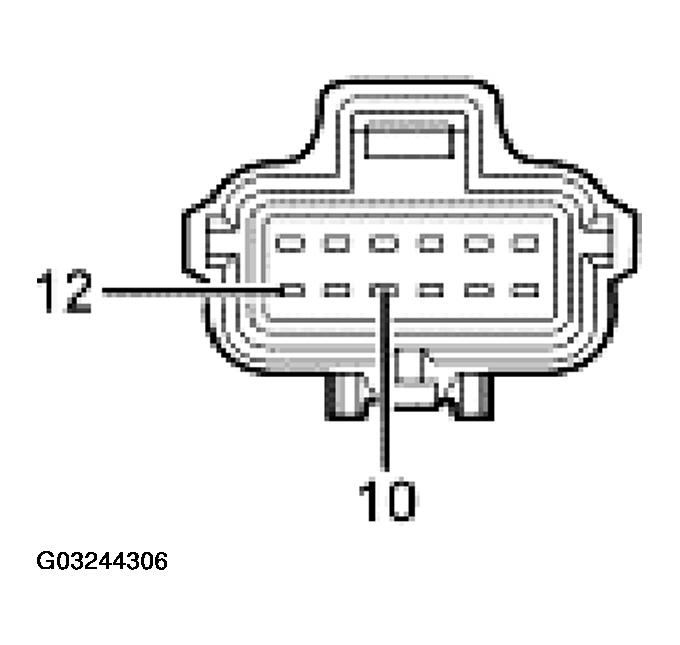

Fig 1: Identifying TR Sensor C167 Terminals
G03244306Courtesy of FORD MOTOR CO.
TR SENSOR C167 - CIRCUIT DESIGNATION/DESCRIPTION

Pin Number (s) Circuit Designation/Description  Normal Condition/Measurement
10 CKT 33 (WH/PK) TR sensor to starter relay coil 10,000 ohms or greater to chassis ground and 0 volts.
12 CKT 32 (RD/LB) TR sensor voltage feed 10 volts or greater in START position.
