Driver Seat Module (DSM) C341d

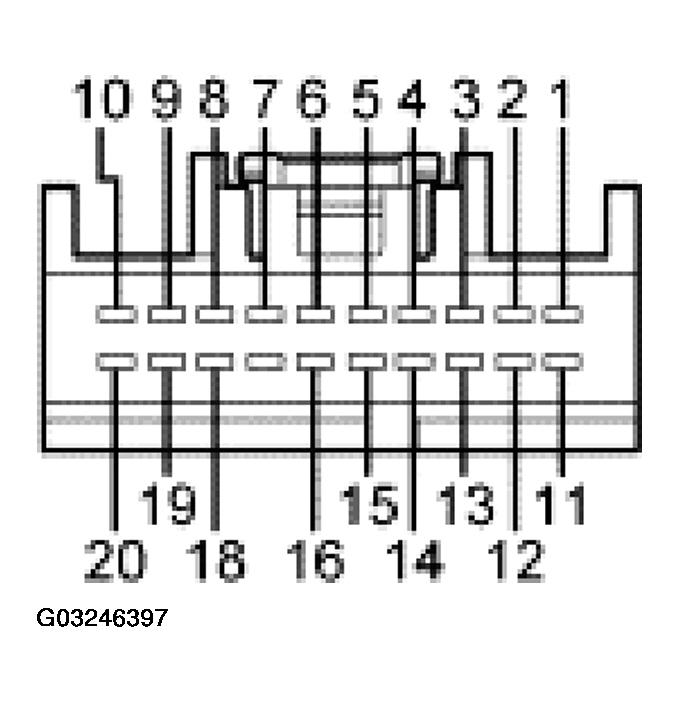

DRIVER SEAT MODULE (DSM) C341D
| Pin Number (s) | Circuit Designation/Description | Normal Condition/Measurement |
|---|---|---|
| 1 | 1482 (PK) exterior mirror up/down control (RH) | 5 ohms or less between the exterior mirror and the DSM connectors (both disconnected). 10,000 ohms or greater between circuit 1482 (PK) and ground. |
| 2 | 1483 (WH/PK) exterior mirror up/down control (RH) | 5 ohms or less between the exterior mirror and the DSM connectors (both disconnected). 10,000 ohms or greater between circuit 1483 (WH/PK) and ground. |
| 3 | 1486 (YE/LB) exterior mirror up/down control (LH) | 5 ohms or less between the exterior mirror and the DSM connectors (both disconnected). 10,000 ohms or greater between circuit 1486 (YE/LB) and ground. |
| 4 | 1487 (DB) exterior mirror up/down control (LH) | 5 ohms or less between the exterior mirror and the DSM connectors (both disconnected). 10,000 ohms or greater between circuit 1487 (DB) and ground. |
| 5 | 943 (VT/OG) exterior mirror control switch (RH-vertical) | 5 ohms or less between the exterior mirror control switch and the DSM connectors (both disconnected). 10,000 ohms or greater between circuit 943 (VT/OG) and ground. |
| 6 | 945 (YE/BK) exterior mirror control switch (common) | 5 ohms or less between the exterior mirror control switch and the DSM connectors (both disconnected). 10,000 ohms or greater between circuit 945 (YE/BK) and ground. |
| 7 | 944 (DG/OG) exterior mirror control switch (RH-horizontal) | 5 ohms or less between the exterior mirror control switch and the DSM connectors (both disconnected). 10,000 ohms or greater between circuit 944 (DG/OG) and ground. |
| 8 | 949 (RD/WH) exterior mirror left/right position sensor (LH) | 5 ohms or less between the exterior mirror and the DSM connectors (both disconnected). 10,000 ohms or greater between circuit 949 (RD/WH) and ground. |
| 9 | 951 (DB/WH) exterior mirror up/down position sensor (LH) | 5 ohms or less between the exterior mirror and the DSM connectors (both disconnected). 10,000 ohms or greater between circuit 951 (DB/WH) and ground. |
| 10 | 955 (GY) exterior mirror position sensor common | 5 ohms or less between the exterior mirror and the DSM connectors (both disconnected). 10,000 ohms or greater between circuit 955 (GY) and ground. |
| 11 | 1481 (DG) exterior mirror left/right control (RH) | 5 ohms or less between the exterior mirror and the DSM connectors (both disconnected). 10,000 ohms or greater between circuit 1481 (DG) and ground. |
| 12 | 1480 (WH/LG) exterior mirror left/right control (RH) | 5 ohms or less between the exterior mirror and the DSM connectors (both disconnected). 10,000 ohms or greater between circuit 1480 (WH/LG) and ground. |
| 13 | 1484 (YE/RD) exterior mirror left/right control (LH) | 5 ohms or less between the exterior mirror and the DSM connectors (both disconnected). 10,000 ohms or greater between circuit 1484 (YE/RD) and ground. |
| 14 | 1485 (RD) exterior mirror left/right control (LH) | 5 ohms or less between the exterior mirror and the DSM connectors (both disconnected). 10,000 ohms or greater between circuit 1485 (RD) and ground. |
| 15 | 940 (DB/OG) exterior mirror control switch (LH-vertical) | 5 ohms or less between the exterior mirror control switch and the DSM connectors (both disconnected). 10,000 ohms or greater between circuit 940 (DB/OG) and ground. |
| 16 | 942 (RD/OG) exterior mirror control switch (LH-horizontal) | 5 ohms or less between the exterior mirror control switch and the DSM connectors (both disconnected). 10,000 ohms or greater between circuit 942 (RD/OG) and ground. |
| 18 | 954 (DG/WH) exterior mirror left/right position sensor (RH) | 5 ohms or less between the exterior mirror and the DSM connectors (both disconnected). 10,000 ohms or greater between circuit 954 (DG/WH) and ground. |
| 19 | 957 (VT/WH) exterior mirror up/down position sensor (RH) | 5 ohms or less between the exterior mirror and the DSM connectors (both disconnected). 10,000 ohms or greater between circuit 957 (VT/WH) and ground. |
| 20 | 958 (GY/RD) exterior mirror position sensor common | 5 ohms or less between the exterior mirror and the DSM connectors (both disconnected). 10,000 ohms or greater between circuit 958 (GY/RD) and ground. |
