Symptom Chart - Column Shift

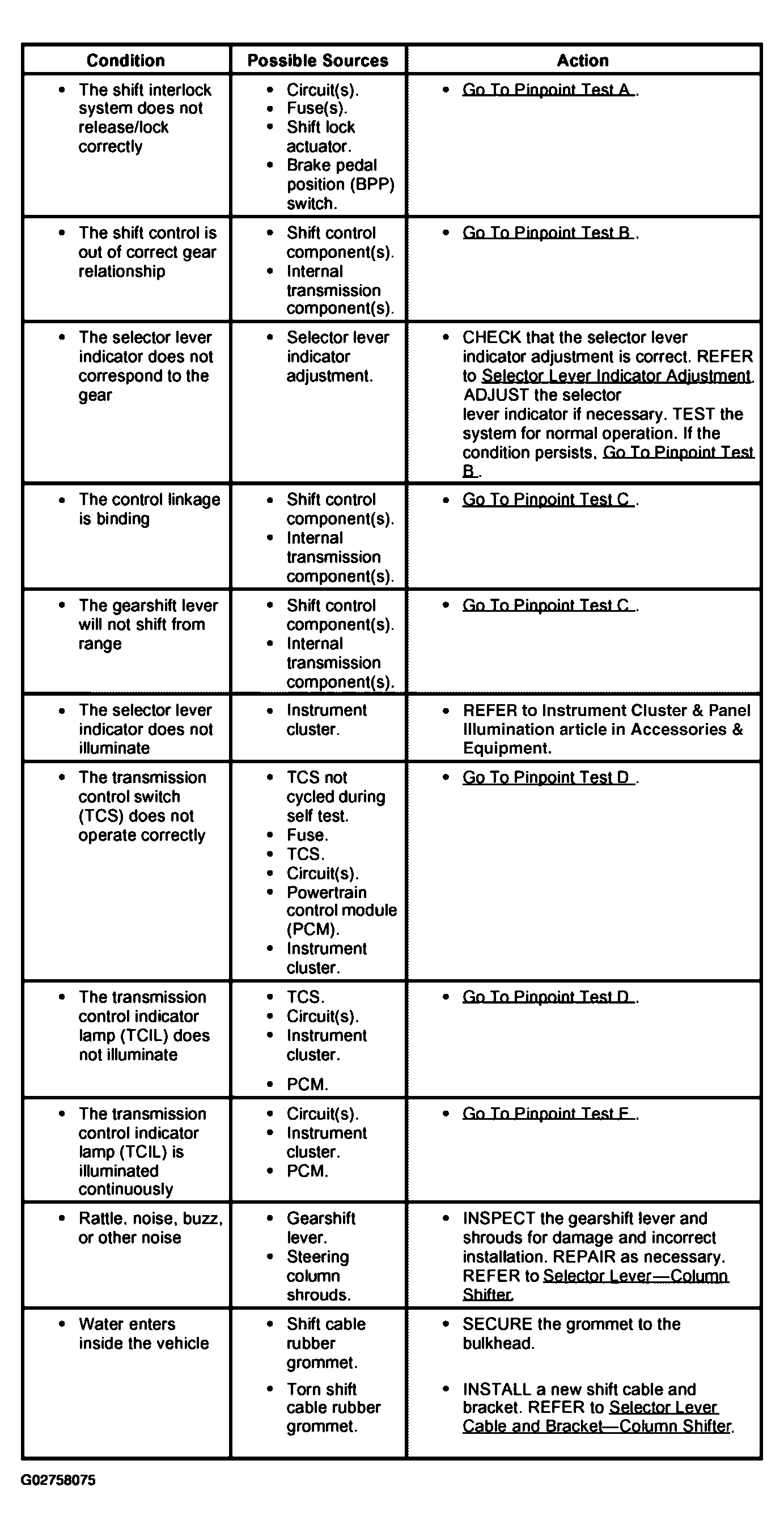

Fig 1: Symptom Chart - Column Shift

G02758075

Courtesy of FORD MOTOR CO.
