Identifying Pinpoint Test A: Shift Interlock System Does Not Release/Lock Correctly
WARNING: This page is about a different car, the 2003 Ford Econoline. However, it is still accessible from the selected car via links, so may be relevant.

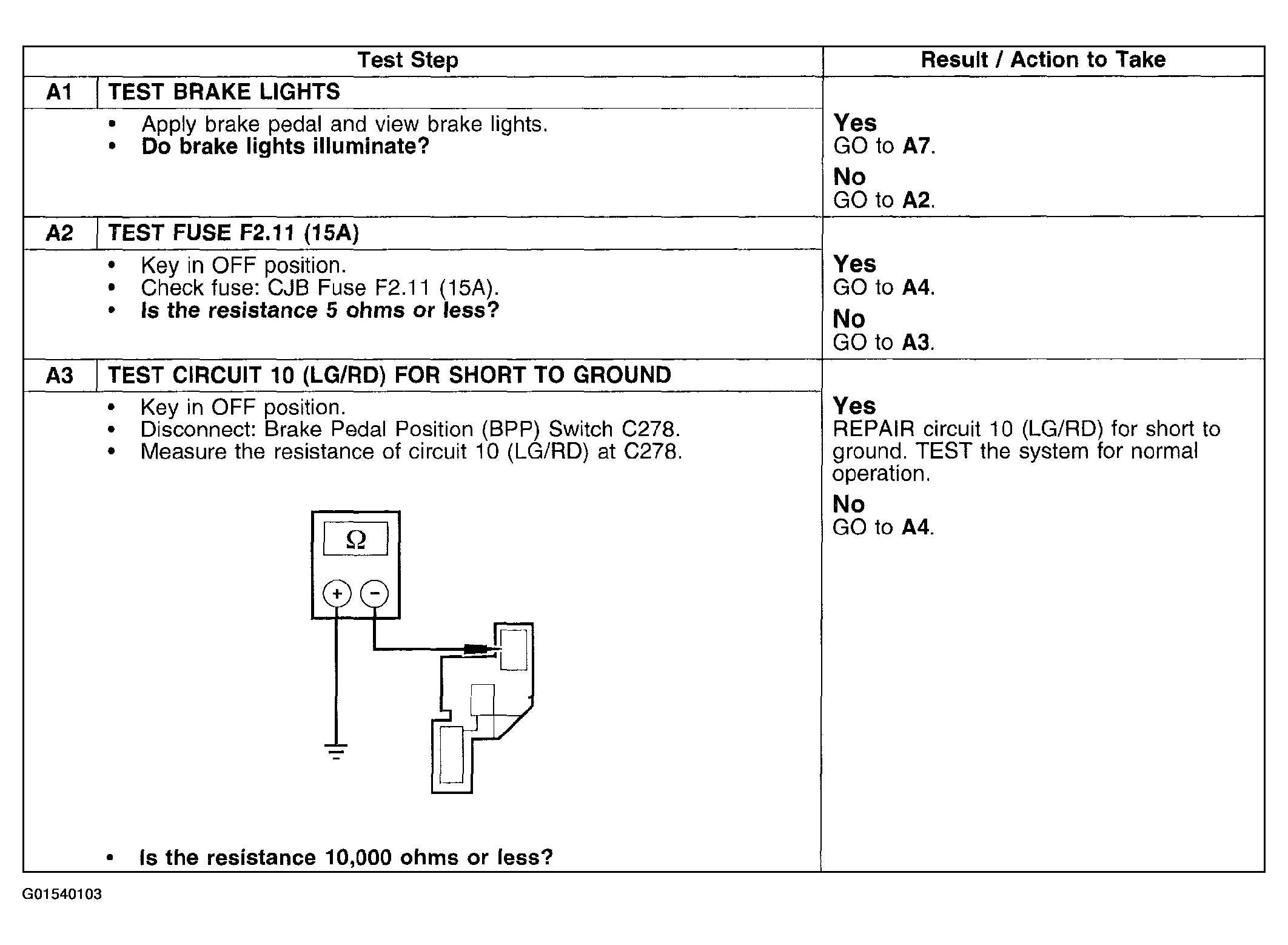

Fig 1: Identifying Pinpoint Test A: Shift Interlock System Does Not Release/Lock Correctly (A1-A3)
Courtesy of FORD MOTOR CO.

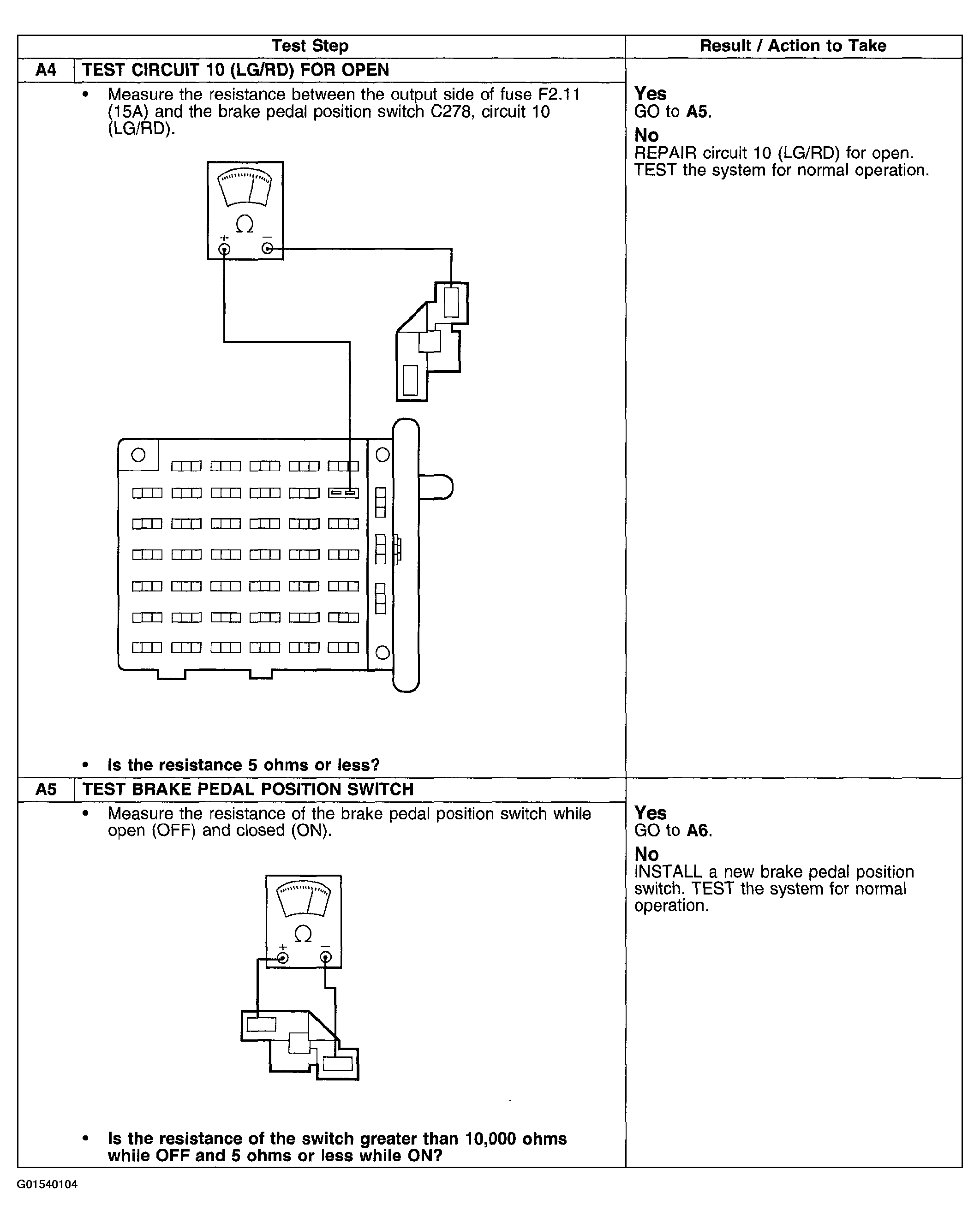

Fig 2: Identifying Pinpoint Test A: Shift Interlock System Does Not Release/Lock Correctly (A4-A5)
Courtesy of FORD MOTOR CO.

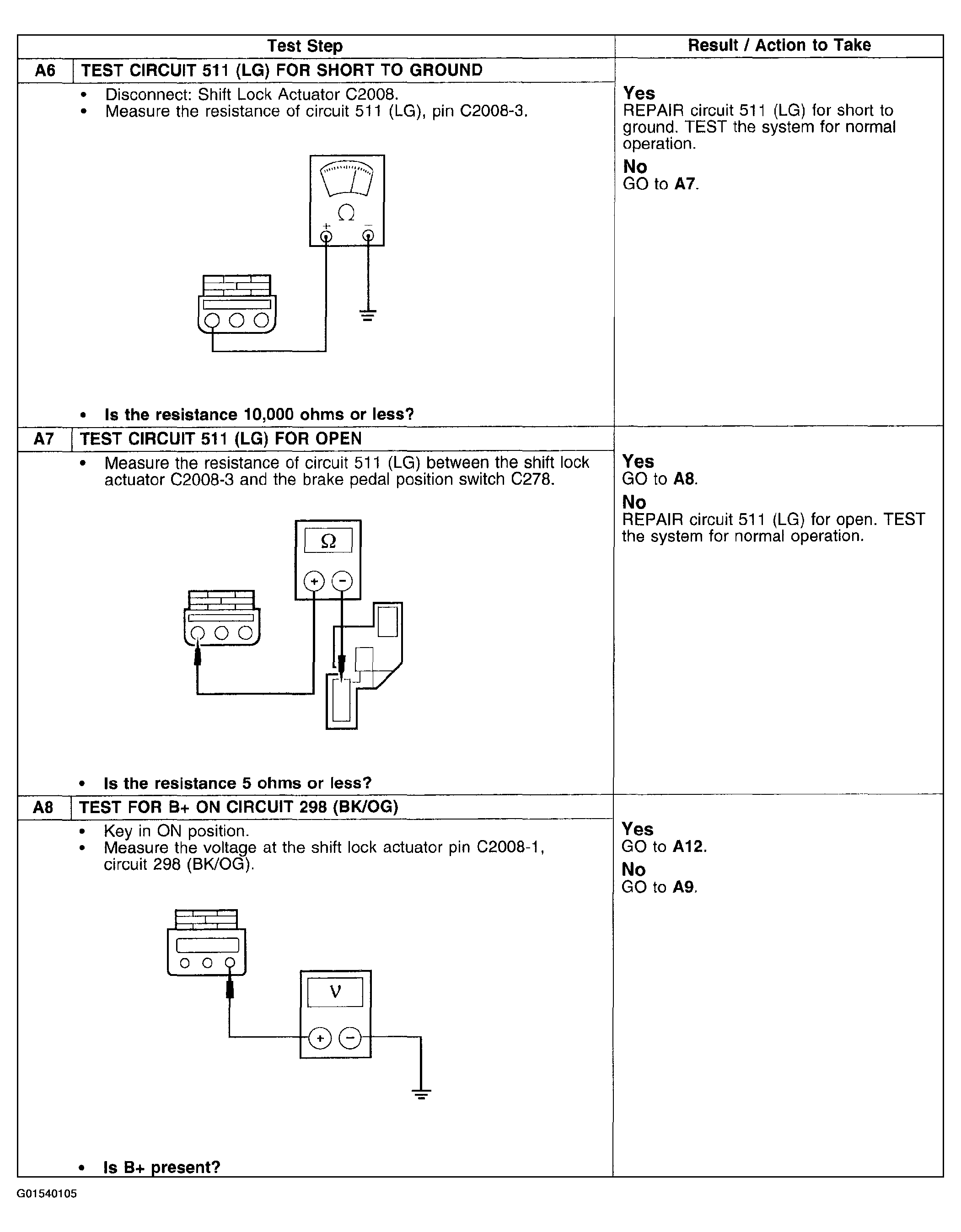

Fig 3: Identifying Pinpoint Test A: Shift Interlock System Does Not Release/Lock Correctly (A6-A8)
Courtesy of FORD MOTOR CO.
Fig 4: Identifying Pinpoint Test A: Shift Interlock System Does Not Release/Lock Correctly (A9-A11)
Courtesy of FORD MOTOR CO.

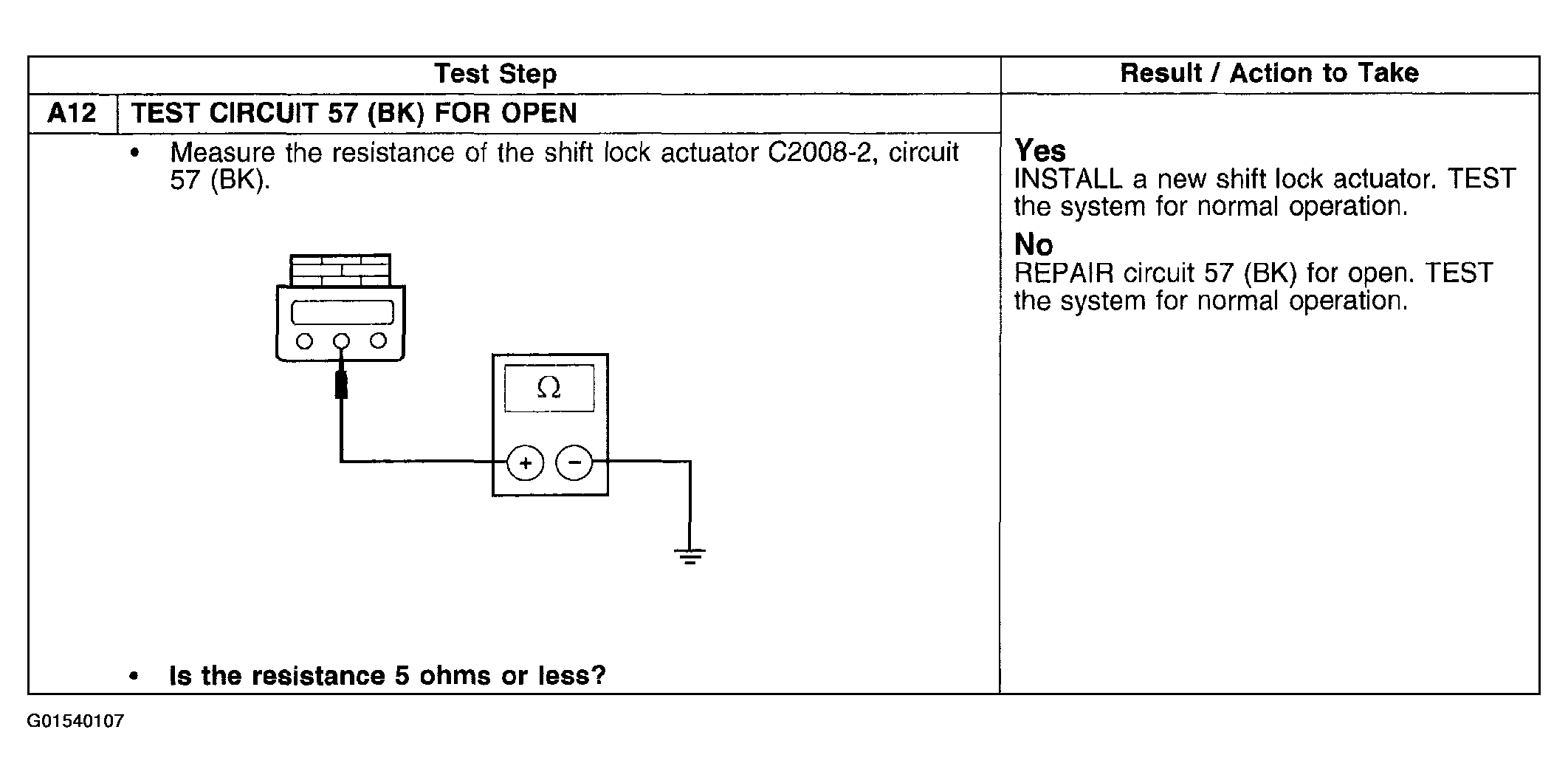

Fig 5: Identifying Pinpoint Test A: Shift Interlock System Does Not Release/Lock Correctly (A12)
