Pinpoint Test L: Temperature Control Is Inoperative/Does Not Operate Correctly - Manual Climate Control

WARNING: This page is about a different car, the 2003 Mercury Marauder, 2003 Mercury Grand Marquis, and 2003 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.

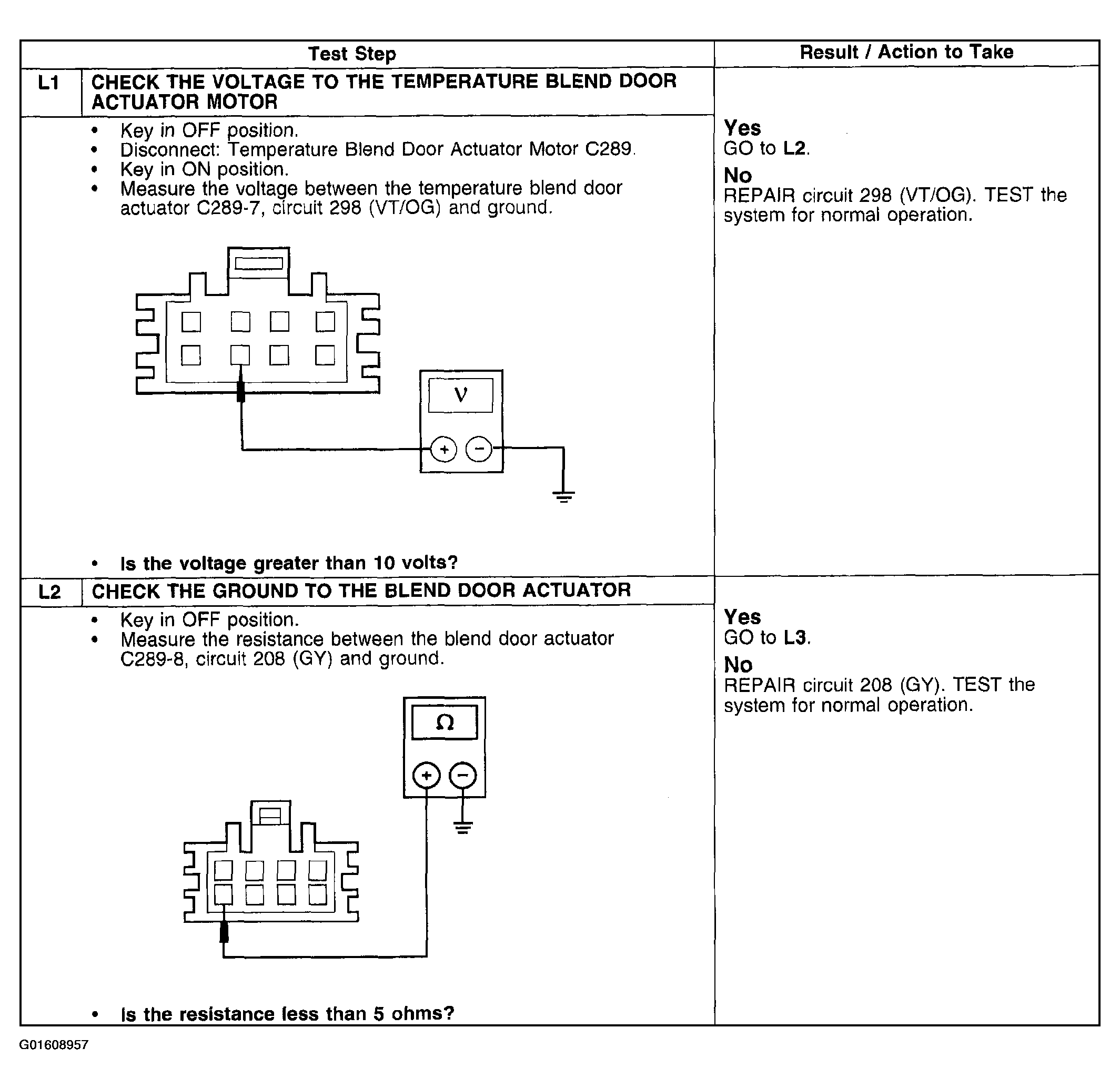

Fig 1: Pinpoint Test L: Temperature Control Is Inoperative/Does Not Operate Correctly - Manual Climate Control (L1-L2)
G01608957Courtesy of FORD MOTOR CO.

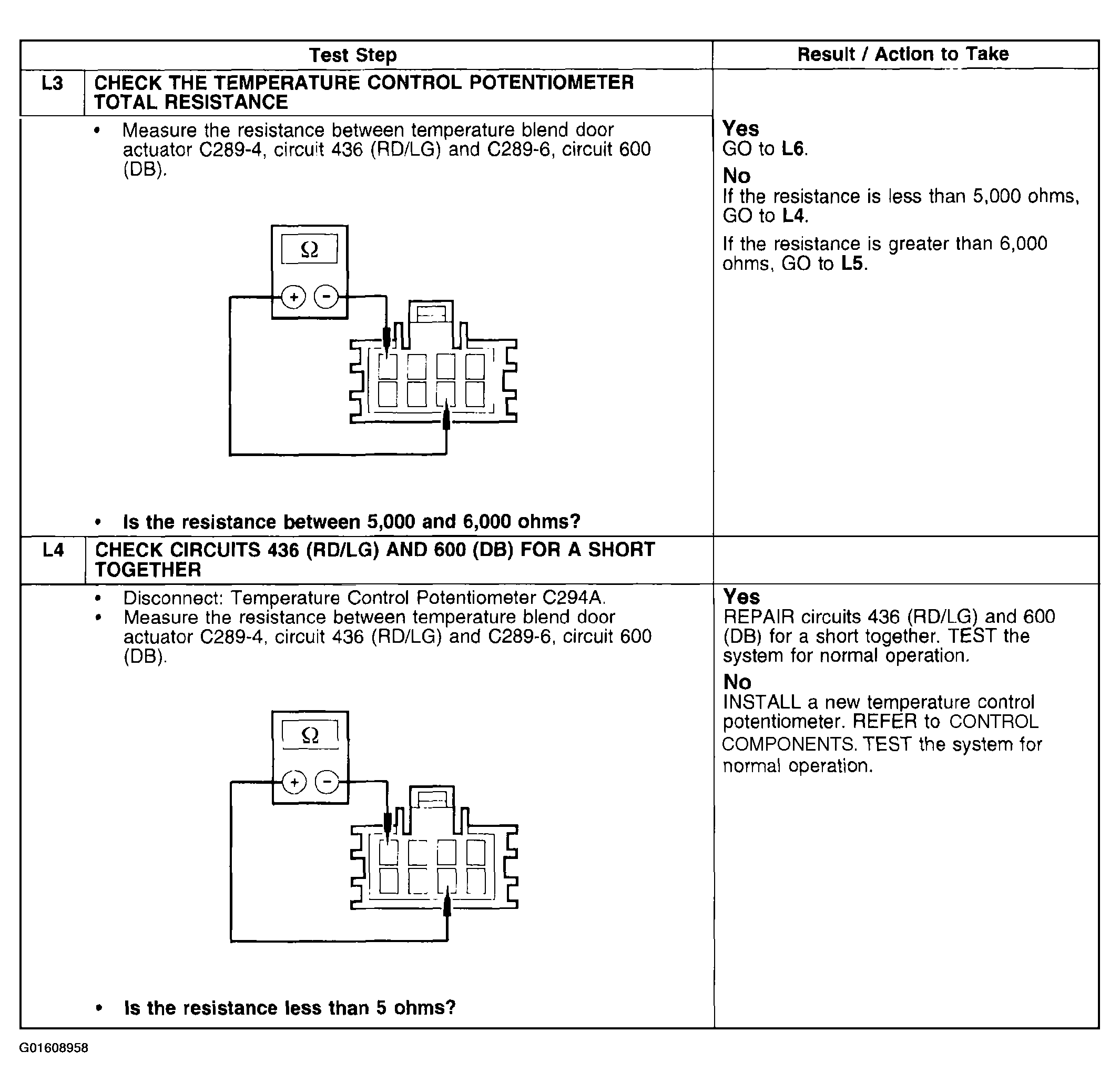

Fig 2: Pinpoint Test L: Temperature Control Is Inoperative/Does Not Operate Correctly - Manual Climate Control (L3-L4)
G01608958Courtesy of FORD MOTOR CO.

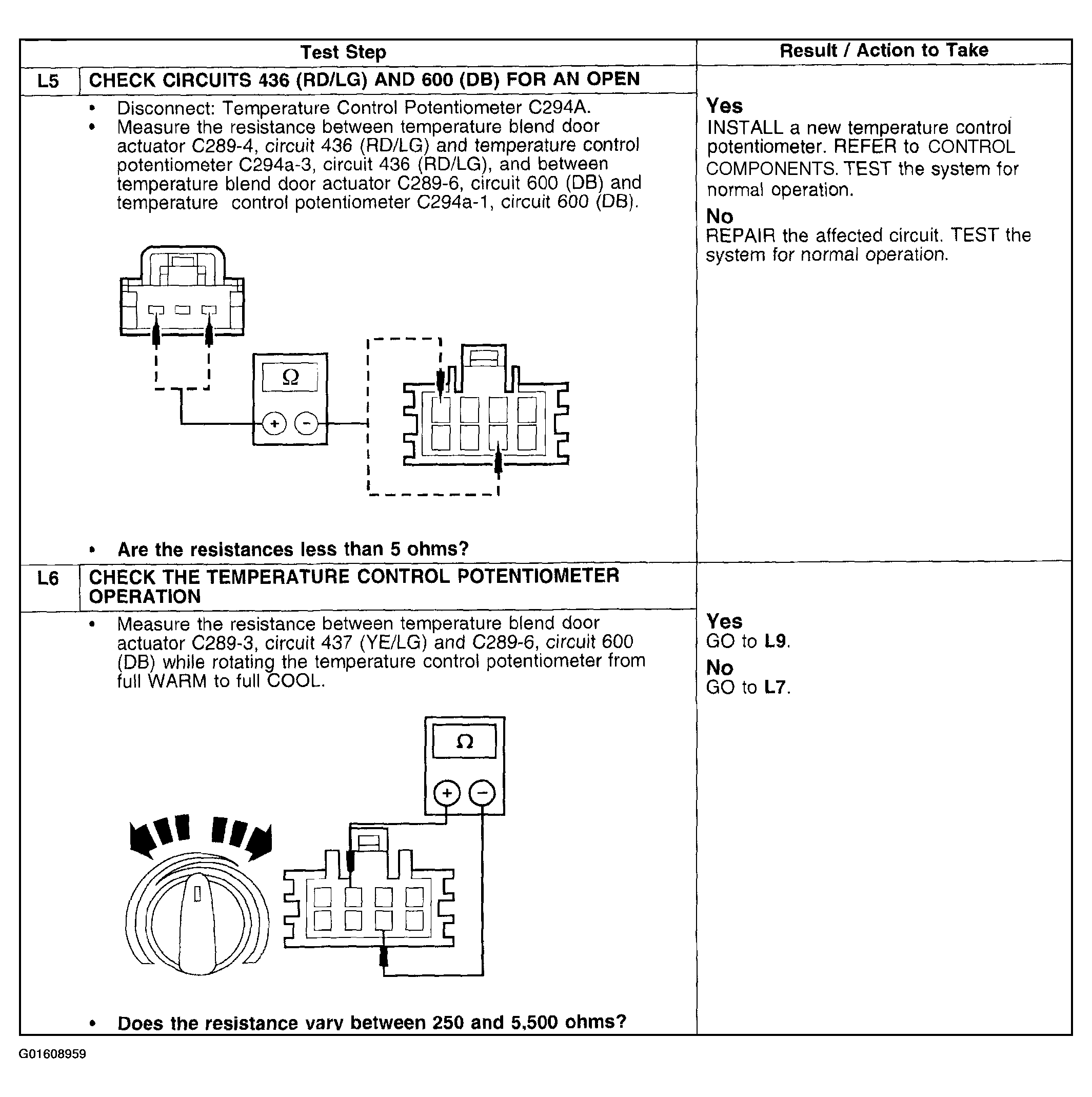

Fig 3: Pinpoint Test L: Temperature Control Is Inoperative/Does Not Operate Correctly - Manual Climate Control (L5-L6)
G01608959Courtesy of FORD MOTOR CO.

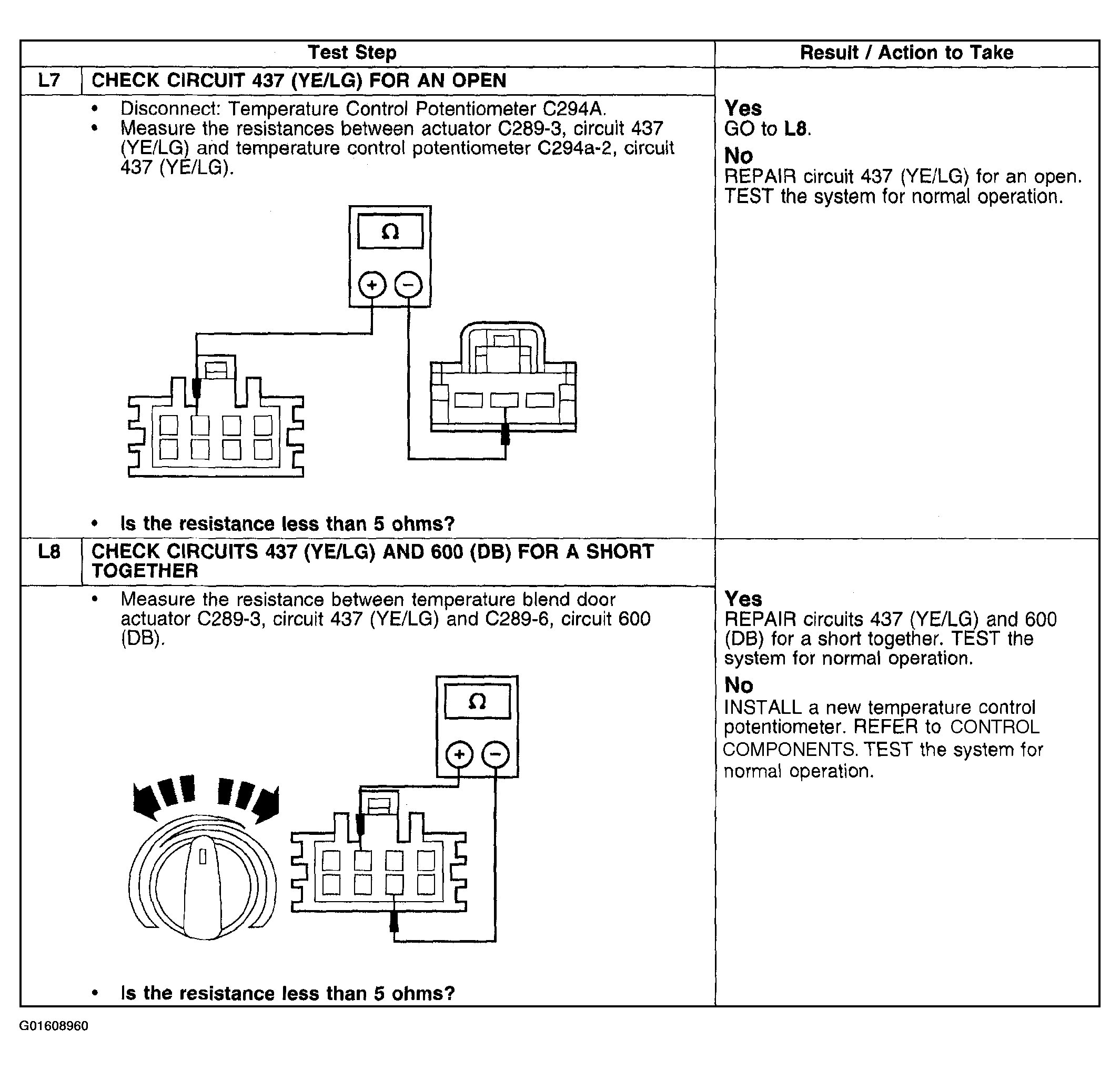

Fig 4: Pinpoint Test L: Temperature Control Is Inoperative/Does Not Operate Correctly - Manual Climate Control (L7-L8)
G01608960Courtesy of FORD MOTOR CO.

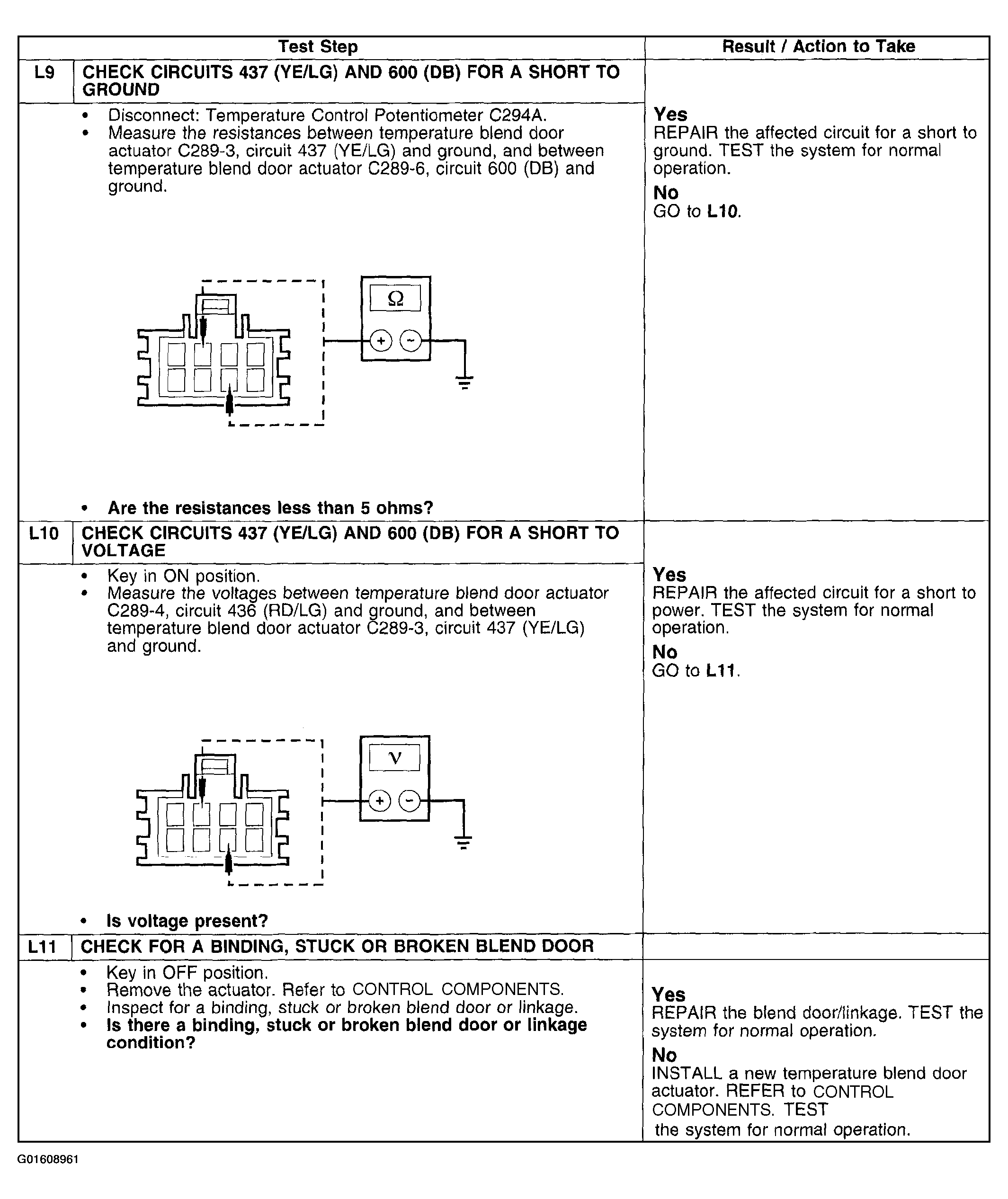

Fig 5: Pinpoint Test L: Temperature Control Is Inoperative/Does Not Operate Correctly - Manual Climate Control (L9-L11)
G01608961Courtesy of FORD MOTOR CO.
