Pinpoint Test A: Shift Interlock System Does Not Release/Lock Correctly - Column Shift

WARNING: This page is about a different car, the 2003 Mercury Marauder, 2003 Mercury Grand Marquis, and 2003 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.

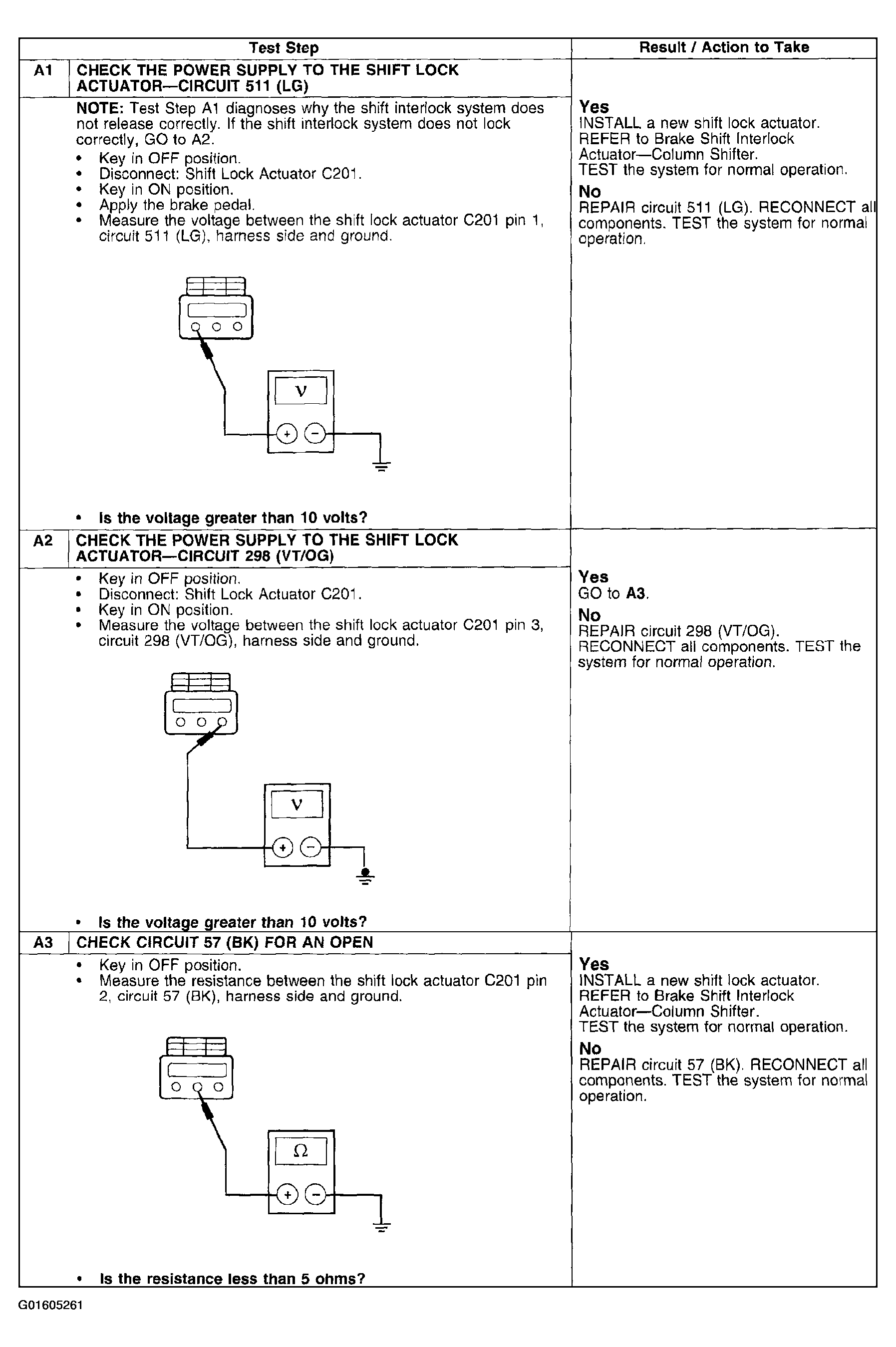

Fig 1: Pinpoint Test A: Shift Interlock System Does Not Release/Lock Correctly - Column Shift
G01605261Courtesy of FORD MOTOR CO.
