Pinpoint Test G: The Traction Control Is Inoperative/Cannot Be Disabled

CAUTION: The Flex Probe Kit must be used for all test connections. Use of standard multimeter probes may damage wiring terminals.

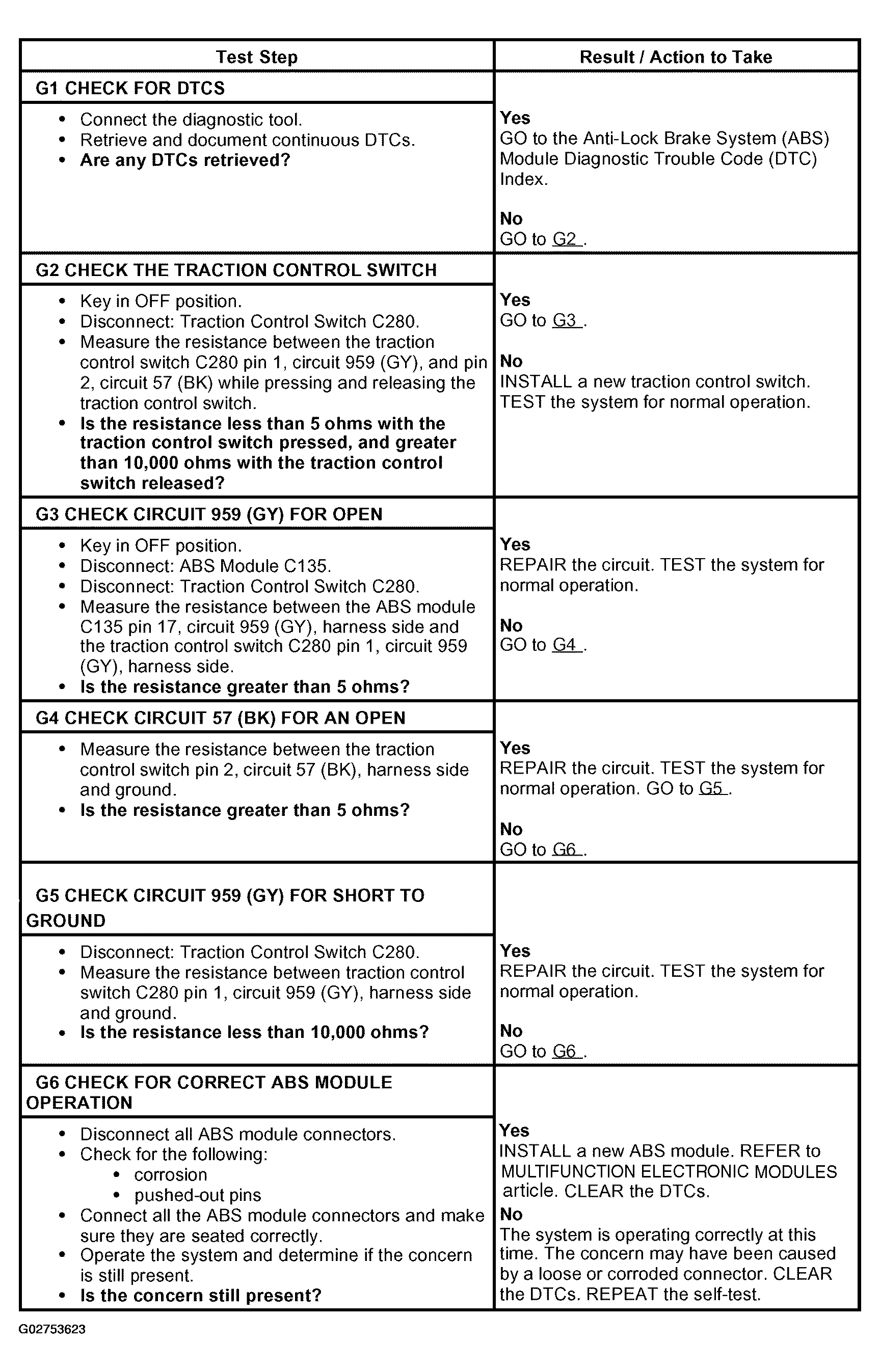

Fig 1: Pinpoint Test G: Traction Control Is Inoperative/Cannot Be Disabled
G02753623Courtesy of FORD MOTOR CO.
