Pinpoint Test E: No Communication With The Anti-Lock Brake System (Abs) Module

CAUTION: The Flex Probe Kit must be used for all test connections. Use of standard multimeter probes may damage wiring terminals.

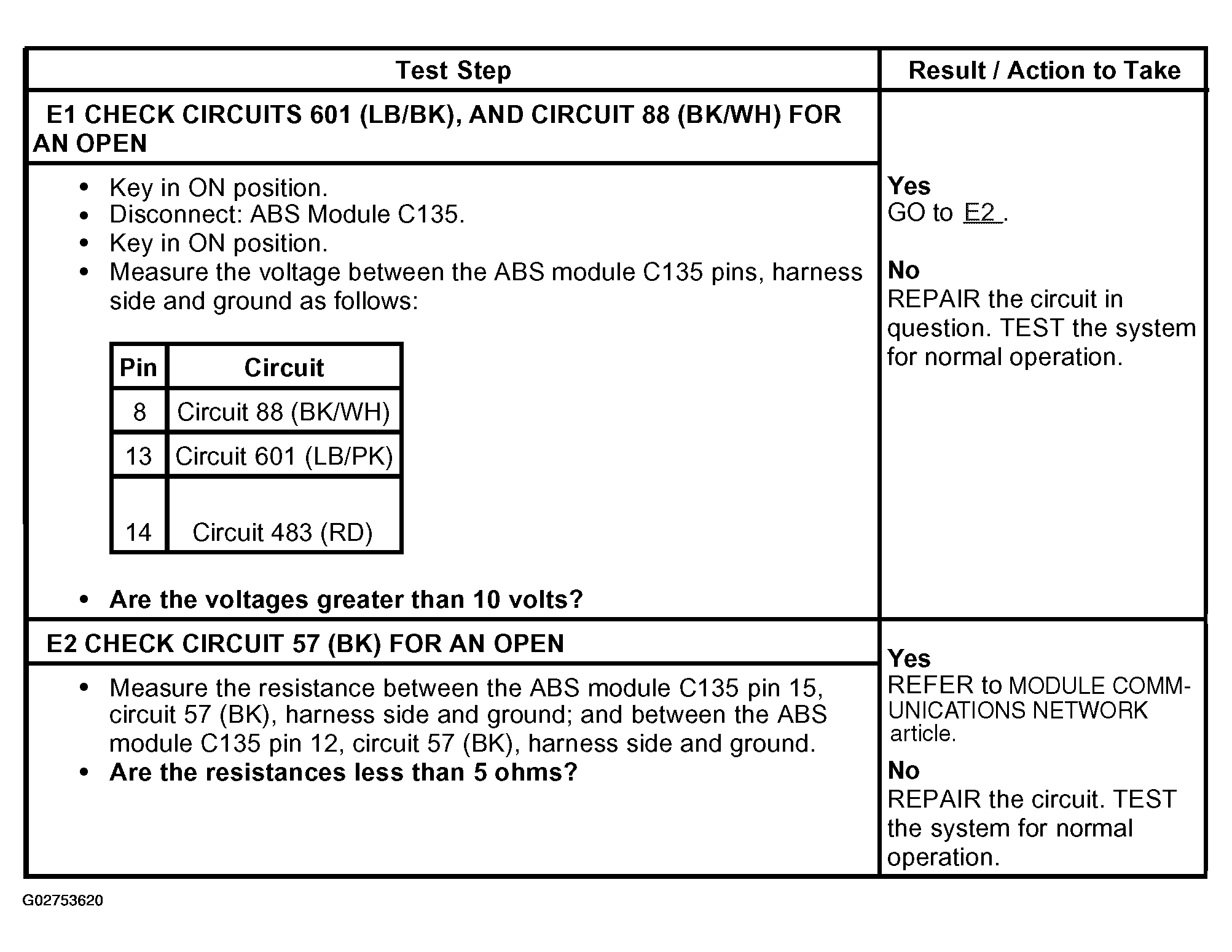

Fig 1: Pinpoint Test E: No Communication With Anti-Lock Brake System (ABS) Module
G02753620Courtesy of FORD MOTOR CO.
