Power window switch, RH side front
Power window switch, RH side front

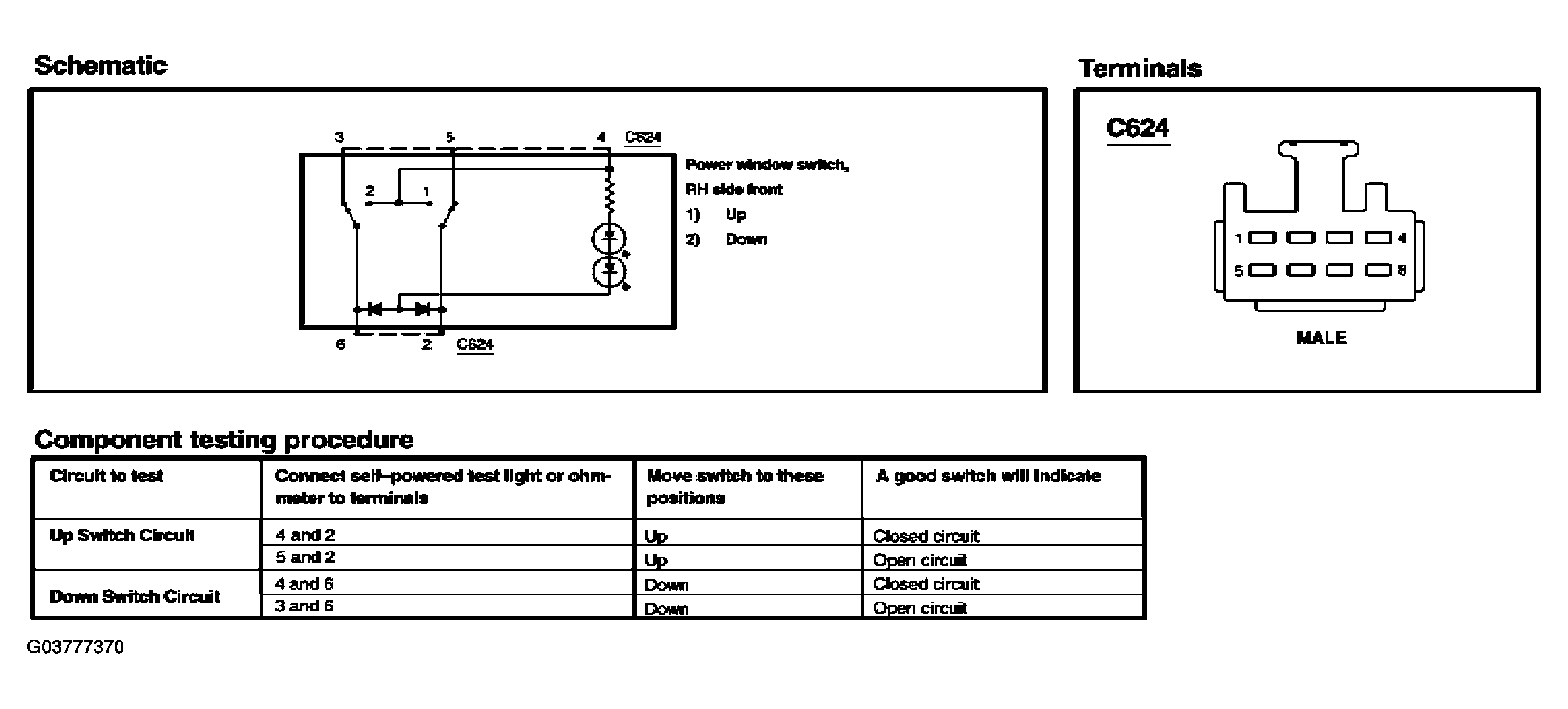

Fig 1: Testing Power Window Switch (RH Side Front)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
