Pinpoint Test B: The Key-In-Ignition Chime Does Not Operate Correctly

WARNING: This page is about a different car, the 2004 Mercury Marauder, 2004 Mercury Grand Marquis, and 2004 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.

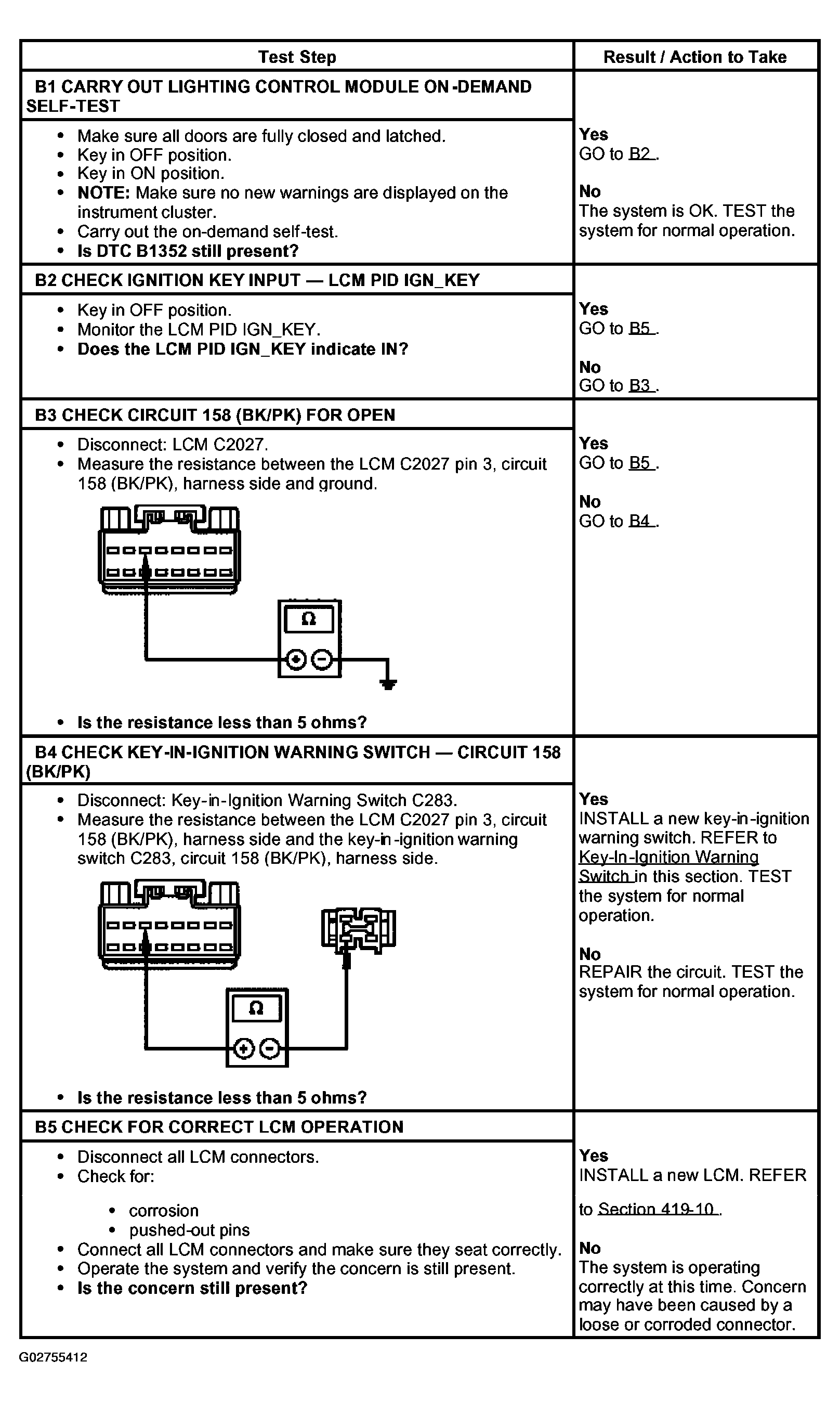

Fig 1: Pinpoint Test B Key-In-Ignition Chime Does Not Operate Correctly (B1-B5)
G02755412Courtesy of FORD MOTOR CO.
