Removal and Installation

WARNING: This page is about a different car, the 2004 Mercury Marauder, 2004 Mercury Grand Marquis, and 2004 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the finish panel.
    Fig 1: Removing Finish Panel
    G02755201Courtesy of FORD MOTOR CO.
  2. Disconnect the connector.

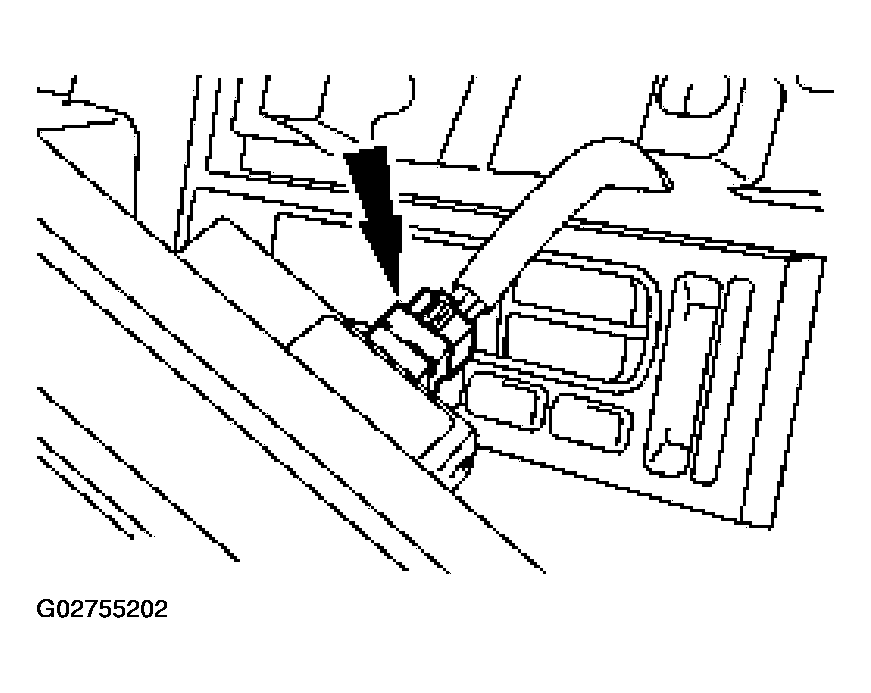

    Fig 2: Disconnecting Connector
    G02755202Courtesy of FORD MOTOR CO.
  3. Remove the screws and pull the control assembly away from the instrument panel.

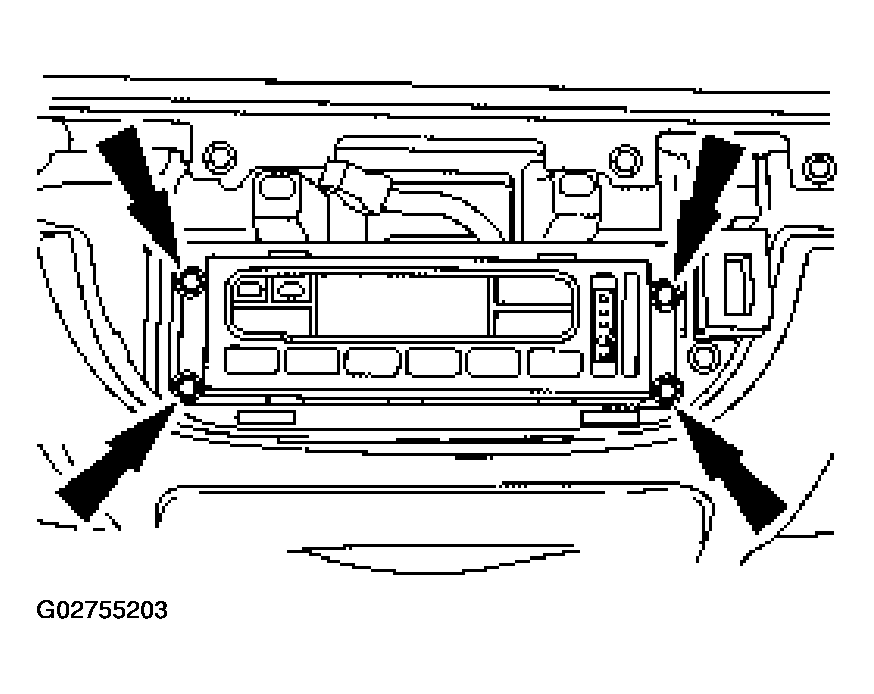

    Fig 3: Removing Screws And Control Assembly Away From Instrument Panel
    G02755203Courtesy of FORD MOTOR CO.
  4. Remove the screws and position the in-vehicle temperature sensor to access the connector.
    Fig 4: Removing Screws And In-Vehicle Temperature Sensor
    G02755204Courtesy of FORD MOTOR CO.
  5. Disconnect the connector.

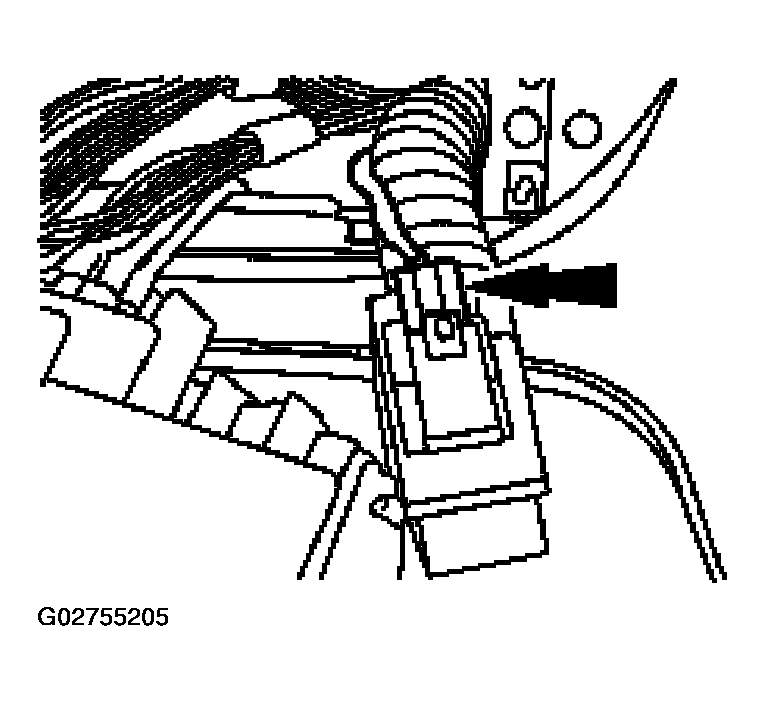

    Fig 5: Disconnecting Connector
    G02755205Courtesy of FORD MOTOR CO.
  6. Disconnect the hose and remove the in-vehicle temperature sensor.

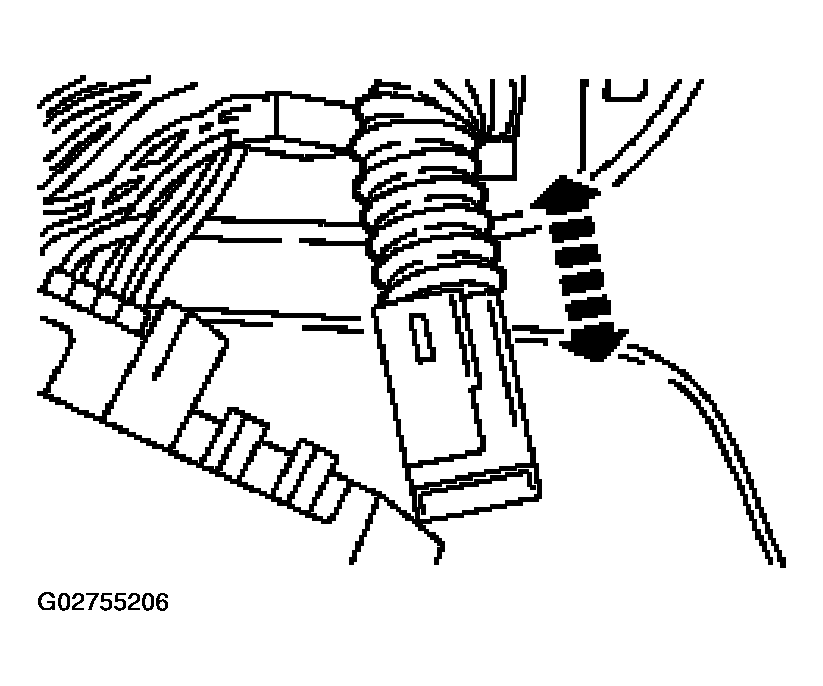

    Fig 6: Disconnecting Hose And In-Vehicle Temperature Sensor
    G02755206Courtesy of FORD MOTOR CO.
  7. To install, reverse the removal procedure.
