Driver Power Seat Control Switch With Memory C3016

WARNING: This page is about a different car, the 2003 Mercury Mountaineer and 2003 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

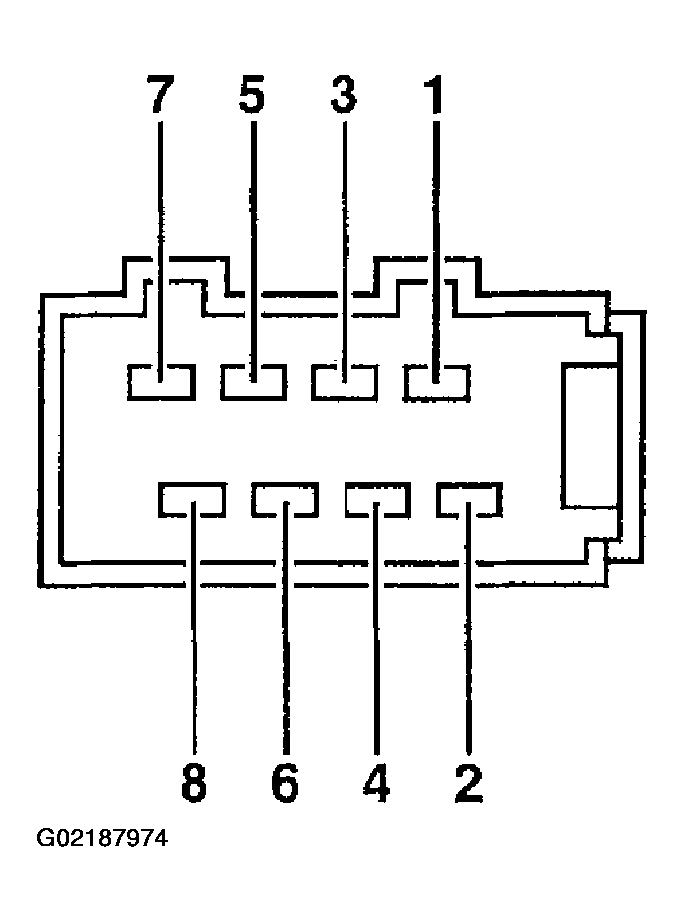

Fig 1: Identifying Driver Power Seat Control Switch With Memory C3016 Connector Pinouts
G02187974Courtesy of FORD MOTOR CO.

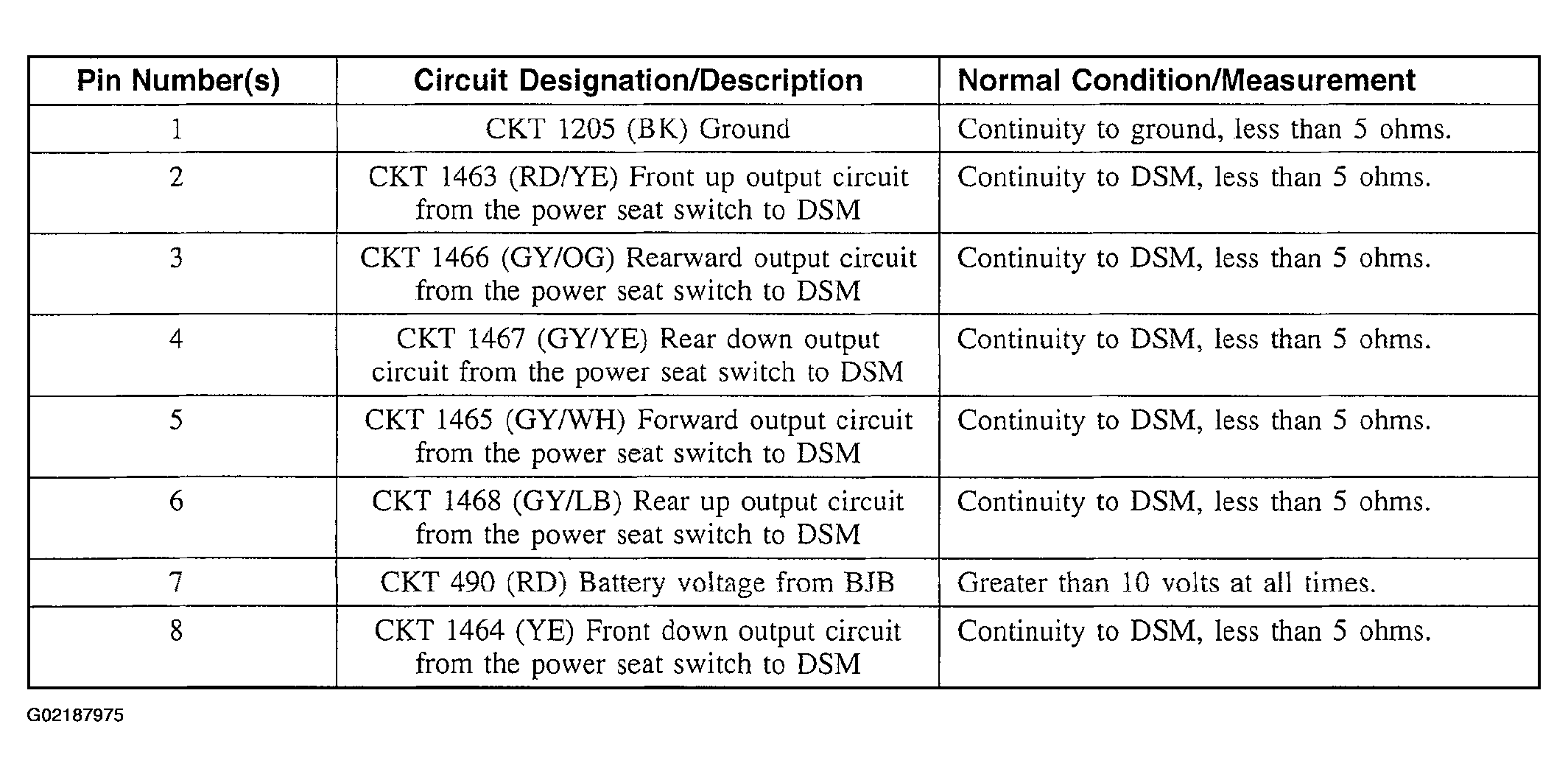

Fig 2: Driver Power Seat Control Switch With Memory C3016 Connector Pins Reference Table
G02187975Courtesy of FORD MOTOR CO.
