Removal and Installation: Notes

WARNING: This page is about a different car, the 2003 Mercury Mountaineer and 2003 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the driver door trim panel. For additional information, refer to BODY SYSTEM - INTERIOR .
  2. Position the watershield aside.
  3. Remove the components in the order indicated in the following illustration and table.

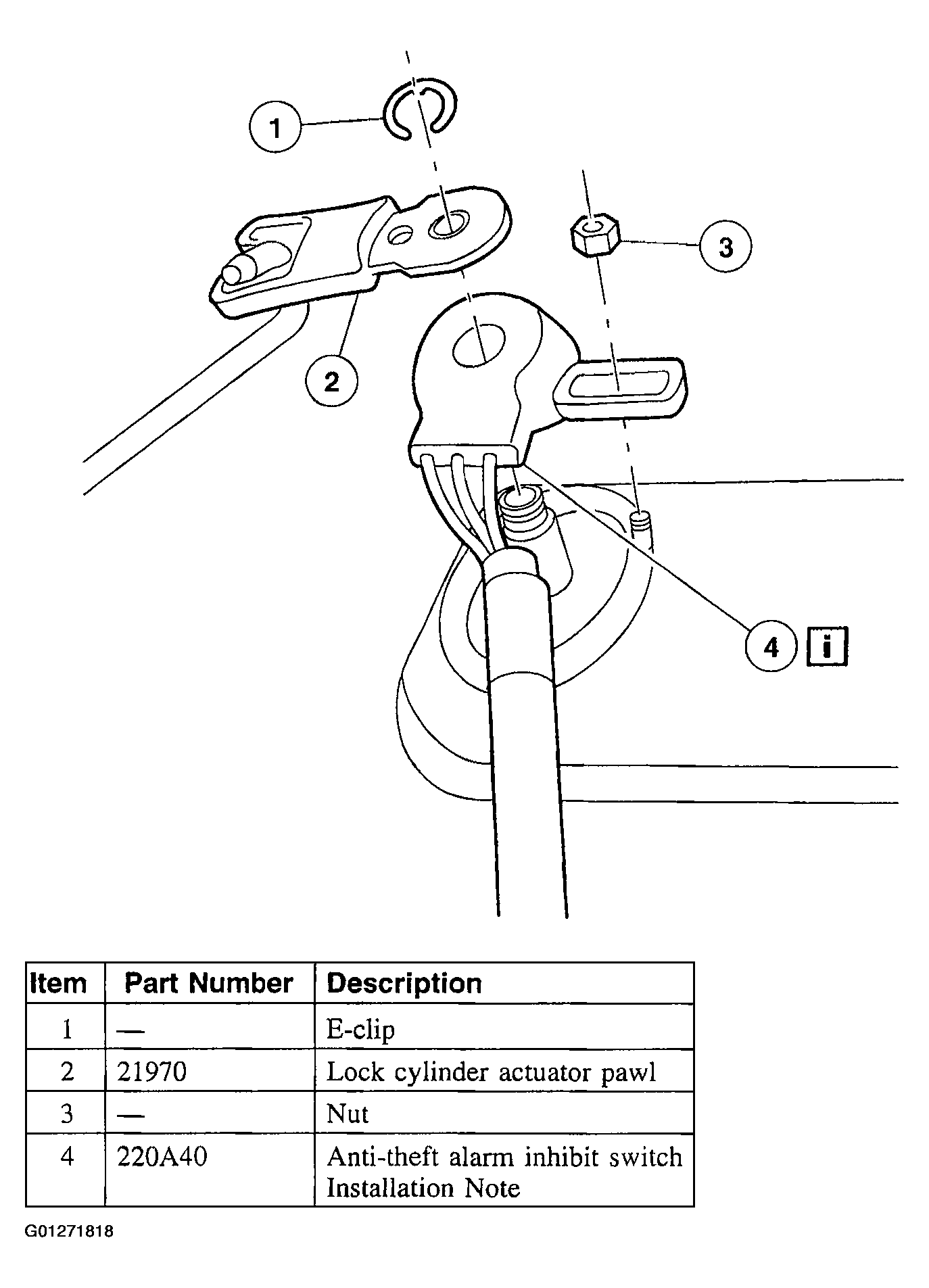

    Fig 1: Removal Order Of Anti-Theft Alarm Inhibit Switch
    G01271818Courtesy of FORD MOTOR CO.
  4. To install, reverse the removal procedure.
