Instrument Cluster C220b

WARNING: This page is about a different car, the 2003 Mercury Mountaineer and 2003 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Identifying Instrument Cluster Connector Terminals (C220B)
G01271681Courtesy of FORD MOTOR CO.

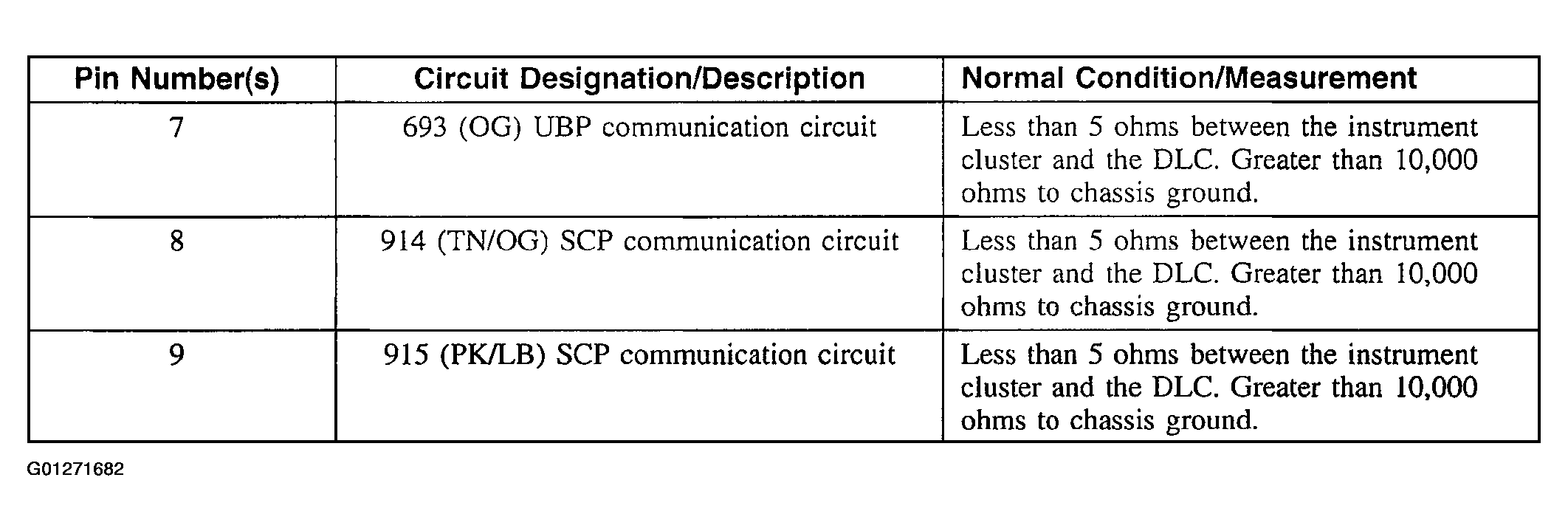

Fig 2: Instrument Cluster Connector Terminals Reference Chart (C220B)
G01271682Courtesy of FORD MOTOR CO.
