In-line C263M, C263F

WARNING: This page is about a different car, the 2003 Mercury Mountaineer and 2003 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

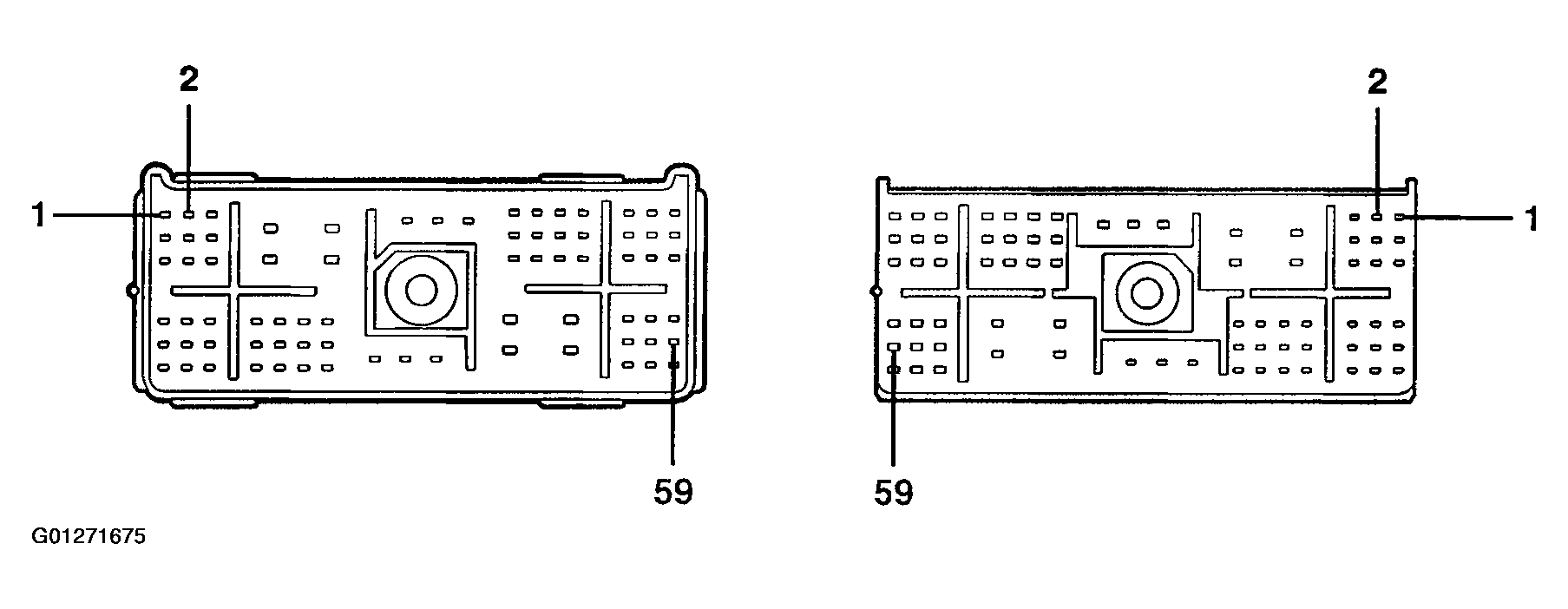

Fig 1: Identifying In-Line Connector Terminals C263M, C263F
G01271675Courtesy of FORD MOTOR CO.

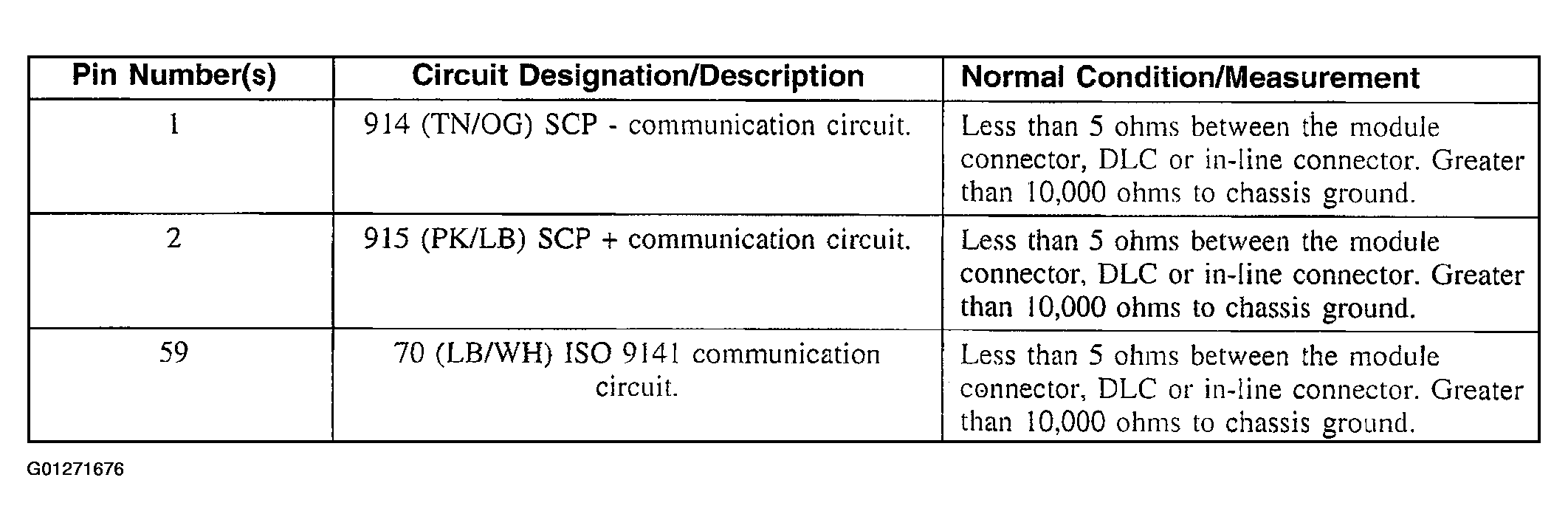

Fig 2: In-Line Connector Terminals Reference Chart C263M, C263F
G01271676Courtesy of FORD MOTOR CO.
