Pinpoint Test U: The Panel/Floor Control Is Inoperative Using The Front Auxiliary Climate Controls: Testing

WARNING: This page is about a different car, the 2003 Mercury Mountaineer and 2003 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

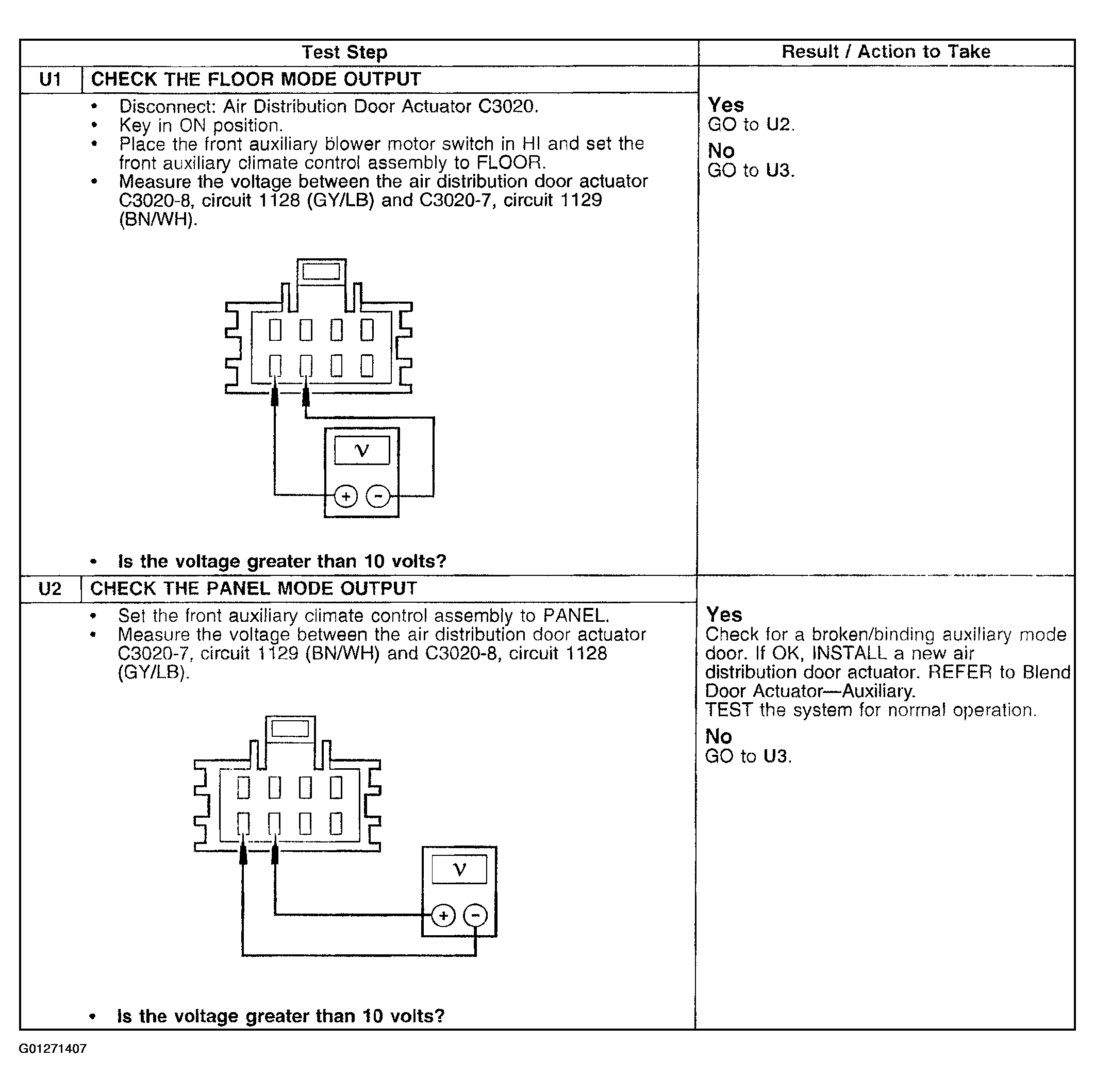

Fig 1: Pinpoint Test U: Panel/Floor Control Is Inoperative Using Front Auxiliary Climate Controls (U1 - U2)
G01271407Courtesy of FORD MOTOR CO.

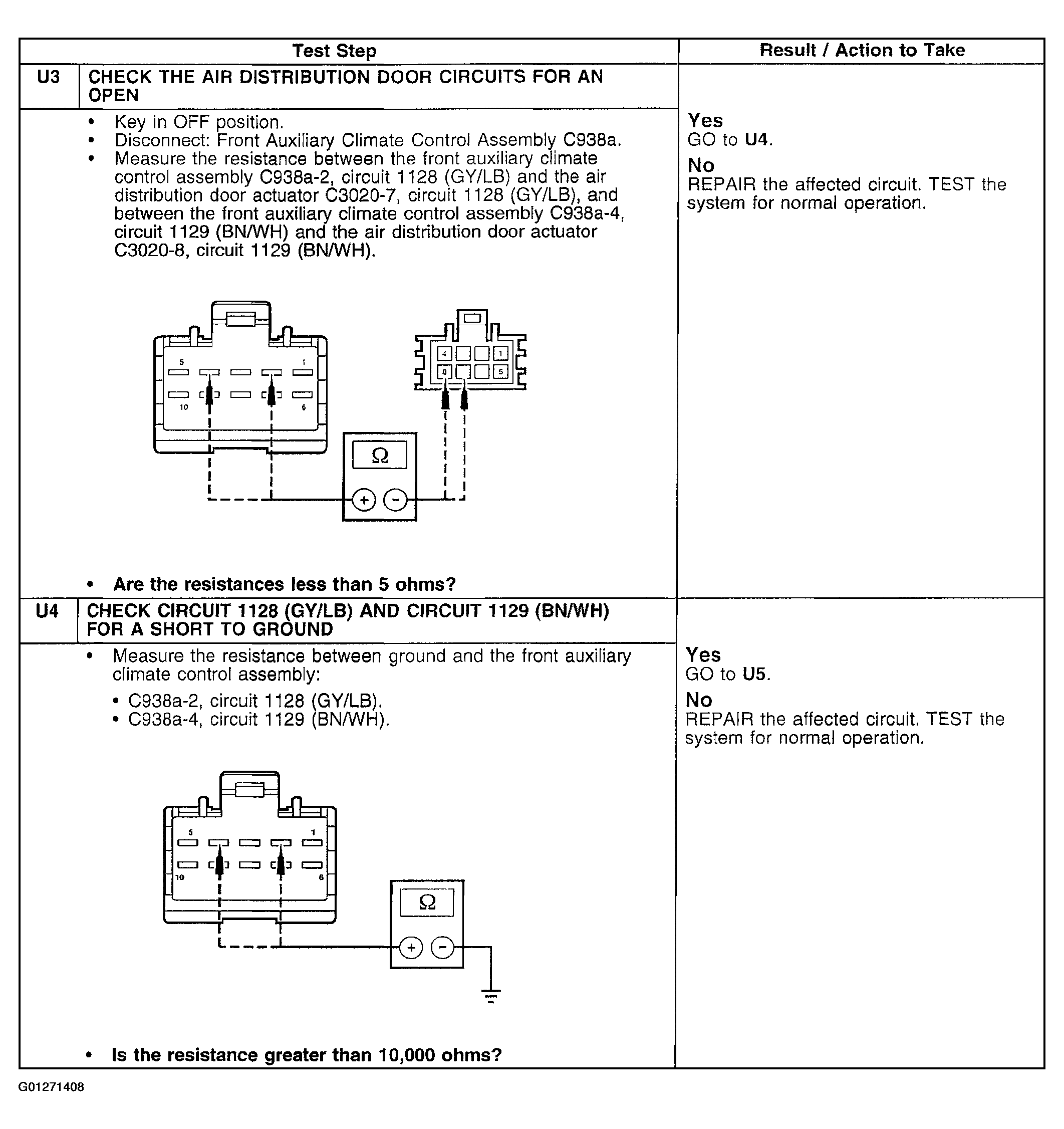

Fig 2: Pinpoint Test U: Panel/Floor Control Is Inoperative Using Front Auxiliary Climate Controls (U3 - U4)
G01271408Courtesy of FORD MOTOR CO.

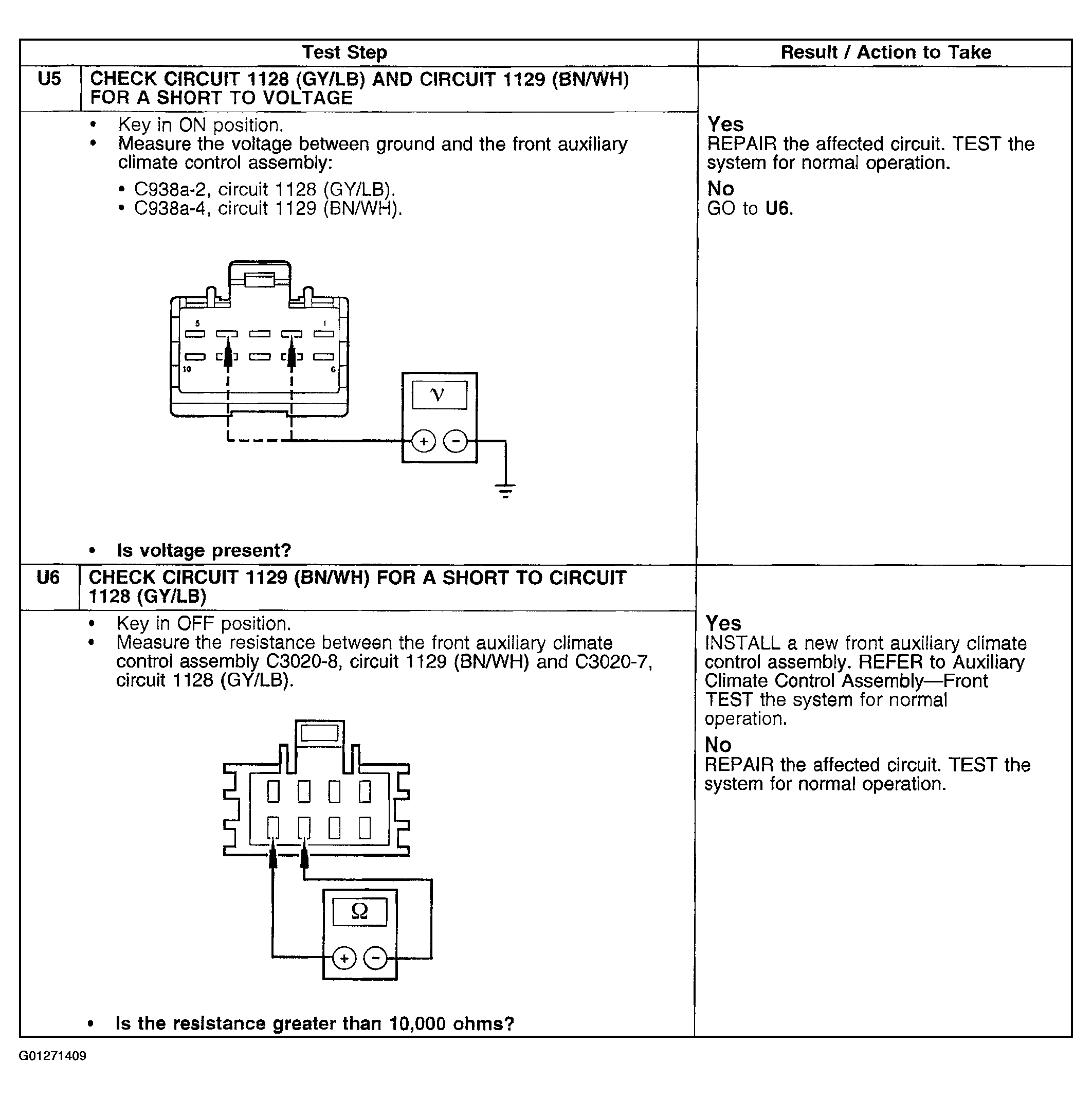

Fig 3: Pinpoint Test U: Panel/Floor Control Is Inoperative Using Front Auxiliary Climate Controls (U5 - U6)
G01271409Courtesy of FORD MOTOR CO.
