RF Wheel Speed Sensor C160

WARNING: This page is about a different car, the 2003 Mercury Mountaineer and 2003 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Identifying RF Wheel Speed Sensor C160 Connector Pin(s)
G01270587Courtesy of FORD MOTOR CO.

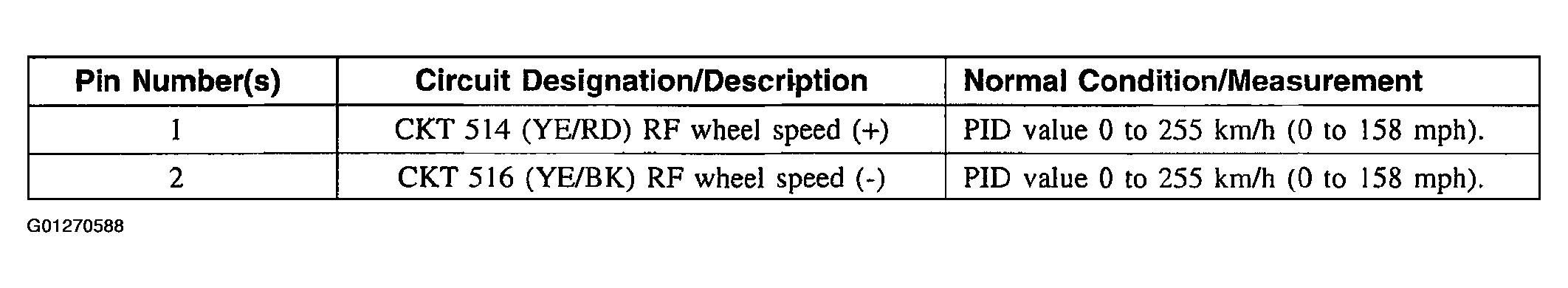

Fig 2: Identifying RF Wheel Speed Sensor C160 Connector Pin Reference Table
G01270588Courtesy of FORD MOTOR CO.
