Driver Seat Module - C341f

WARNING: This page is about a different car, the 2003 Mercury Mountaineer and 2003 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Identifying Driver Seat Module - C341f Connector Pin(s)
G01270477Courtesy of FORD MOTOR CO.

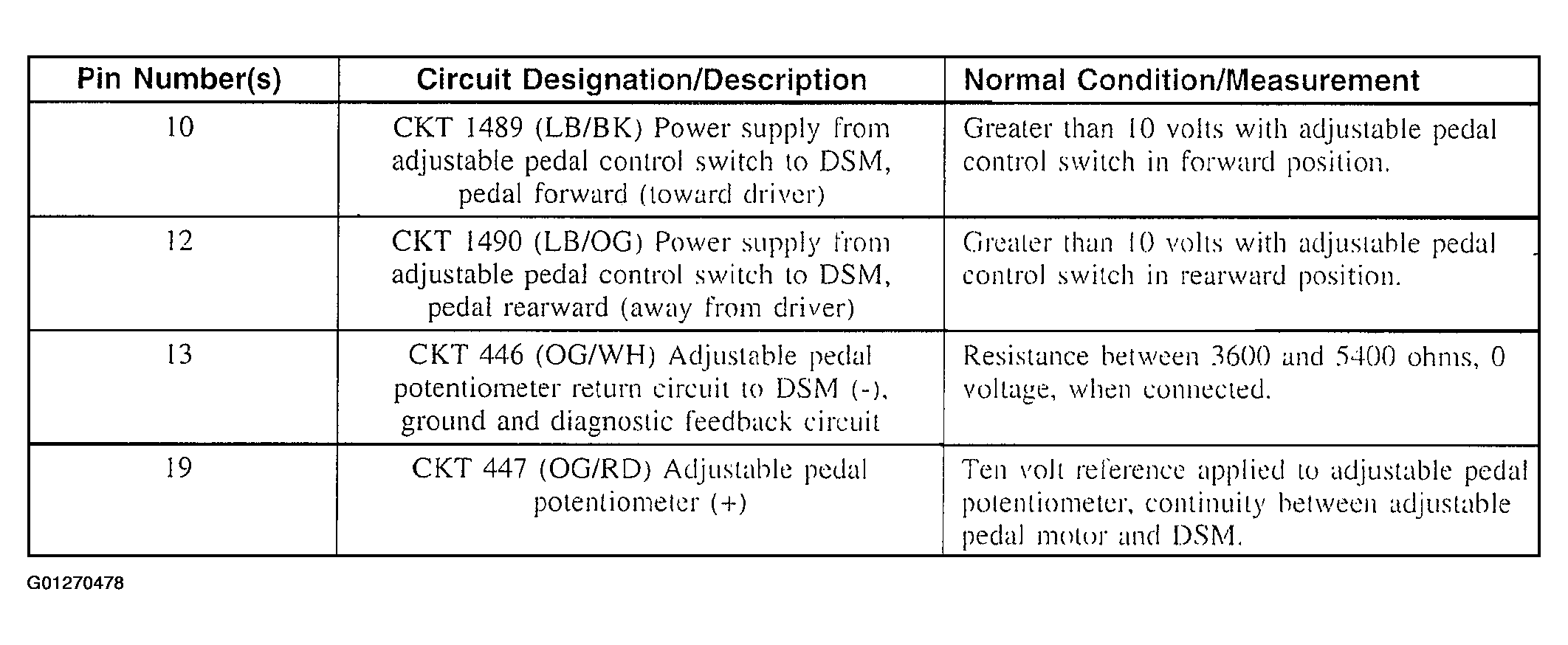

Fig 2: Identifying Driver Seat Module - C341f Connector Pin(s) Reference Table
G01270478Courtesy of FORD MOTOR CO.
