Disassembly & Assembly: Notes

WARNING: This page is about a different car, the 2003 Mercury Mountaineer and 2003 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the differential case from the differential housing. For additional information, refer to REAR AXLE ASSEMBLY .
  2. Disassemble the components in the order indicated in the following illustration and table.
  3. To assemble, reverse the disassembly procedure.

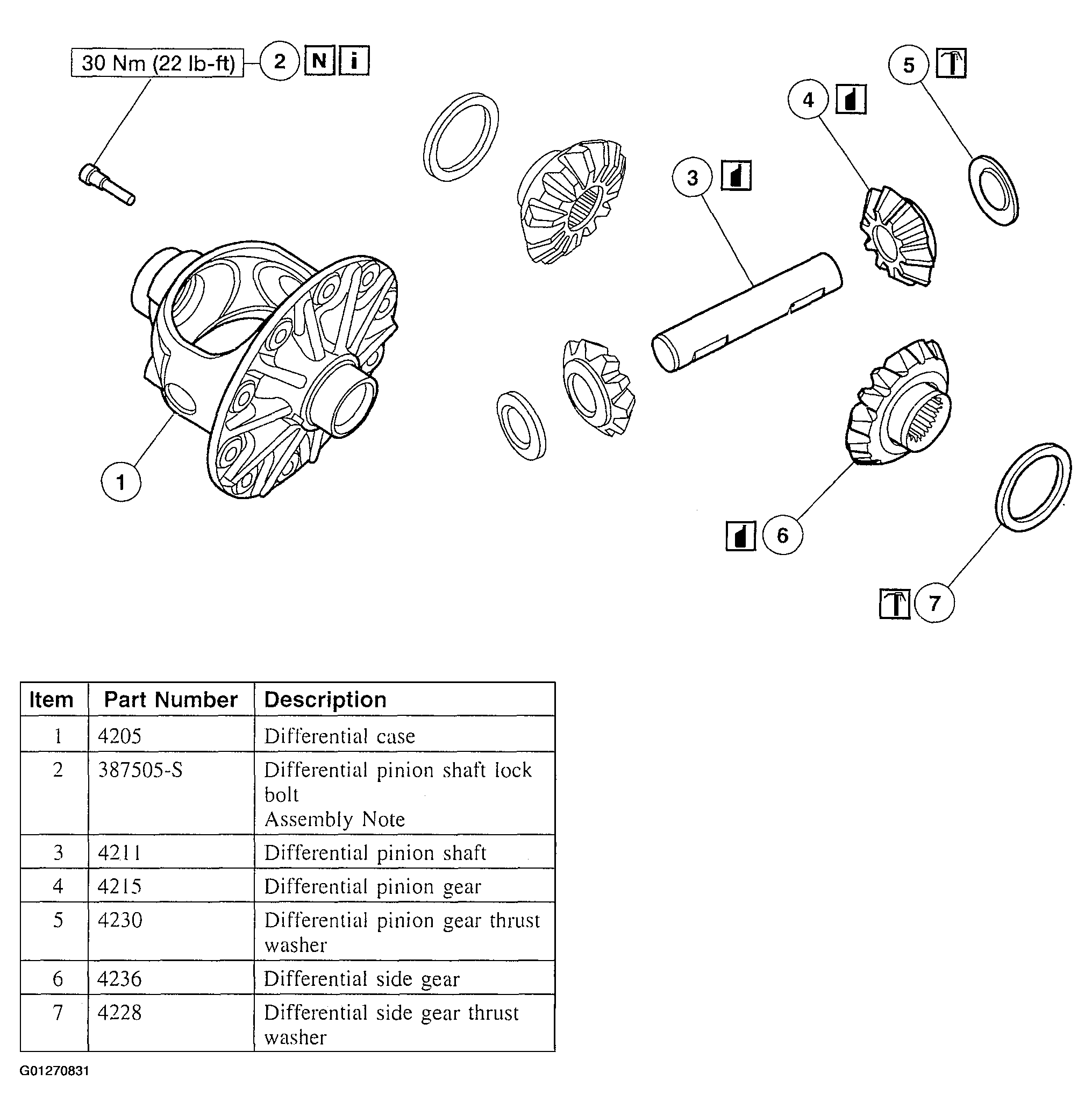

    Fig 1: Exploded View Of Rear Axle Differential Case Components
    G01270831Courtesy of FORD MOTOR CO.
  4. To assemble, reverse the disassembly procedure.
