Pinpoint Test B: Unable To Enter Self-Test

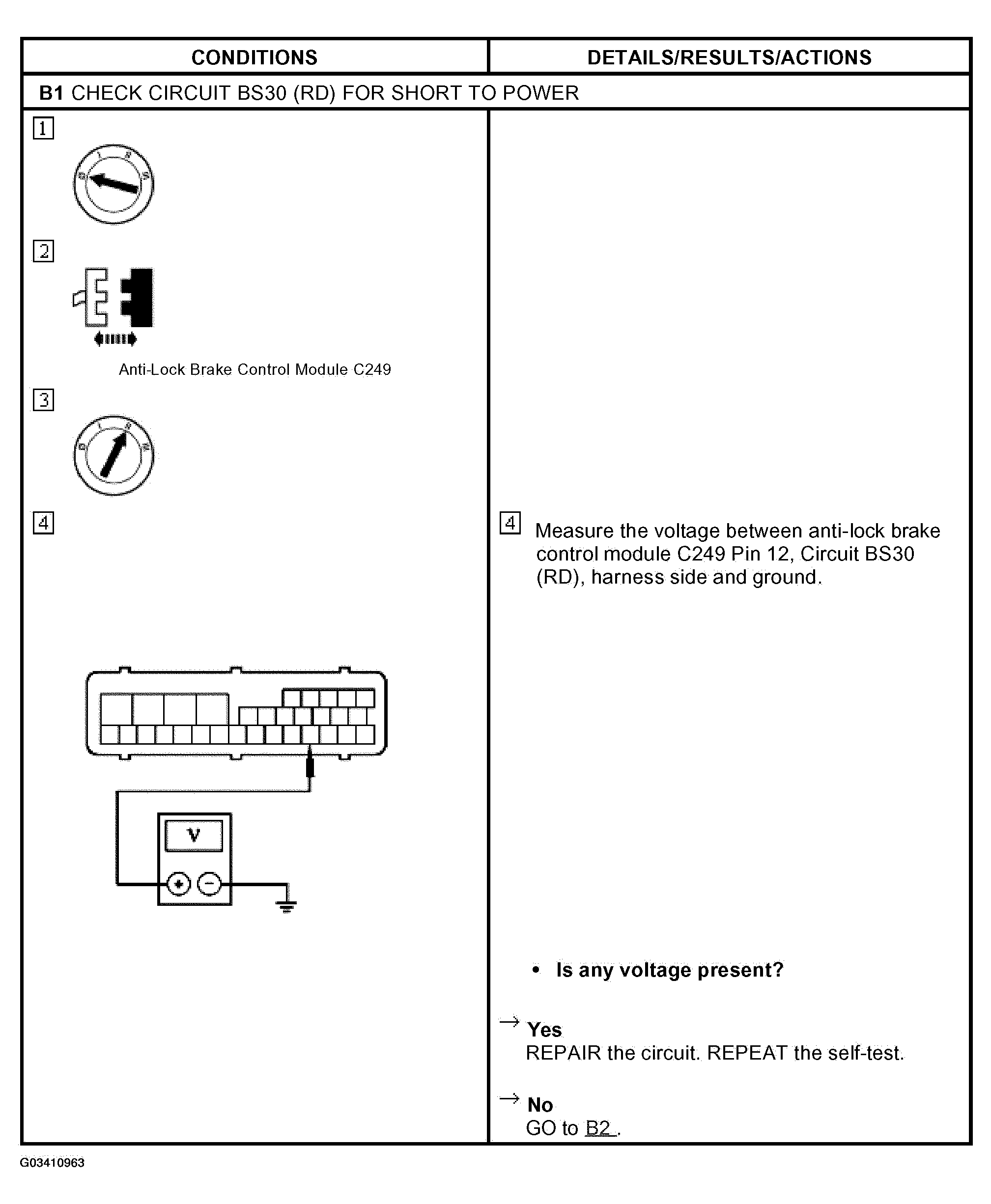

Fig 1: Pinpoint Test B: Unable To Enter Self-Test (B1)
G03410963Courtesy of FORD MOTOR CO.

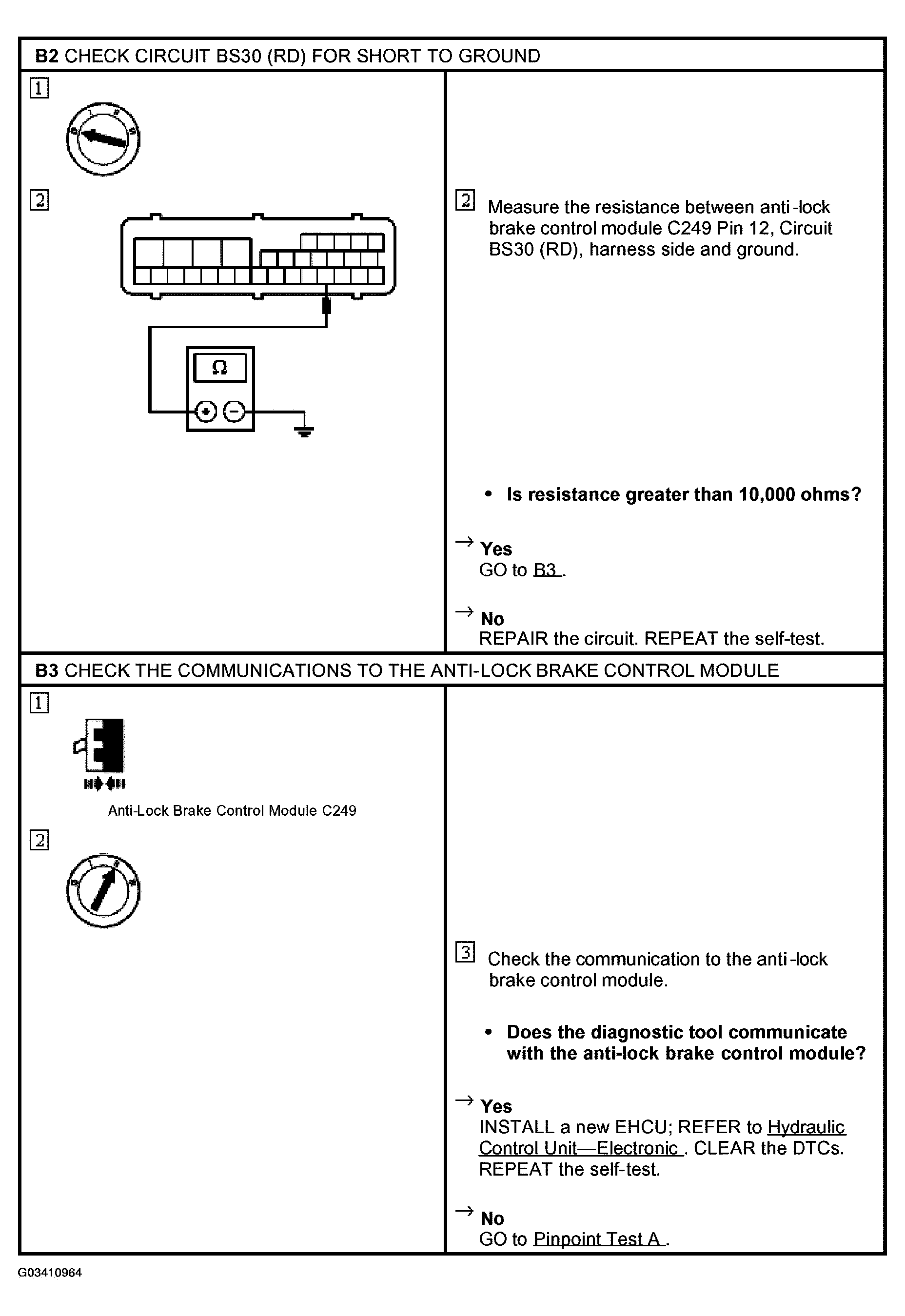

Fig 2: Pinpoint Test B: Unable To Enter Self-Test (B2-B3)
G03410964Courtesy of FORD MOTOR CO.
