Temperature Control Cable: Removal

WARNING: This page is about a different car, the 2002 Saturn LW300, 2002 Saturn LW200, 2002 Saturn L300, 2002 Saturn L200, and 2002 Saturn L100. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove HVAC control head. See HVAC CONTROL HEAD  .

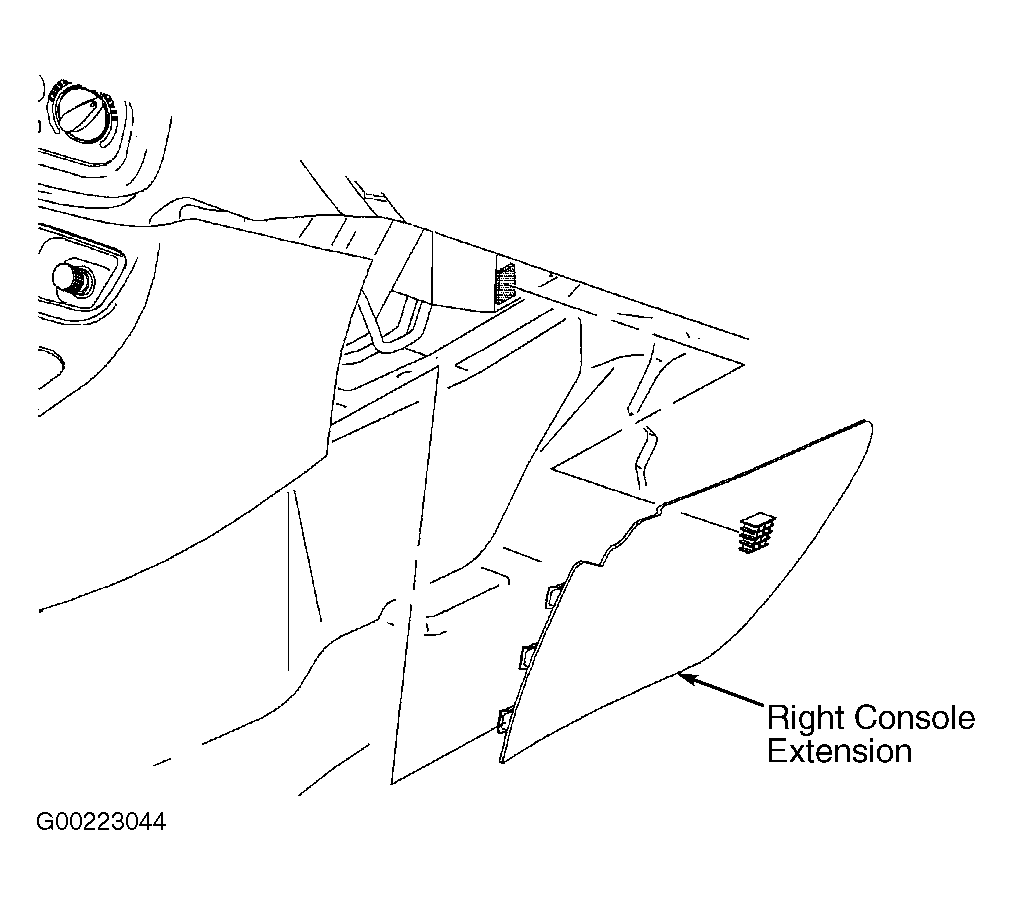

  2. Remove right side console extension. See Figure .
  3. Remove temperature cable from module retaining clip using first 2 fingers to pull outward on the cable while using the thumb to spread retaining clip. Remove cable from temperature door lever by squeezing the end of the pin and pulling cable eyelet outward. See Figure .
