Wiper Blade and Pivot Arm Adjustment -Rear

  1. Cycle and park the rear wiper motor.
  2. Verify that the distance between the bottom of the wiper blade and the bottom of the back window glass is within specification.

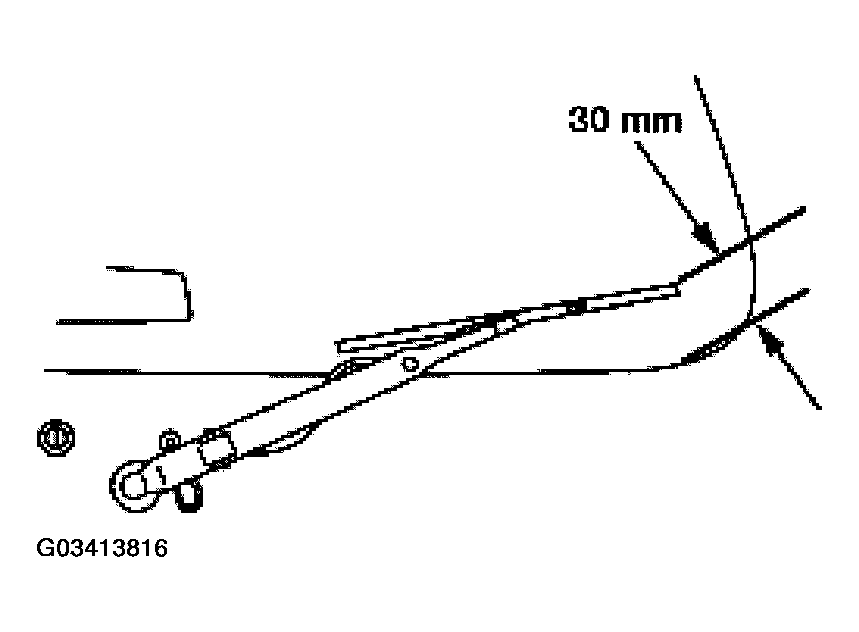

    Fig 1: Checking Distance Between Bottom Of Wiper Blade And Bottom Of Back Window Glass
    G03413816Courtesy of FORD MOTOR CO.
  3. If the distance is not within specification, remove wiper pivot arm and reposition to specification.
