Switch - Speed Control Actuator: Removal

  1. Remove the speed control actuator switch cover.

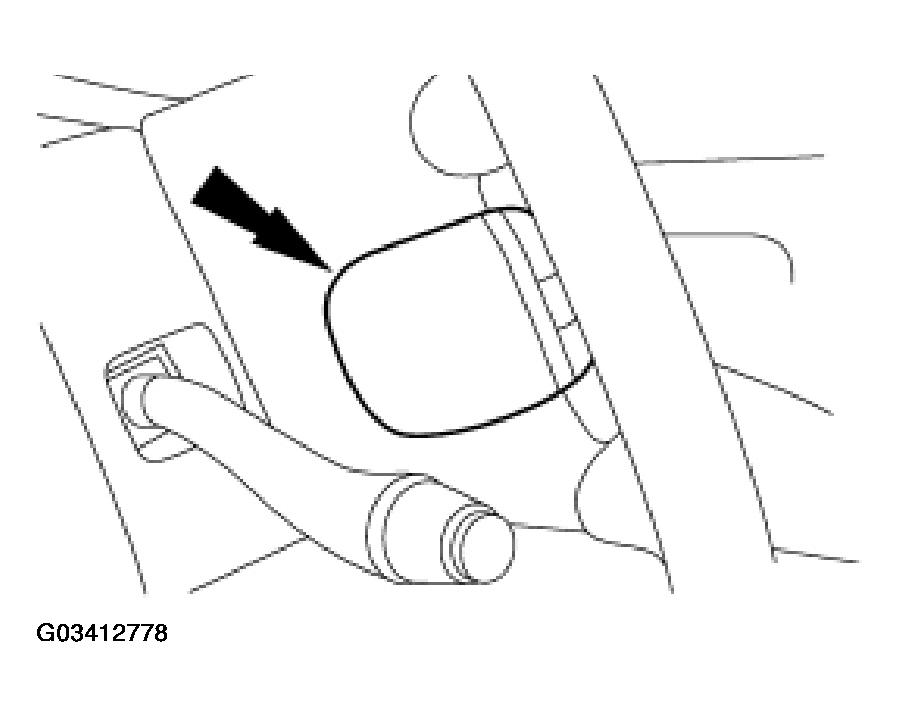

    Fig 1: Removing Speed Control Actuator Switch Cover
    G03412778Courtesy of FORD MOTOR CO.
  2. Remove the speed control actuator switch.
    • Remove the screws.

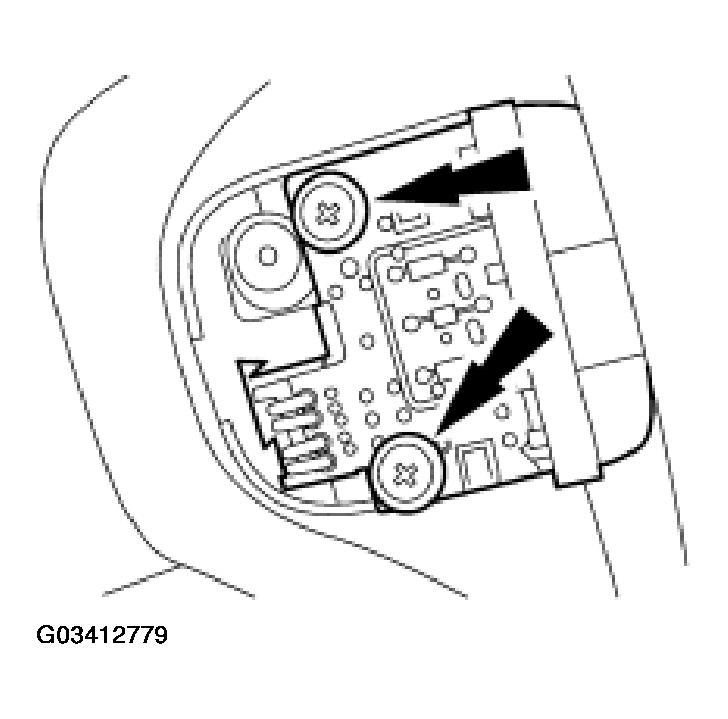

      Fig 2: Removing Speed Control Actuator Switch
      G03412779Courtesy of FORD MOTOR CO.
