Pinpoint Test B: The Set Speed Fluctuates

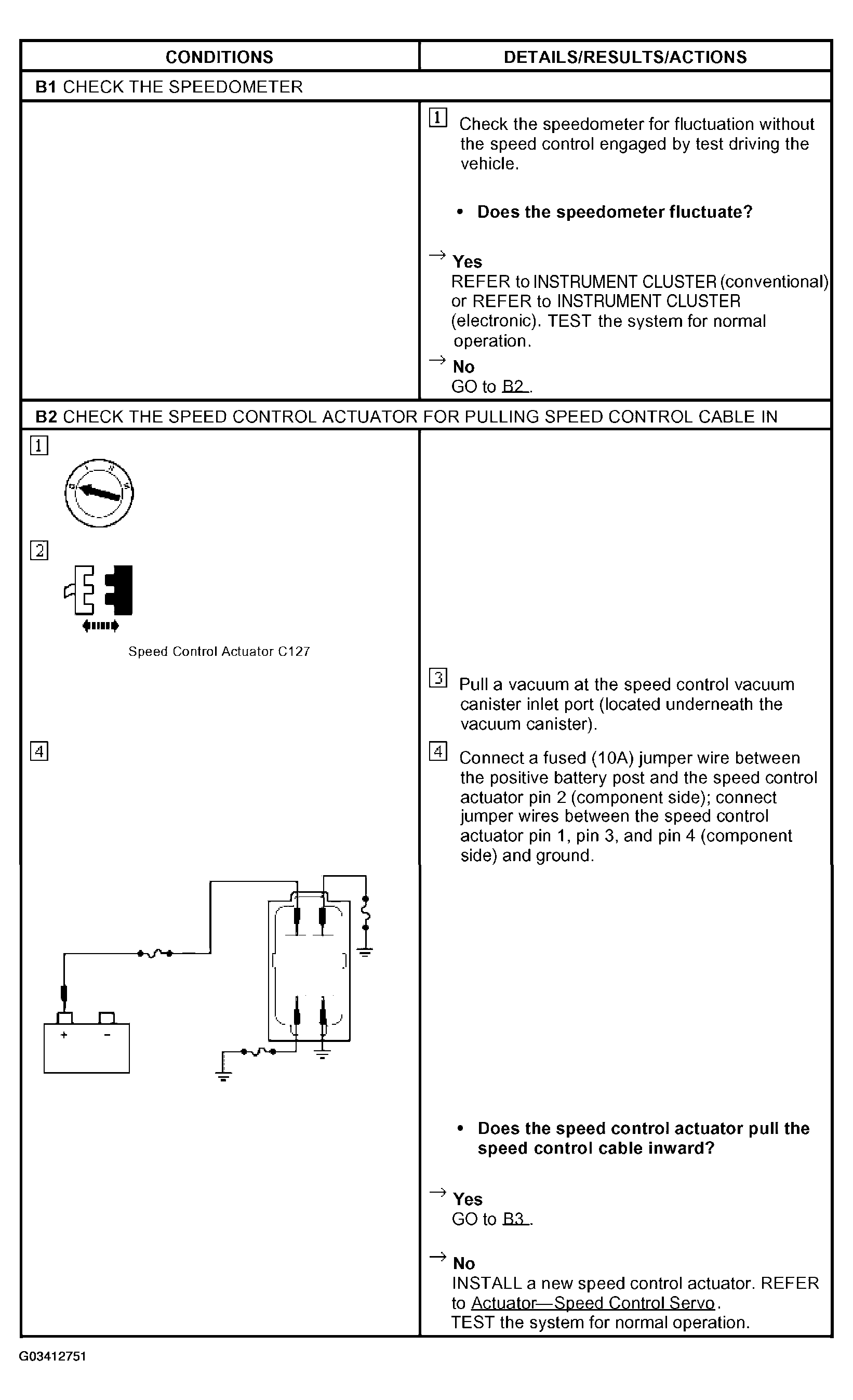

Fig 1: Pinpoint Test B: Set Speed Fluctuates (Test B1 - B2)
G03412751Courtesy of FORD MOTOR CO.

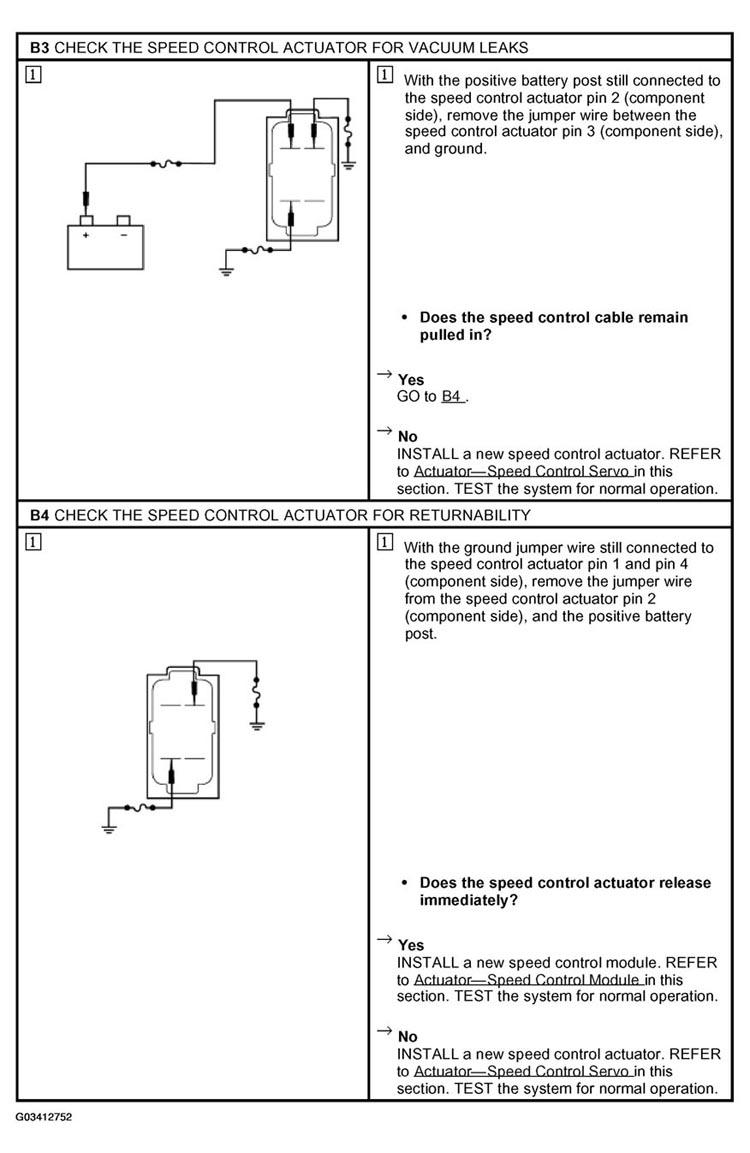

Fig 2: Pinpoint Test B: Set Speed Fluctuates (Test B3 - B4)
G03412752Courtesy of FORD MOTOR CO.
