Camshaft - Lobe Surface

  1. Inspect camshaft lobes for pitting or damage in the contact area. Minor pitting is acceptable outside the contact area.
    • If excessive pitting or damage is present, install new components as necessary.

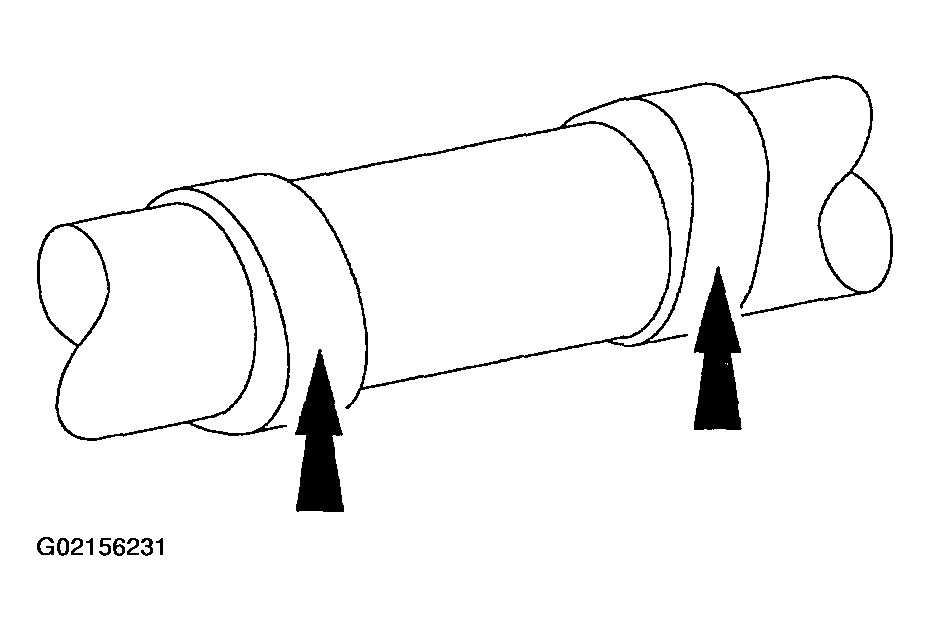

    Fig 1: Inspecting Camshaft Lobes
    G02156231Courtesy of FORD MOTOR CO.
