Electronic Automatic Temperature Control Manual Override Vacuum Application Chart

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

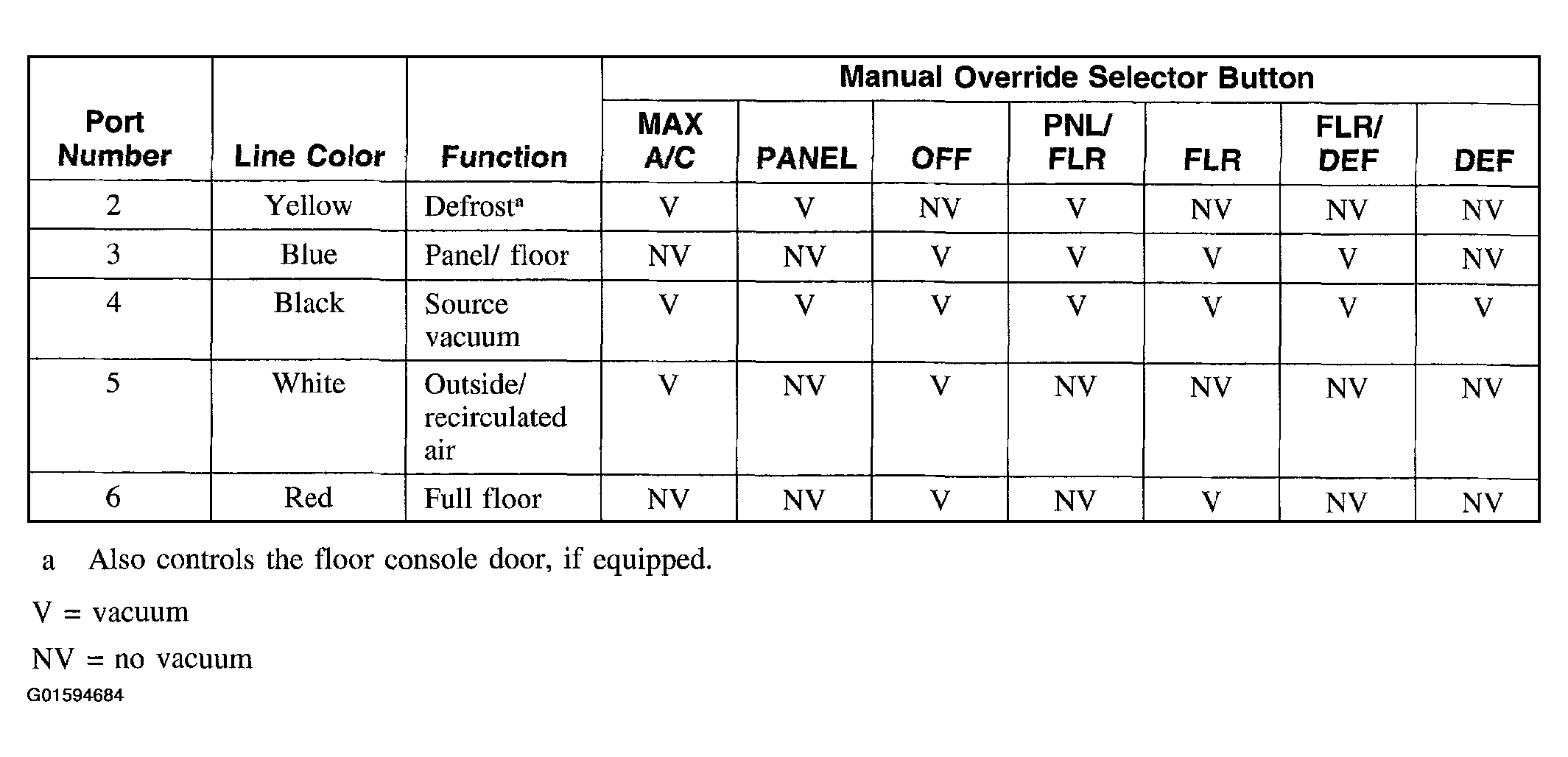

Fig 1: Electronic Automatic Temperature Control Manual Override Vacuum Application Chart
G01594684Courtesy of FORD MOTOR CO.
