Pinpoint Test D: DTC B1484 - Brake Pedal Input Open Circuit

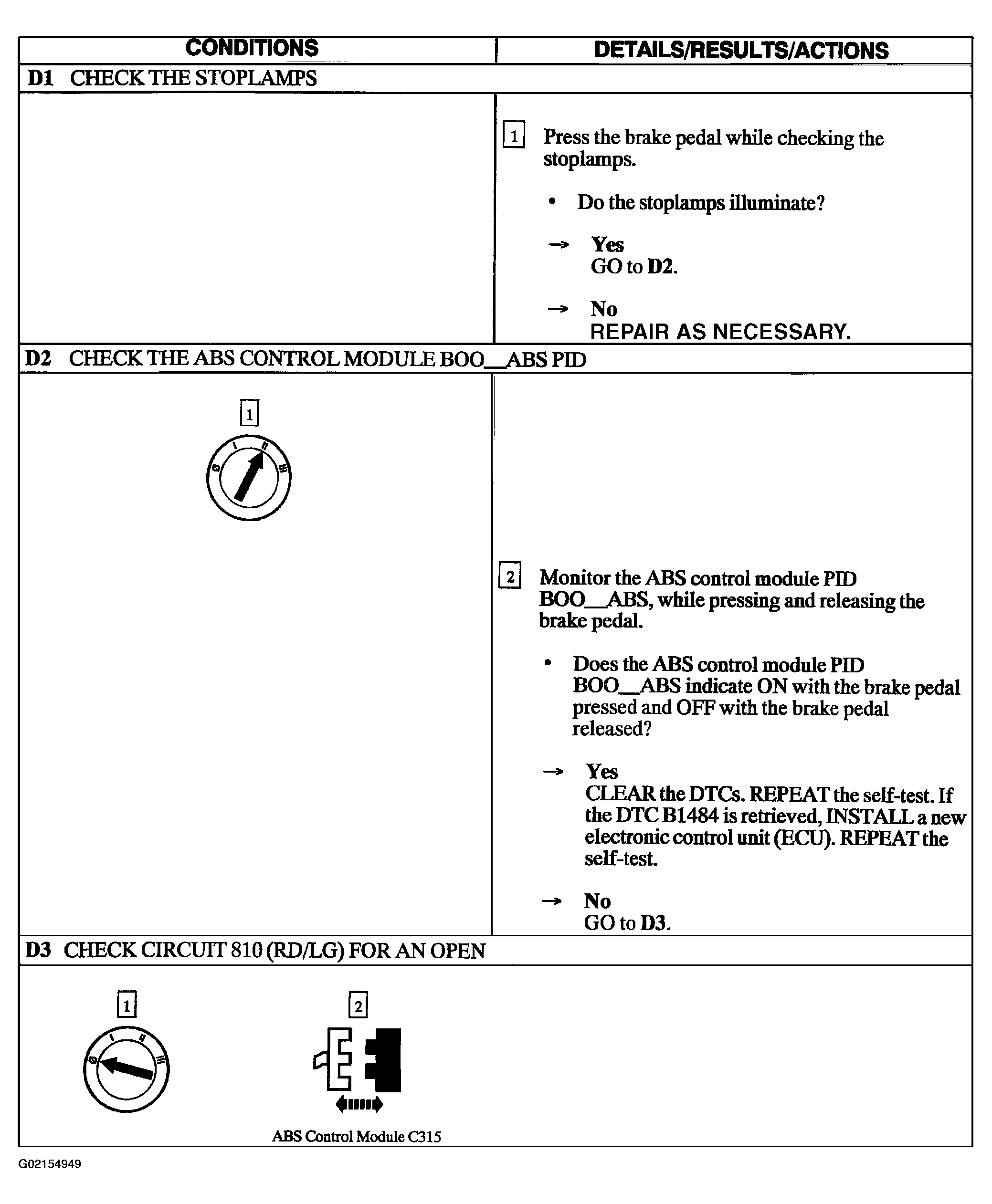

Fig 1: Pinpoint Test D: DTC B1484 - Brake Pedal Input Open Circuit (Steps D1-D3)
G02154949Courtesy of FORD MOTOR CO.

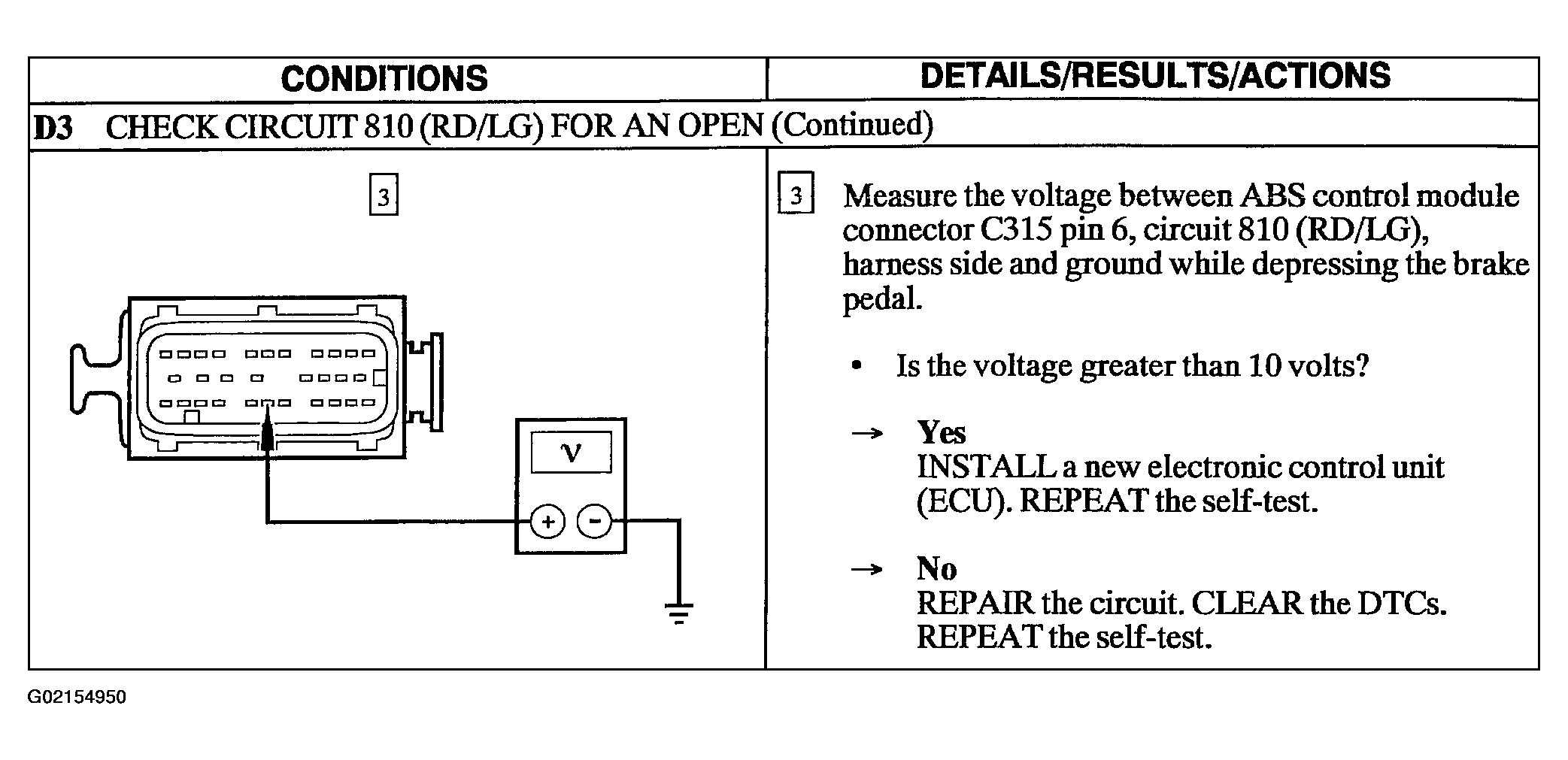

Fig 2: Pinpoint Test D: DTC B1484 - Brake Pedal Input Open Circuit (Step D3)
G02154950Courtesy of FORD MOTOR CO.
