Drain Procedure

  1. Raise and support the vehicle.
  2. Remove the drain plug and drain the fluid into a suitable container.

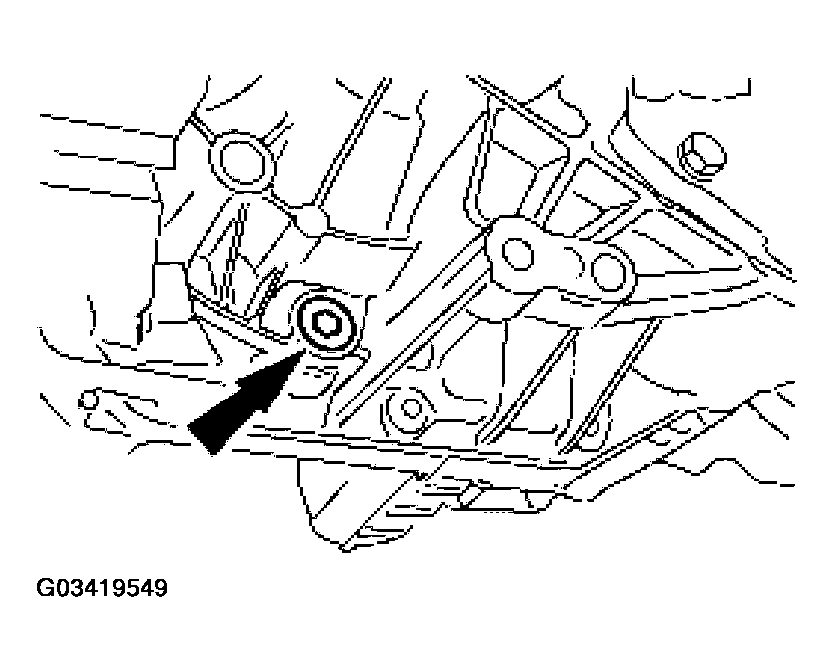

    Fig 1: Removing Drain Plug
    G03419549Courtesy of FORD MOTOR CO.
  3. Install the drain plug.

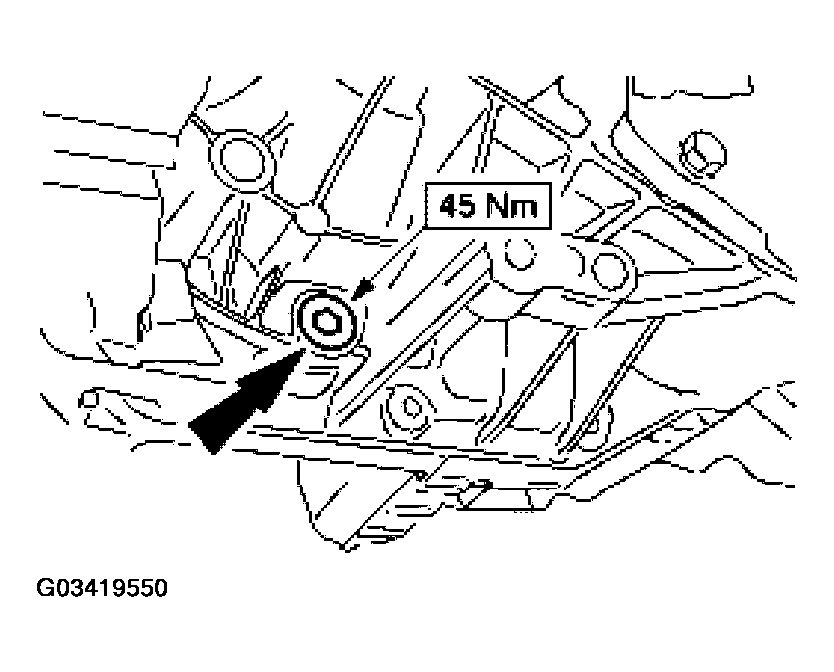

    Fig 2: Installing Drain Plug
    G03419550Courtesy of FORD MOTOR CO.
  4. Lower the vehicle.
