Home >> Mercury >> 2002 >> Cougar 2.5 L, Standard >> Repair and Diagnosis >> Accessories & Equipment >> Cruise Control Systems >> Vehicle Speed Control >> Removal And Installation >> Speed Control Switch >> Removal

Speed Control Switch: Removal

  1. Remove the driver air bag module. For additional information, refer to AIR BAG RESTRAINT SYSTEMS article .
  2. Disconnect the speed control actuator switch assembly electrical connector.

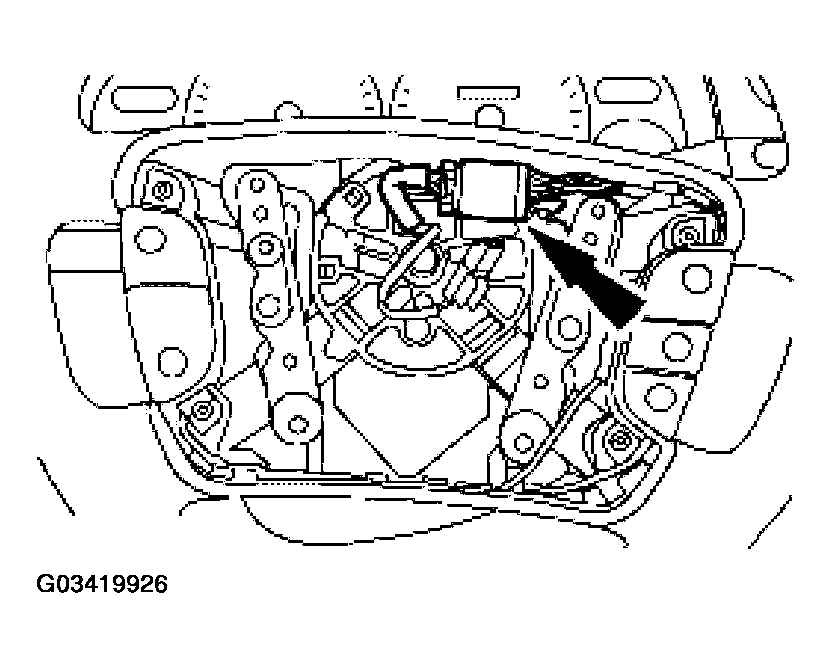

    Fig 1: Disconnecting Speed Control Actuator Switch Assembly Electrical Connector
    G03419926Courtesy of FORD MOTOR CO.
  3. Remove the speed control actuator switches.

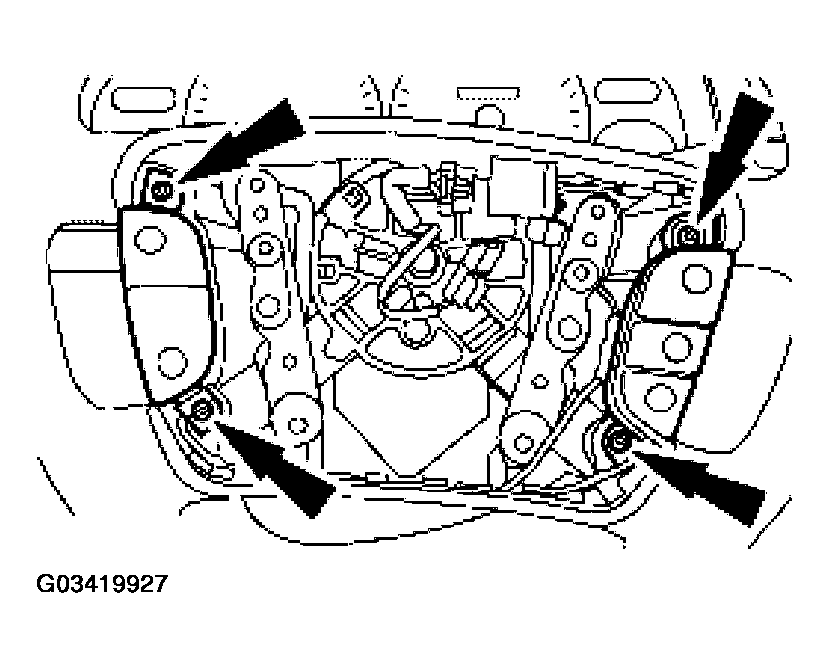

    Fig 2: Removing Speed Control Actuator Switches
    G03419927Courtesy of FORD MOTOR CO.
