Pinpoint Test C: The Abs Control Module Does Not Respond To The NGS Tester

CAUTION: Electronic modules are sensitive to electrical charge. If exposed to these charges, damage may result.

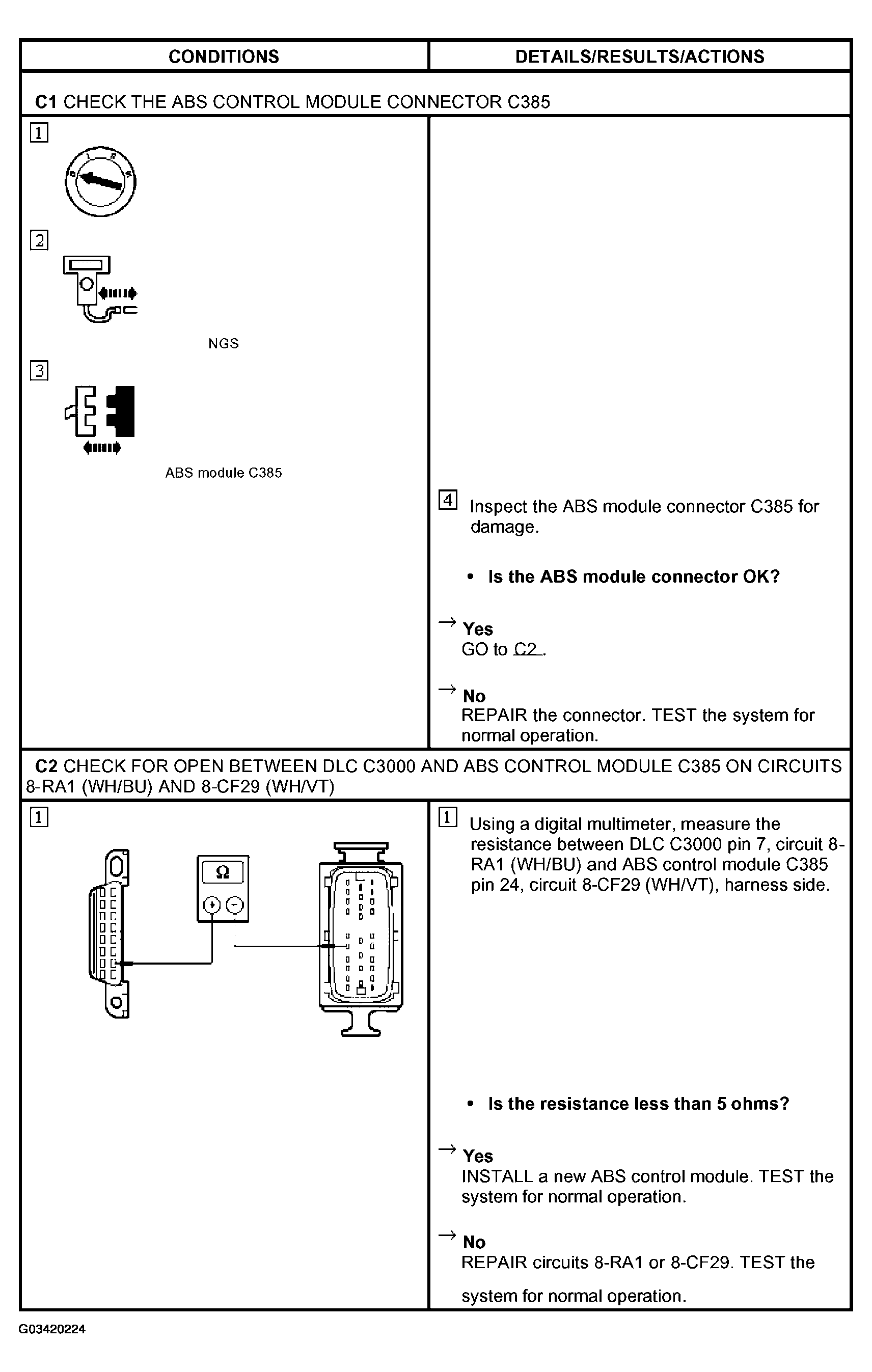

Fig 1: Pinpoint Test C Chart - ABS Control Module Does Not Respond To NGS Tester
G03420224Courtesy of FORD MOTOR CO.
