Pinpoint Test E: The Indicator Lamp Is Not Operating Properly

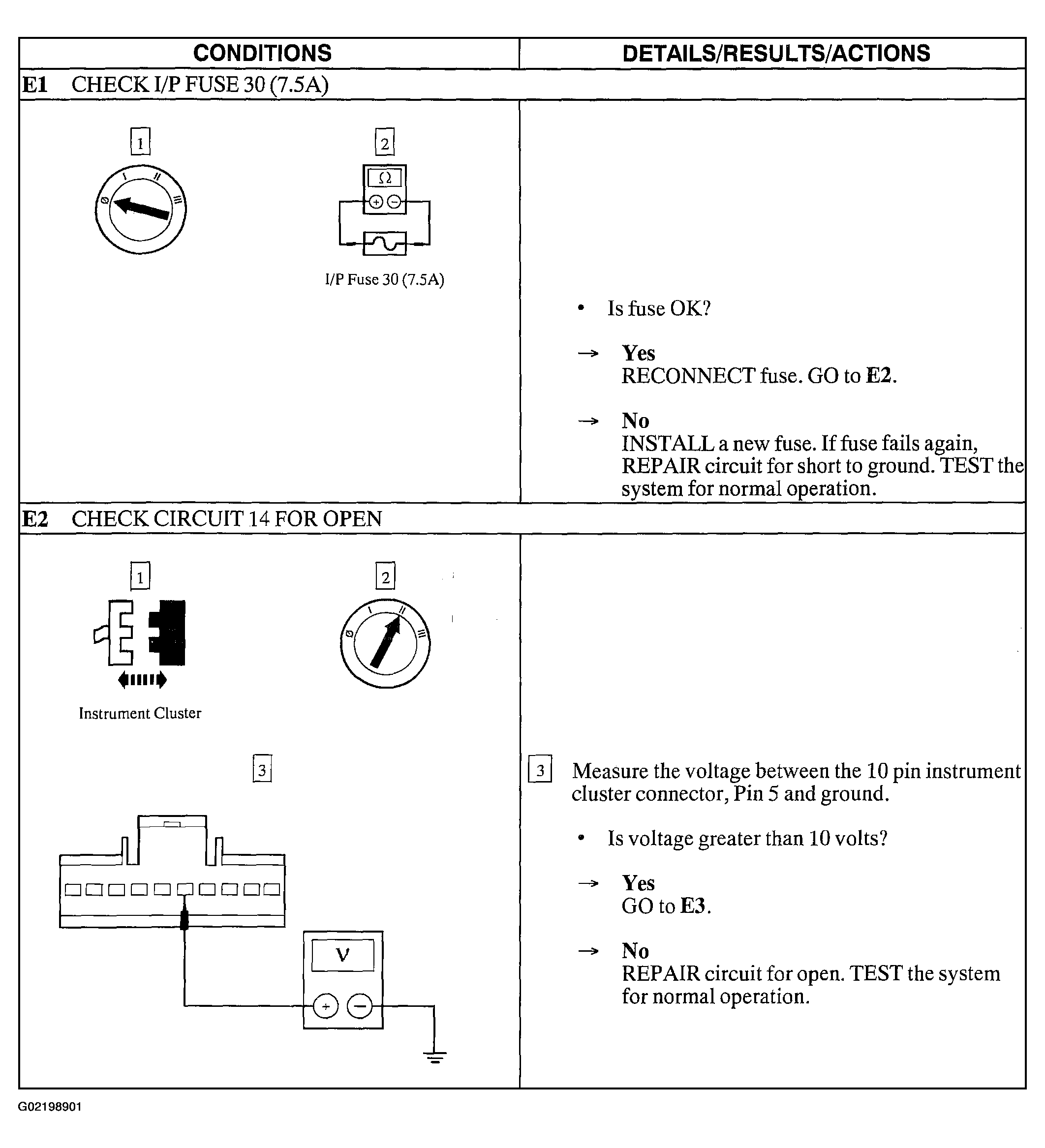

Fig 1: Pinpoint Test E: Indicator Lamp Is Not Operating Properly (E1 & E2)
G02198901Courtesy of FORD MOTOR CO.

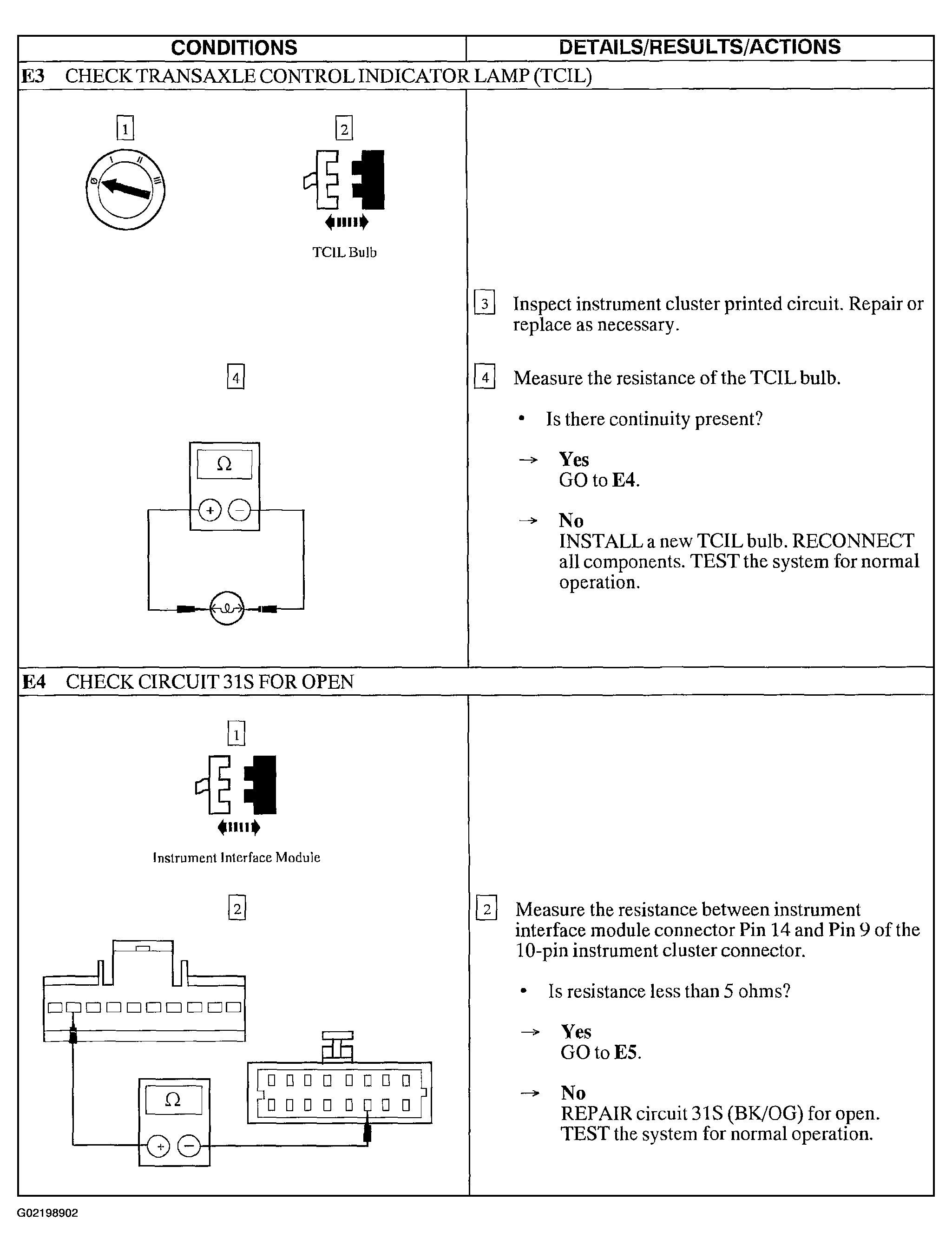

Fig 2: Pinpoint Test E: Indicator Lamp Is Not Operating Properly (E3 & E4)
G02198902Courtesy of FORD MOTOR CO.

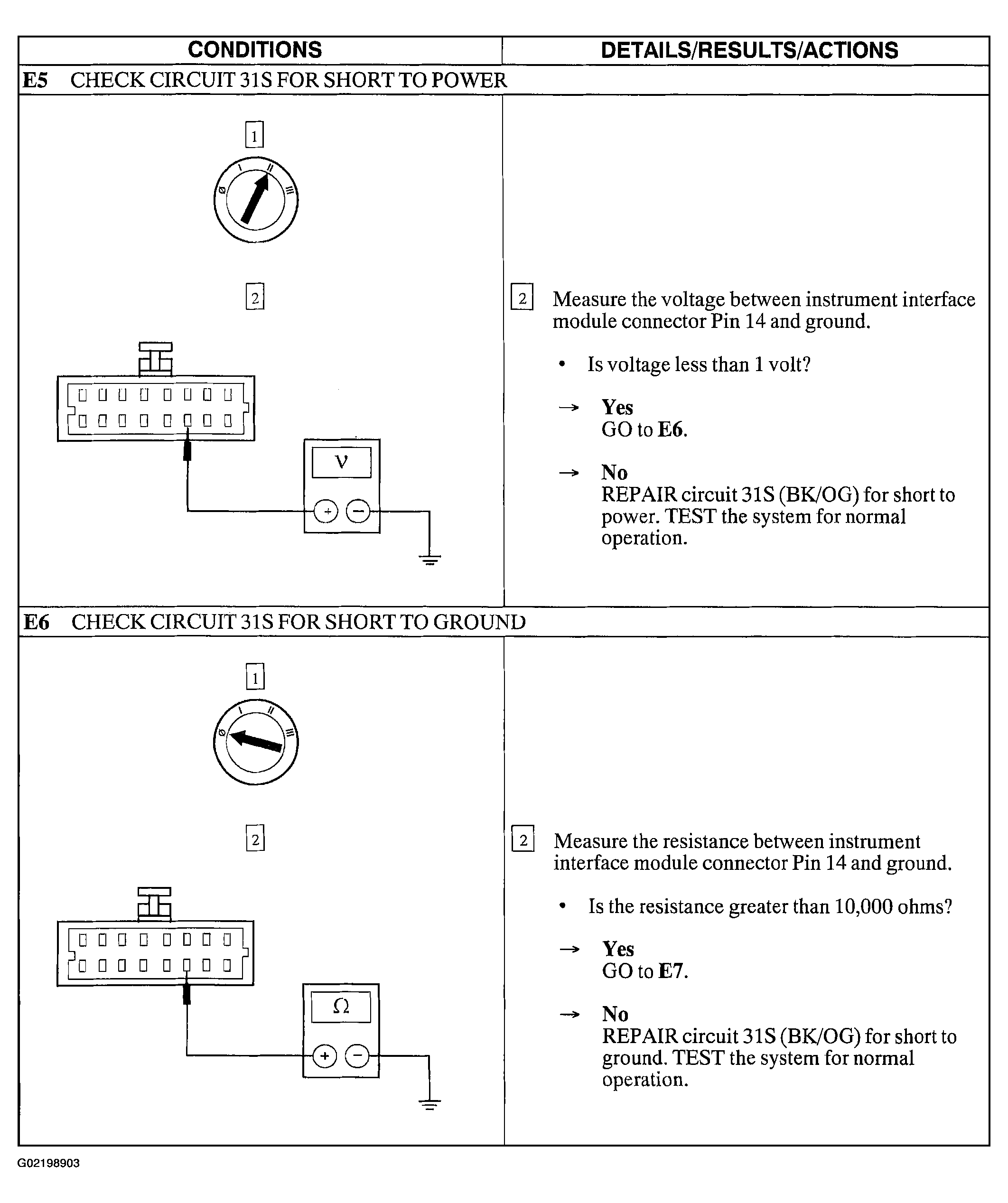

Fig 3: Pinpoint Test E: Indicator Lamp Is Not Operating Properly (E5 & E6)
G02198903Courtesy of FORD MOTOR CO.

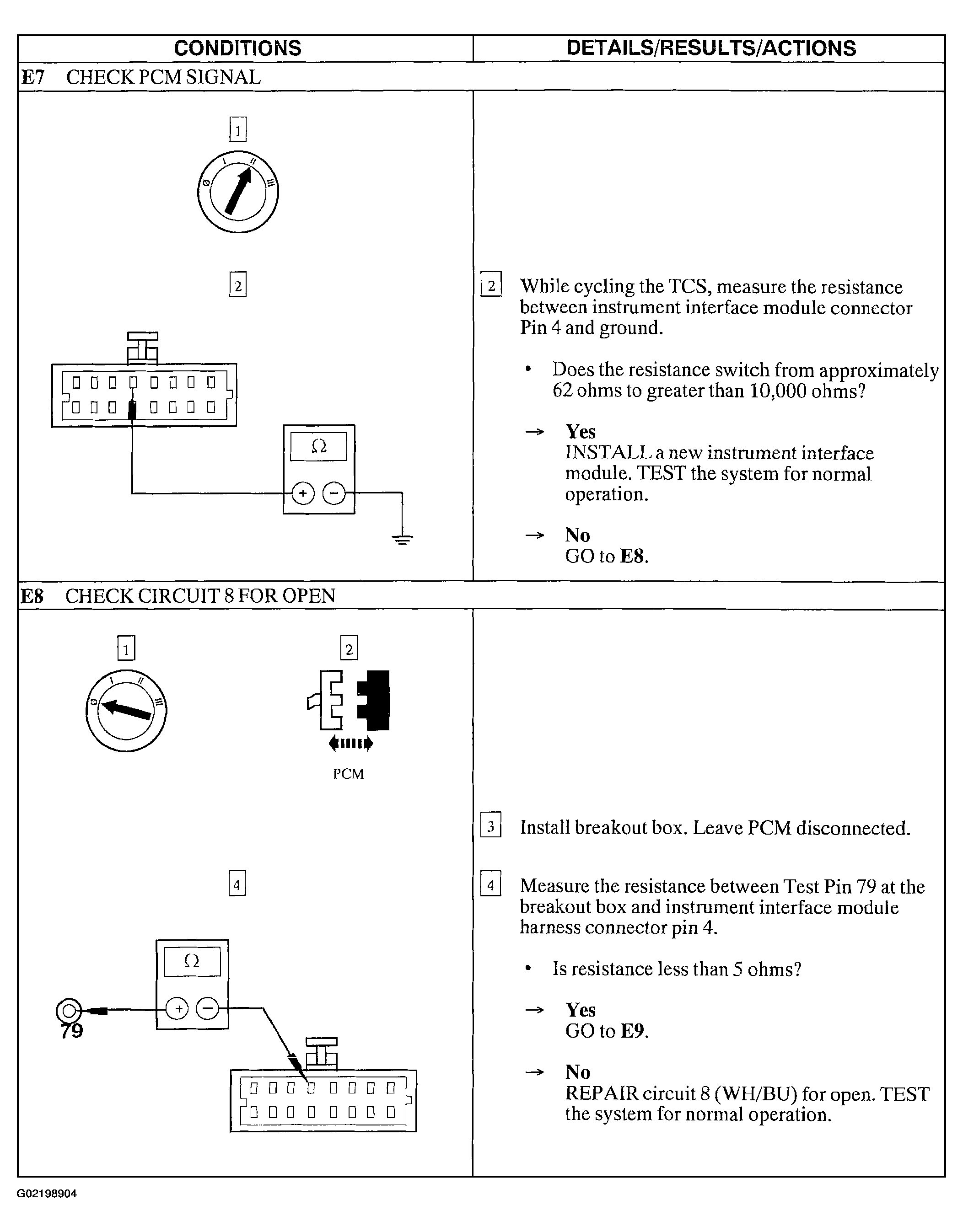

Fig 4: Pinpoint Test E: Indicator Lamp Is Not Operating Properly (E7 & E8)
G02198904Courtesy of FORD MOTOR CO.

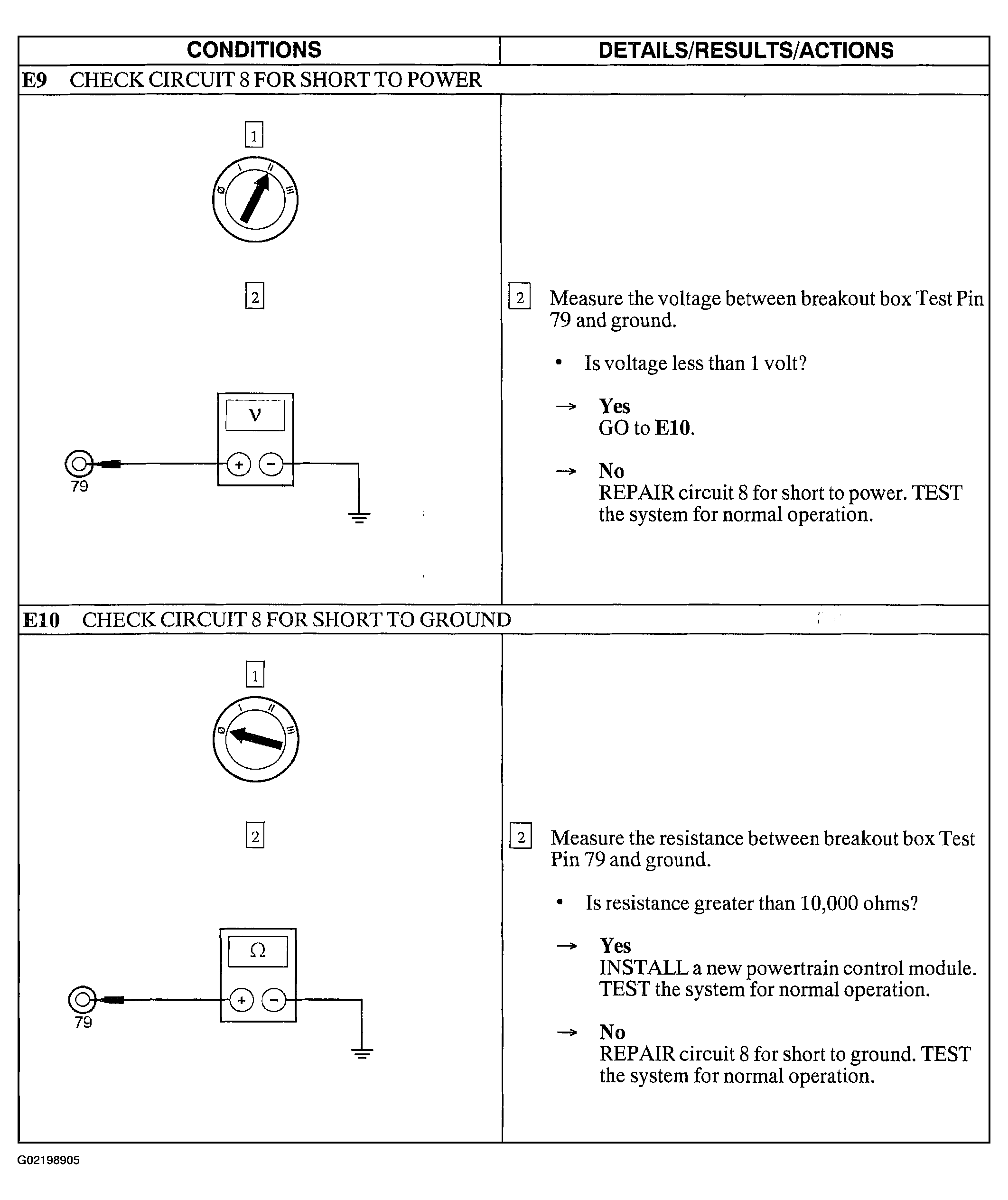

Fig 5: Pinpoint Test E: Indicator Lamp Is Not Operating Properly (E9 & E10)
G02198905Courtesy of FORD MOTOR CO.
