Home >> Mercury >> 2002 >> Cougar 2.0 3 >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Keyless Entry/Computer Operated Locks >> Diagnosis And Testing >> Keyless Entry >> Pinpoint Tests >> Pinpoint Test B: The Liftgate Is Inoperative Using The Remote Transmitter

Pinpoint Test B: The Liftgate Is Inoperative Using The Remote Transmitter

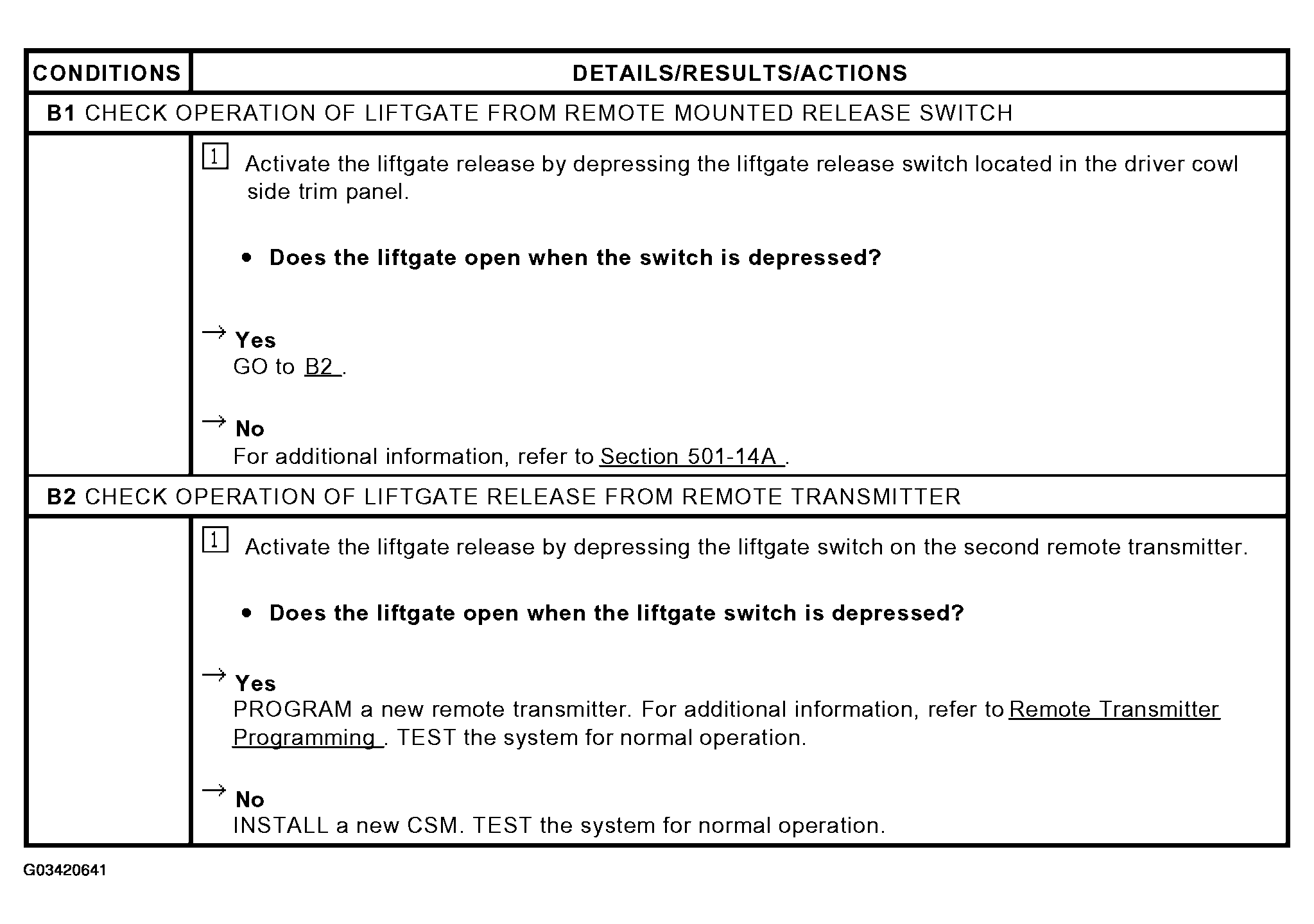

Fig 1: Pinpoint Test B: Liftgate Is Inoperative Using Remote Transmitter

G03420641

Courtesy of FORD MOTOR CO.
