Lower Intake Manifold: Installation

Ensure gasket mating surfaces are clean and flat. Install lower intake manifold. Evenly tighten bolts to specification. See TORQUE SPECIFICATIONS . To complete installation, reverse removal procedure

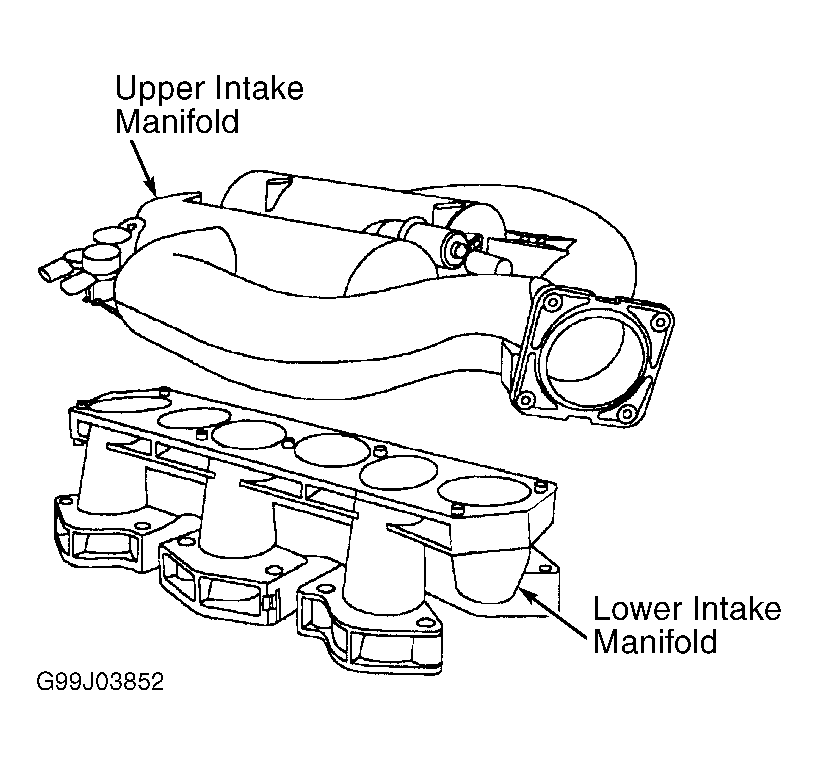

Fig 1: Exploded View Of Upper & Lower Intake Manifold (4.0L VIN E & K)
G99J03852Courtesy of FORD MOTOR CO.
