Pinpoint Test E: The Indicator Lamp Is Not Operating Properly

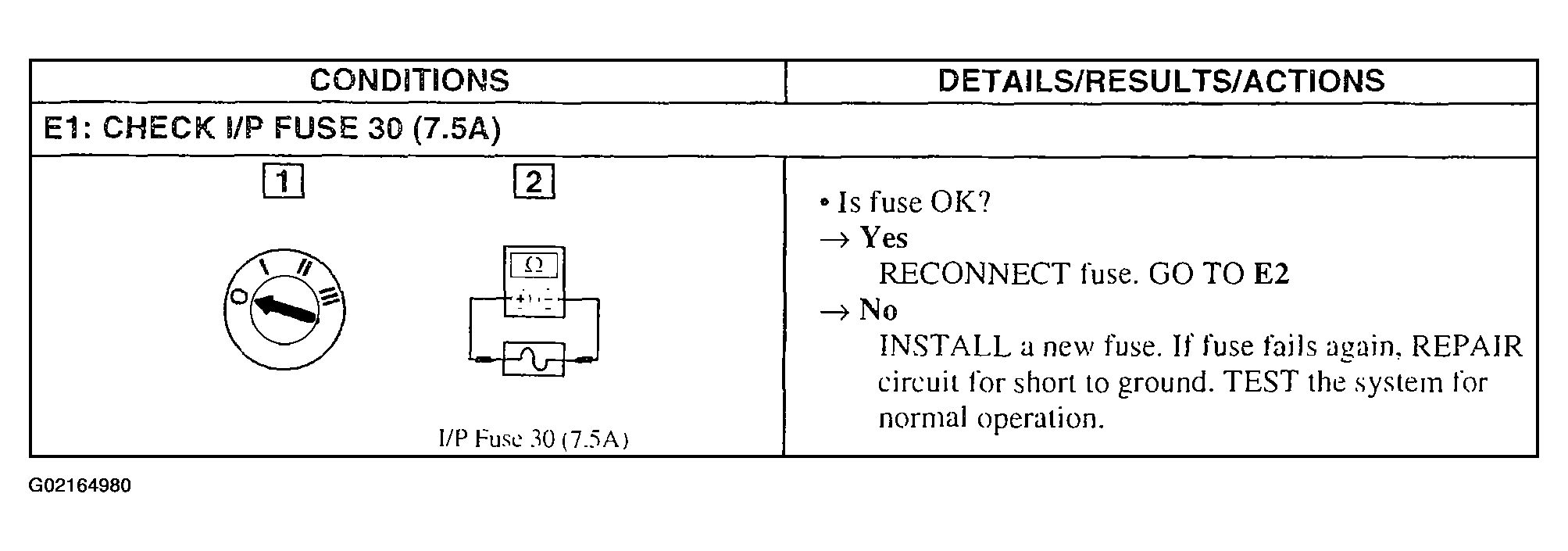

Fig 1: Pinpoint Test E: The Indicator Lamp Is Not Operating Properly (Step 1)
G02164980

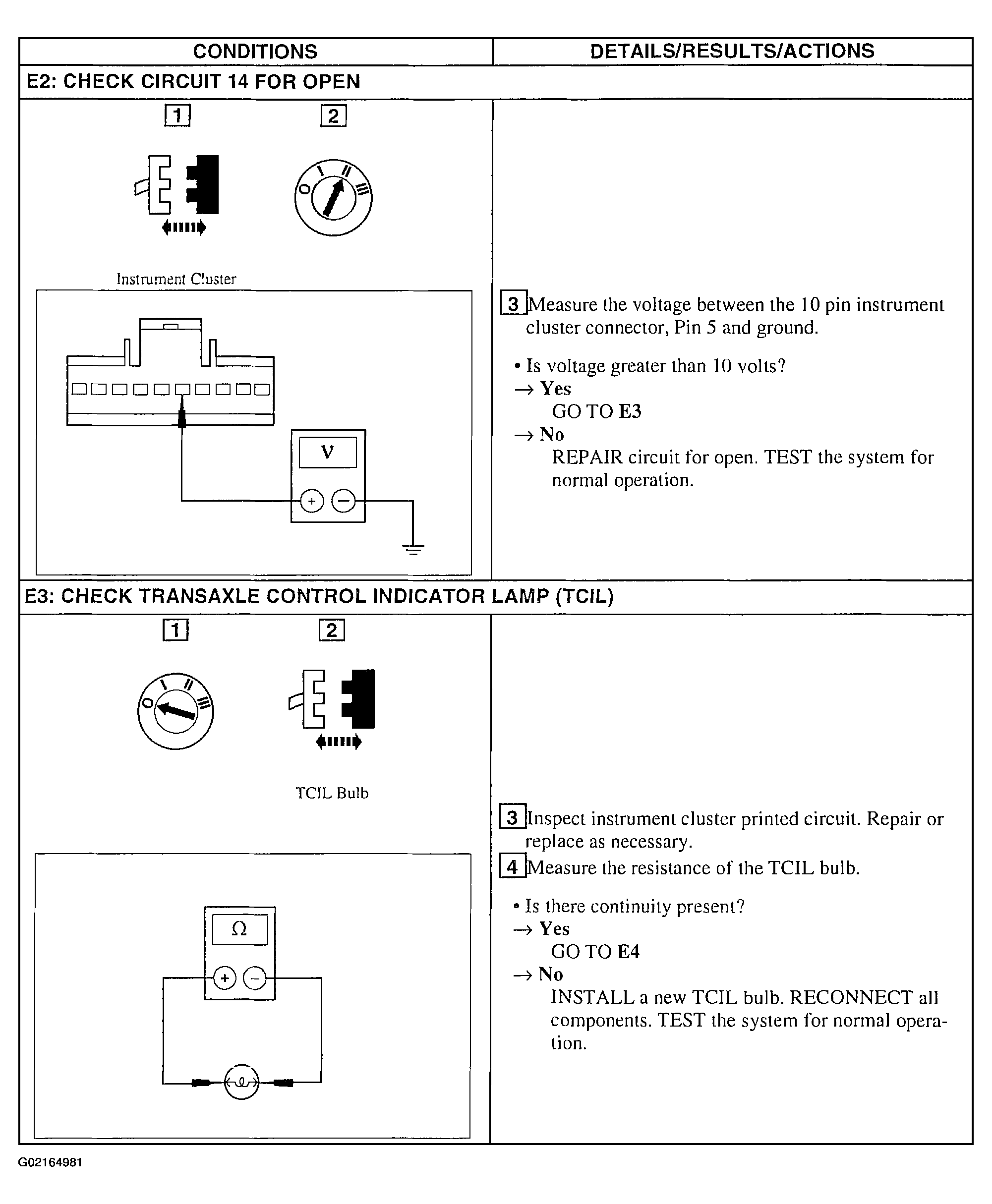

Fig 2: Pinpoint Test E: The Indicator Lamp Is Not Operating Properly (Steps 2-3)
G02164981

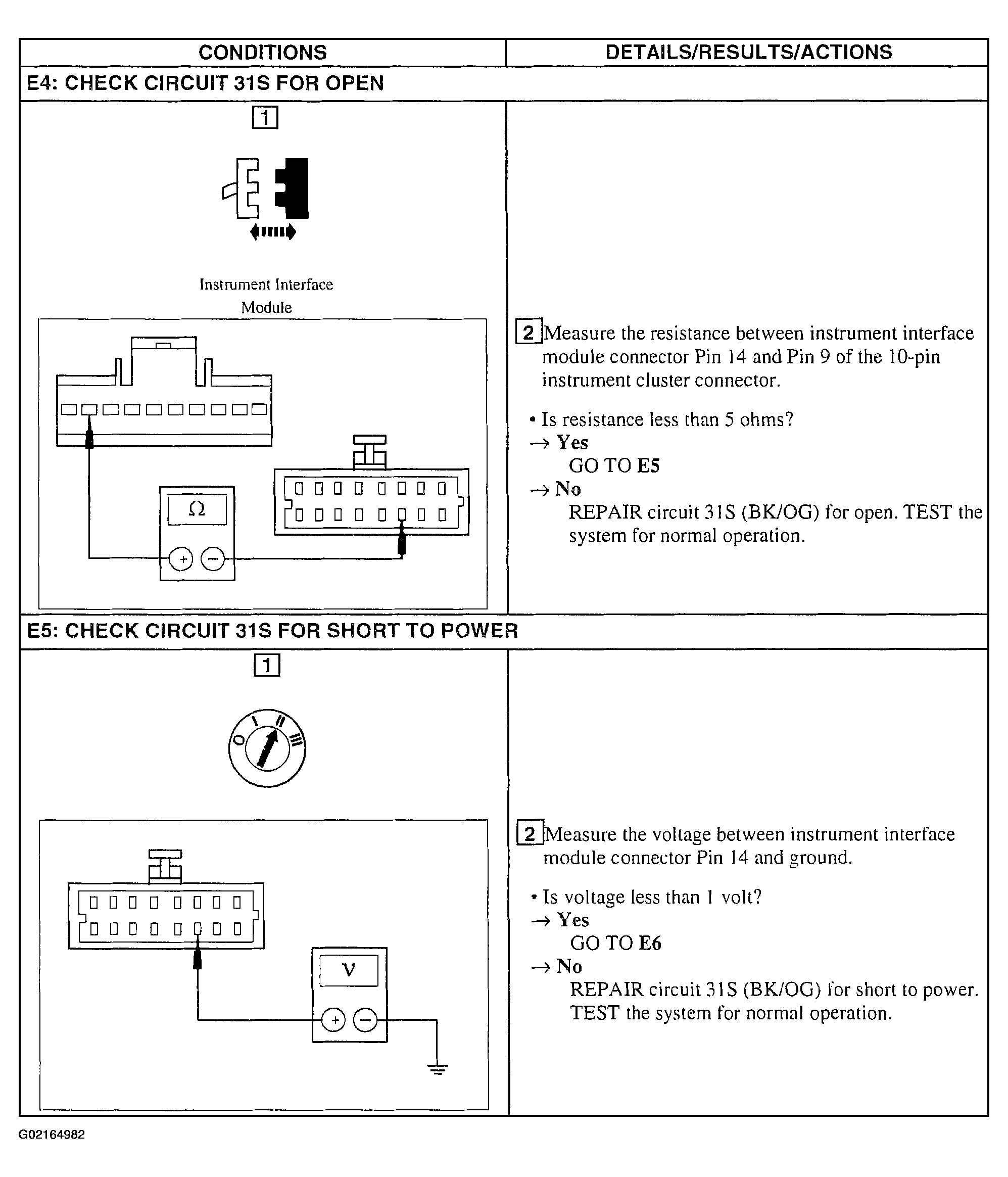

Fig 3: Pinpoint Test E: The Indicator Lamp Is Not Operating Properly (Steps 4-5)
G02164982

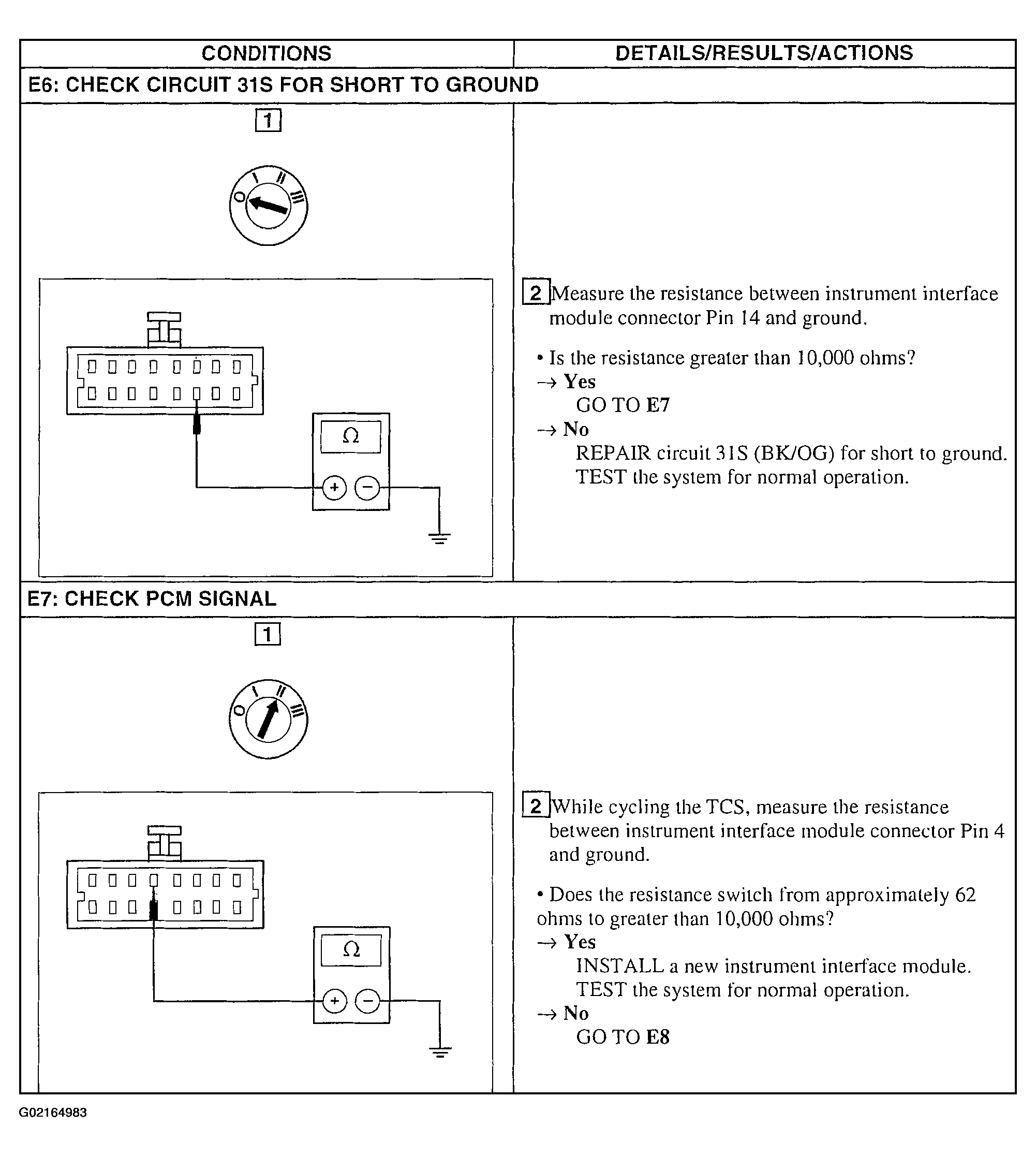

Fig 4: Pinpoint Test E: The Indicator Lamp Is Not Operating Properly (Steps 6-7)
G02164983

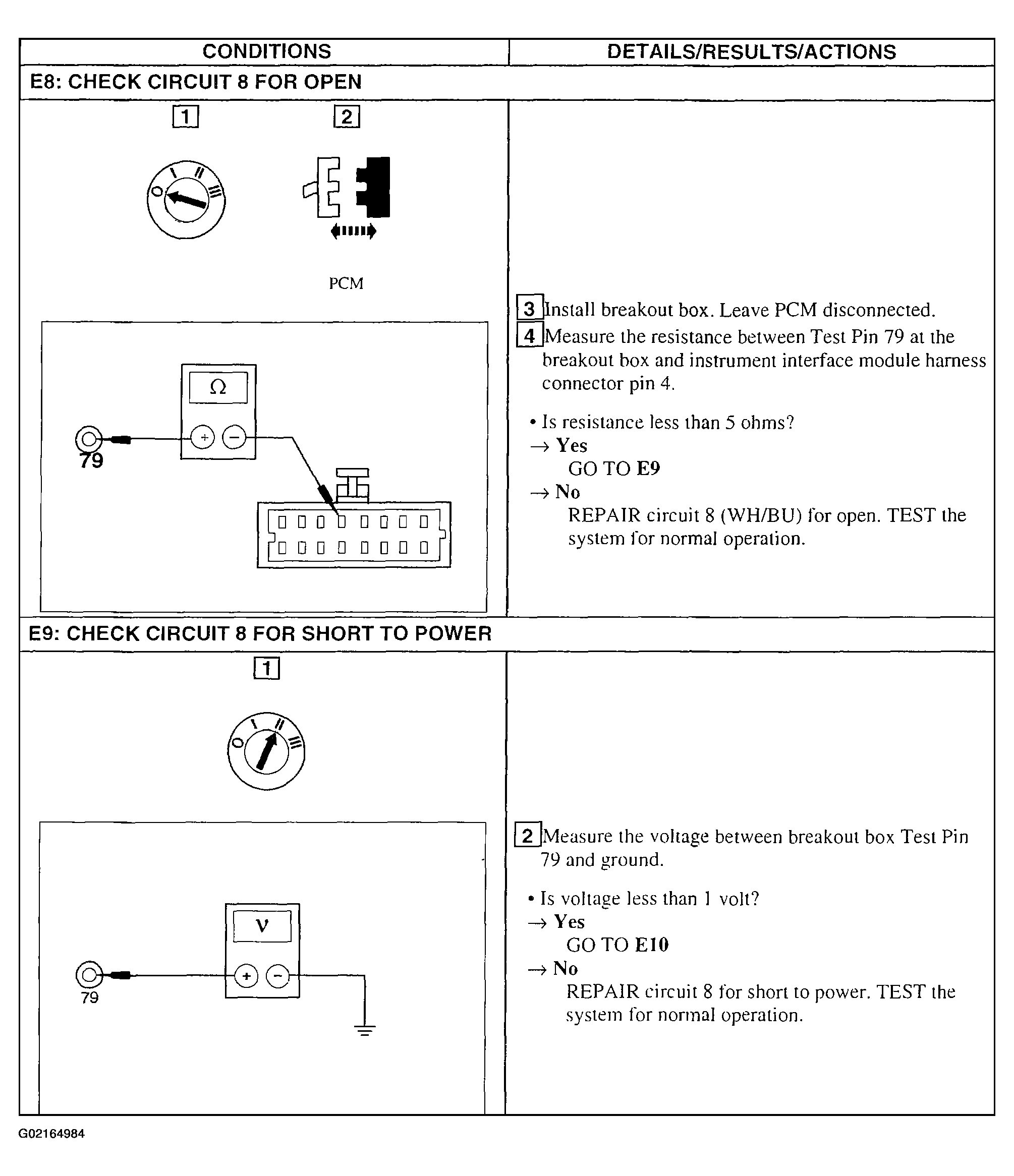

Fig 5: Pinpoint Test E: The Indicator Lamp Is Not Operating Properly (Steps 8-9)
G02164984

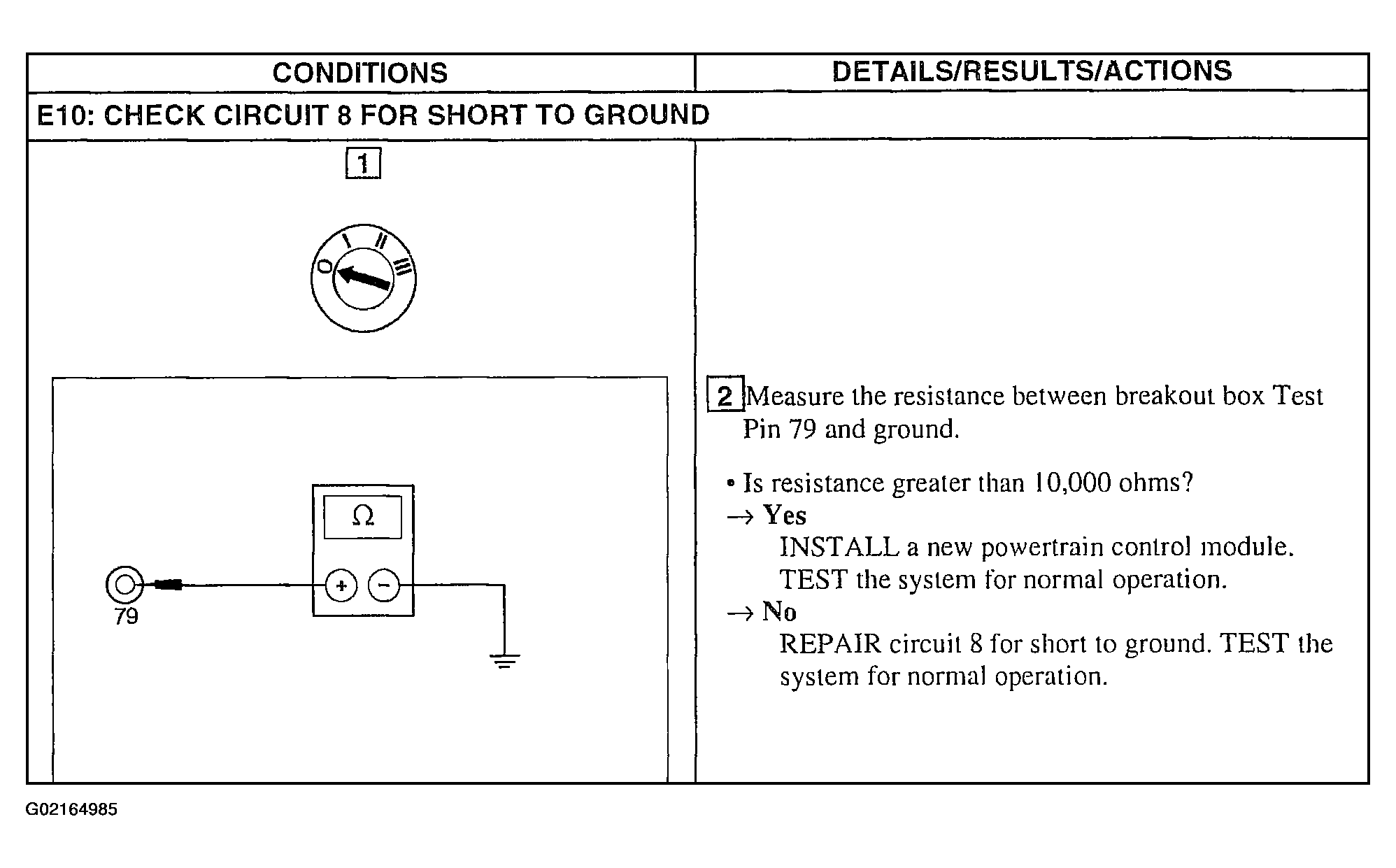

Fig 6: Pinpoint Test E: The Indicator Lamp Is Not Operating Properly (Step 10)
G02164985
