Pinpoint Test A: The Shift Interlock System Does Not Release/Lock Properly

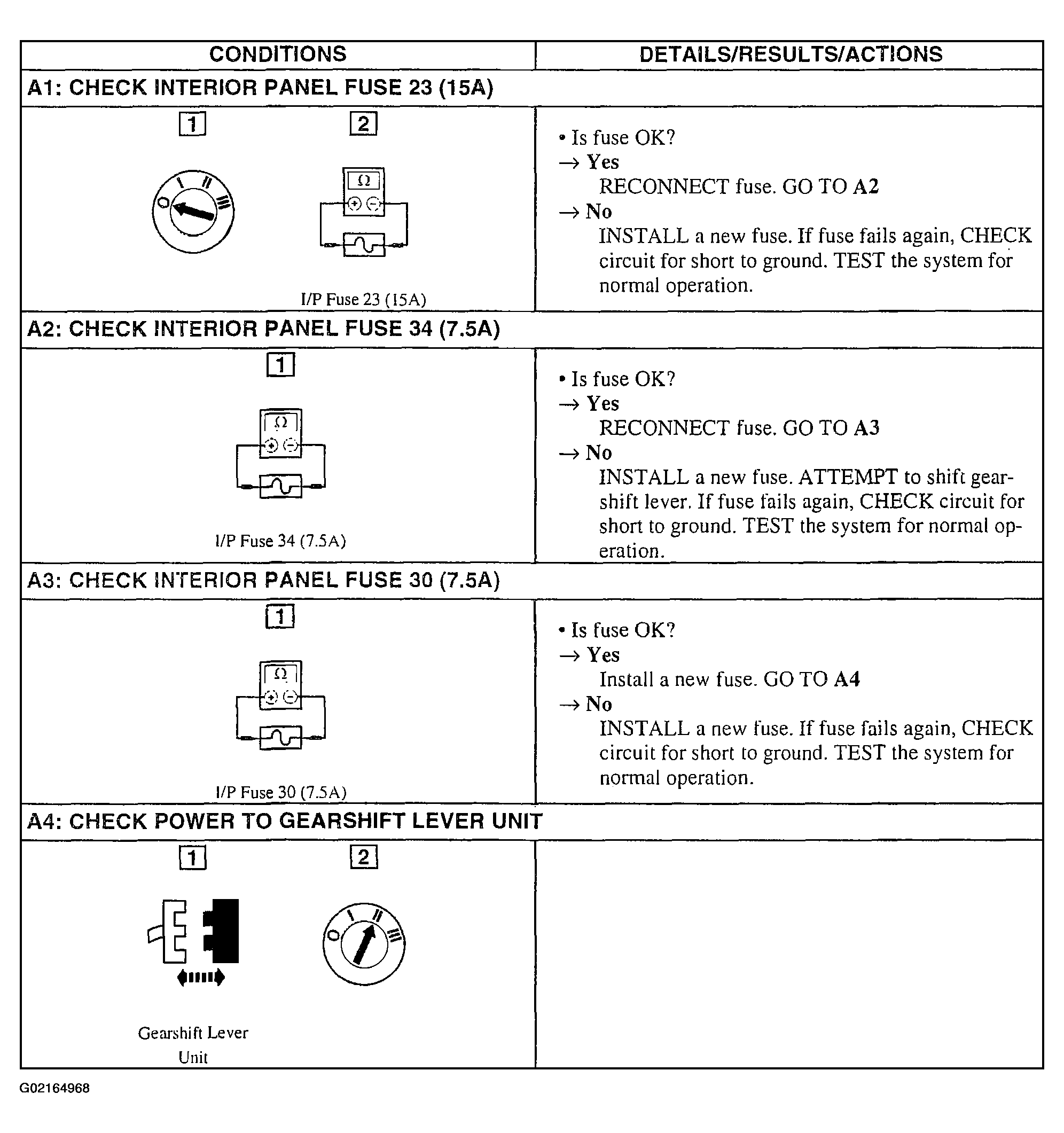

Fig 1: Pinpoint Test A: The Shift Interlock System Does Not Release/Lock Properly (Steps 1-4)
G02164968

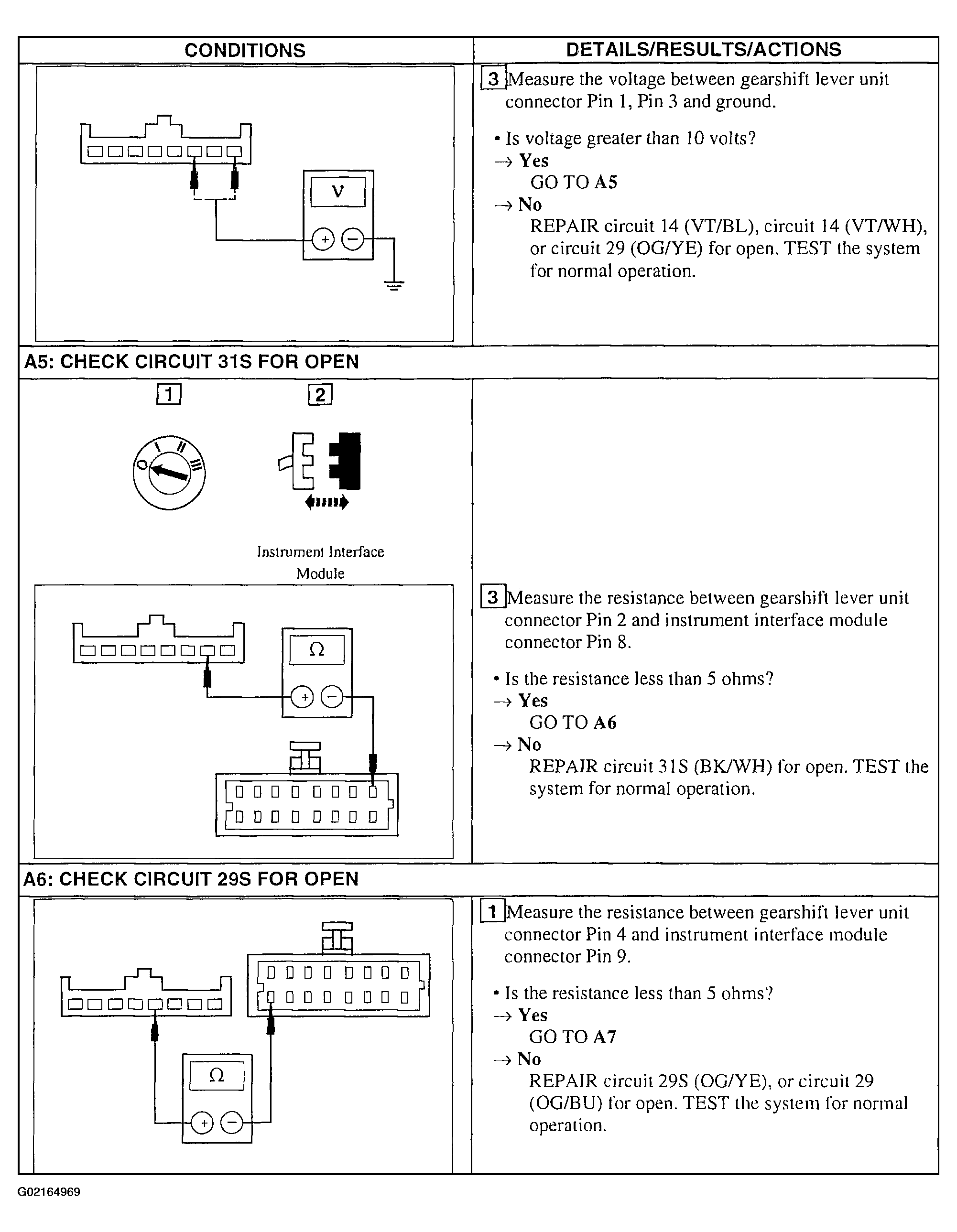

Fig 2: Pinpoint Test A: The Shift Interlock System Does Not Release/Lock Properly (Steps 4 Cont.-6)
G02164969

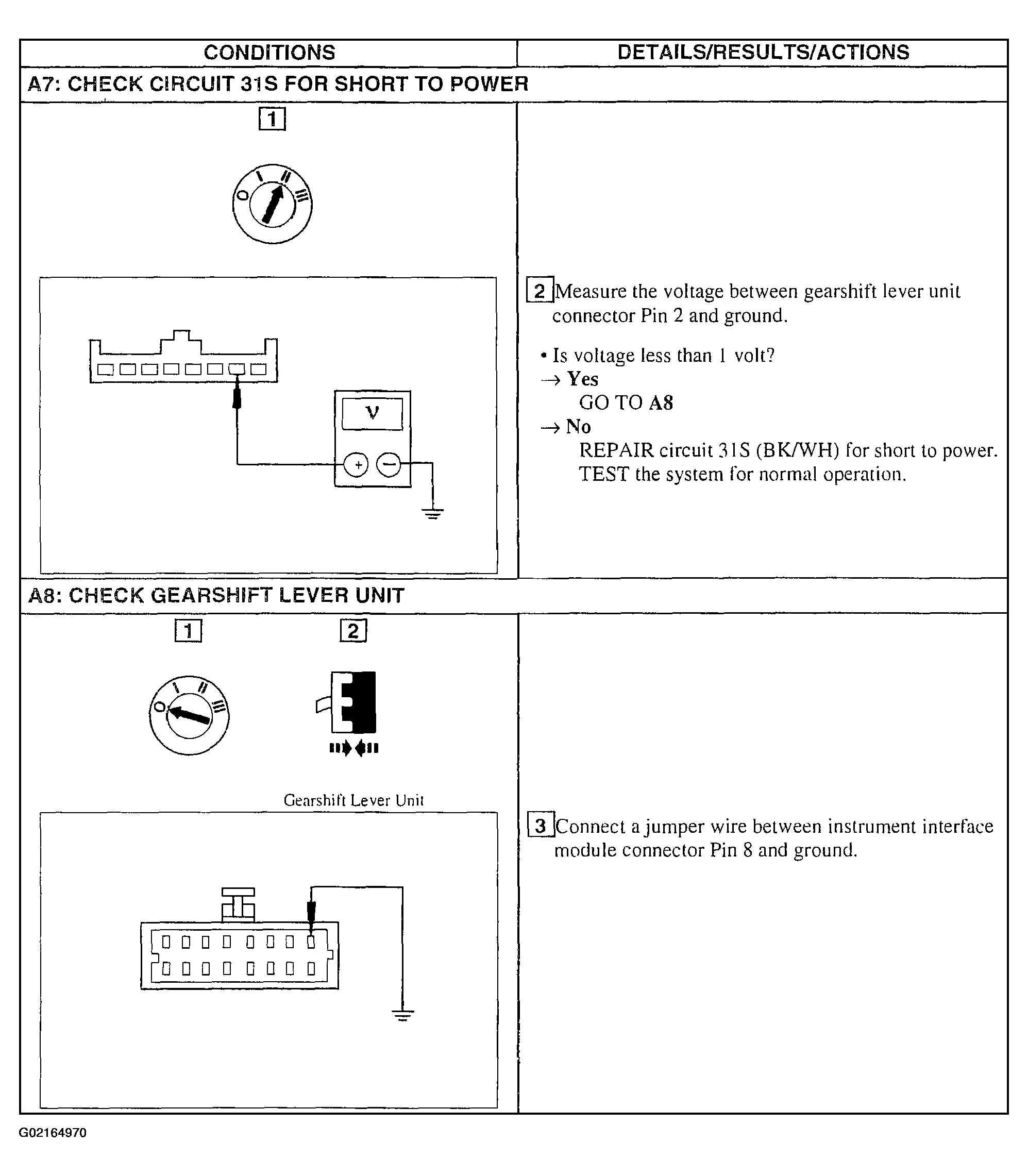

Fig 3: Pinpoint Test A: The Shift Interlock System Does Not Release/Lock Properly (Steps 7-8)
G02164970

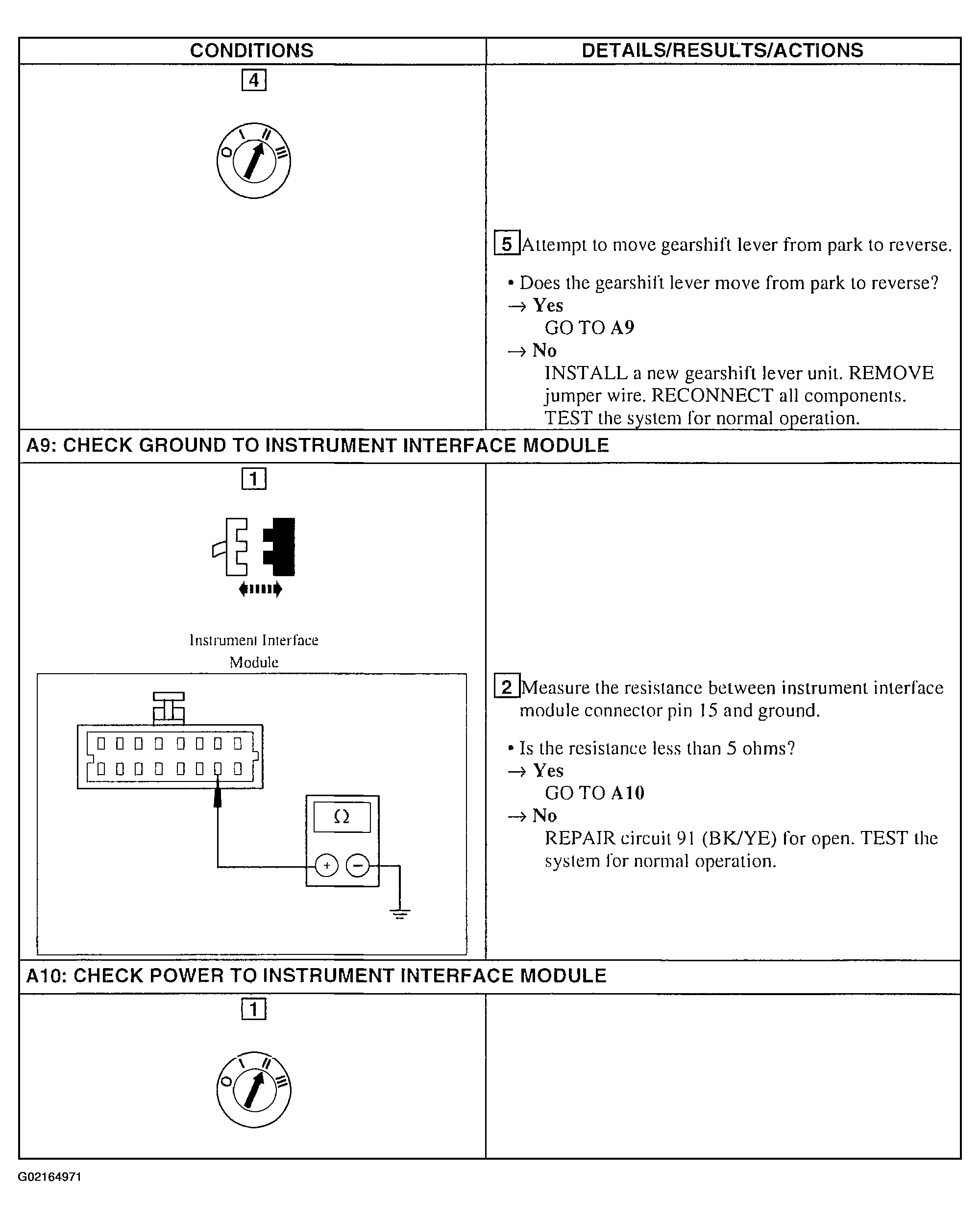

Fig 4: Pinpoint Test A: The Shift Interlock System Does Not Release/Lock Properly (Steps 8 Cont.-10)
G02164971

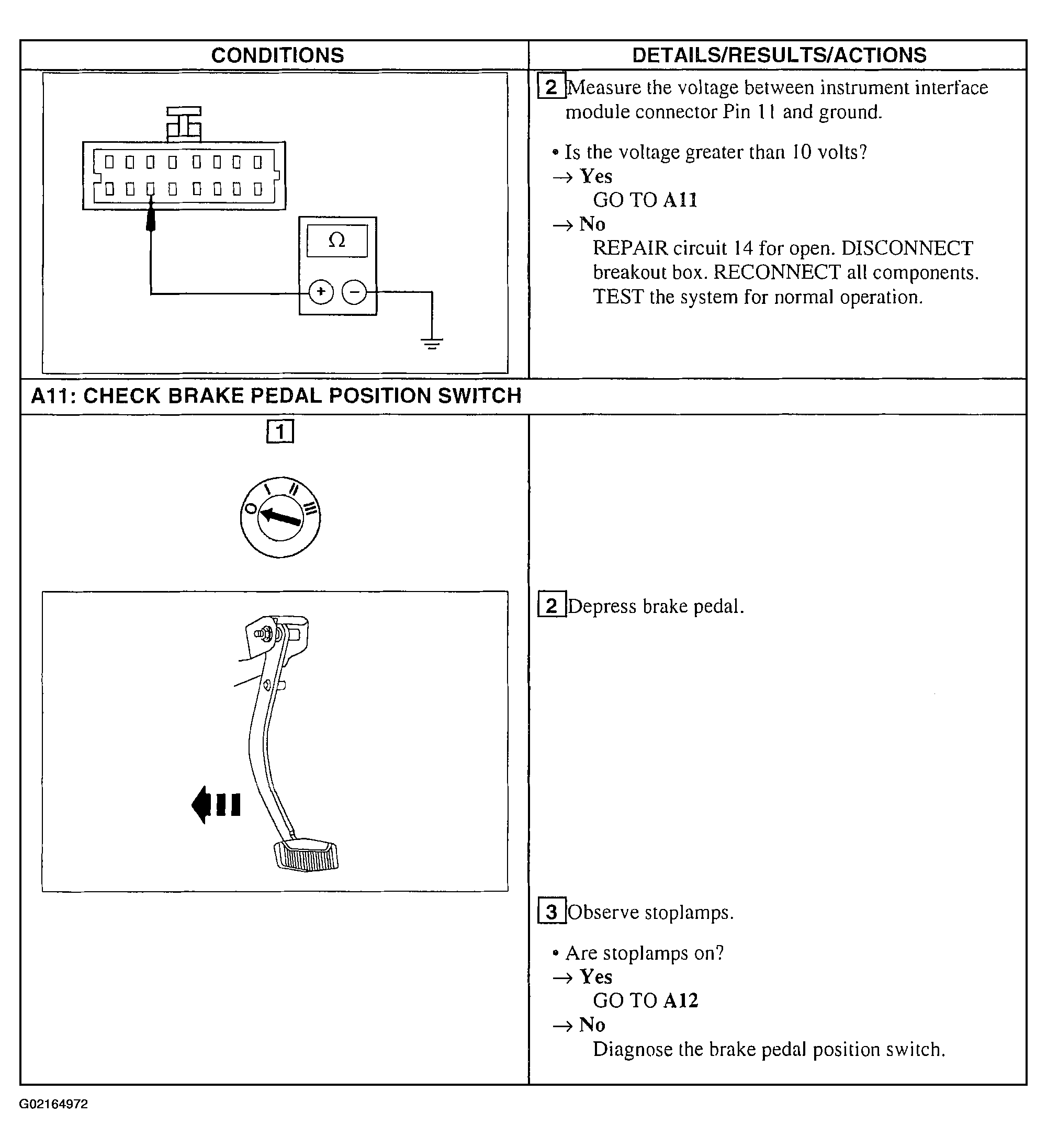

Fig 5: Pinpoint Test A: The Shift Interlock System Does Not Release/Lock Properly (Steps 10-11)
G02164972

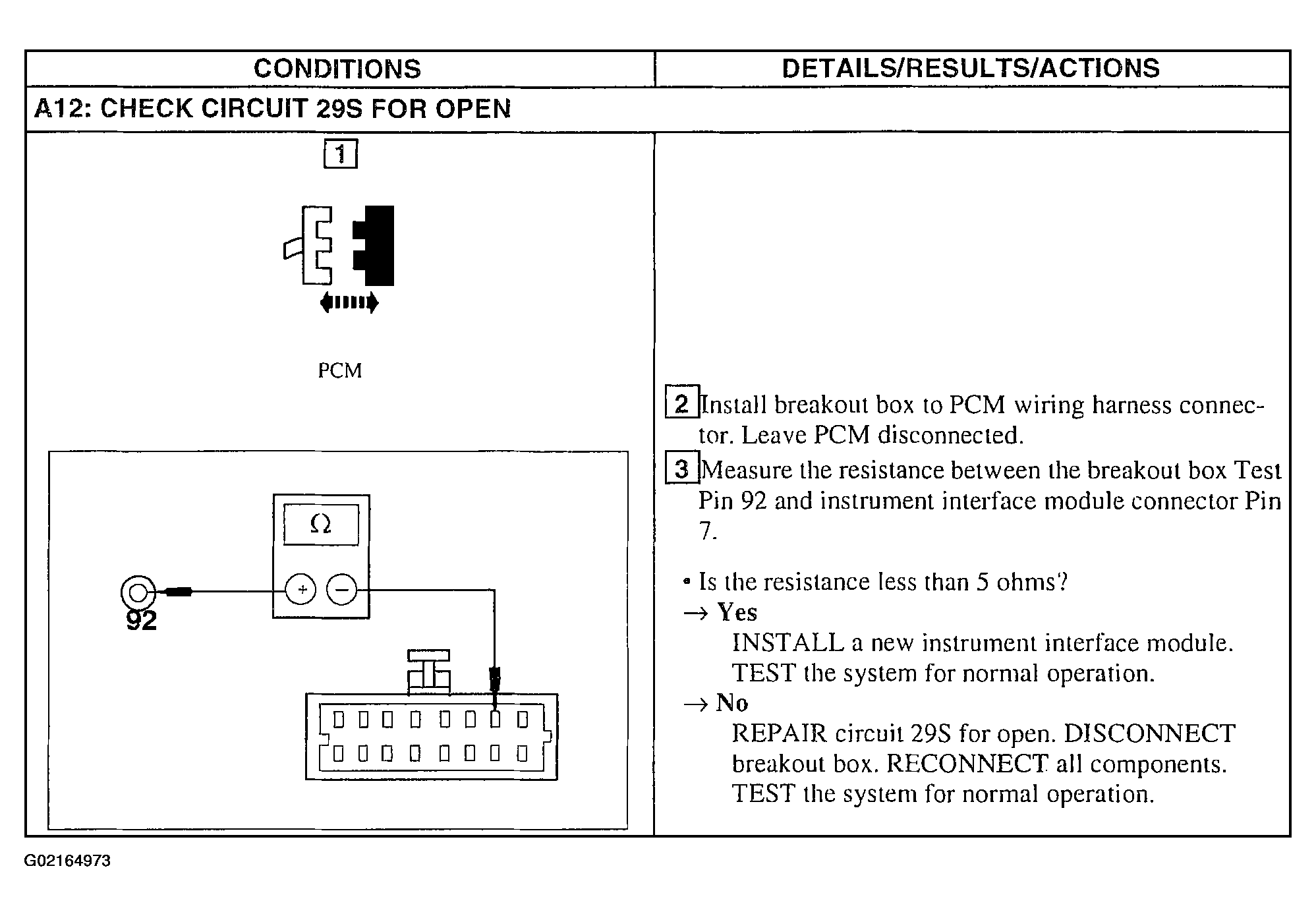

Fig 6: Pinpoint Test A: The Shift Interlock System Does Not Release/Lock Properly (Step 12)
G02164973
