Final Drive Carrier and Differential Assembly: Assembly

  1. Install the differential side gears and thrust washers.
    Fig 1: Installing Differential Side Gears And Thrust Washer
    G02164566
  2. Install the differential pinion gears and thrust washers.
    • Rotate the differential pinion gears 90 degrees.

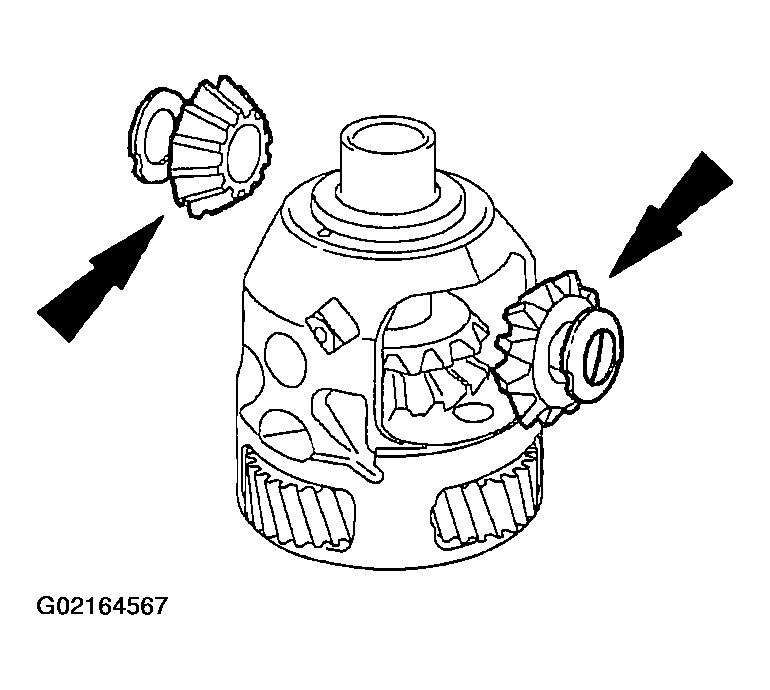

    Fig 2: Installing Differential Pinion Gears & Thrust Washers
    G02164567
  3. Install the differential pinion shaft.
    1. Push the pinion shaft in place.
    2. Install the roll pin.

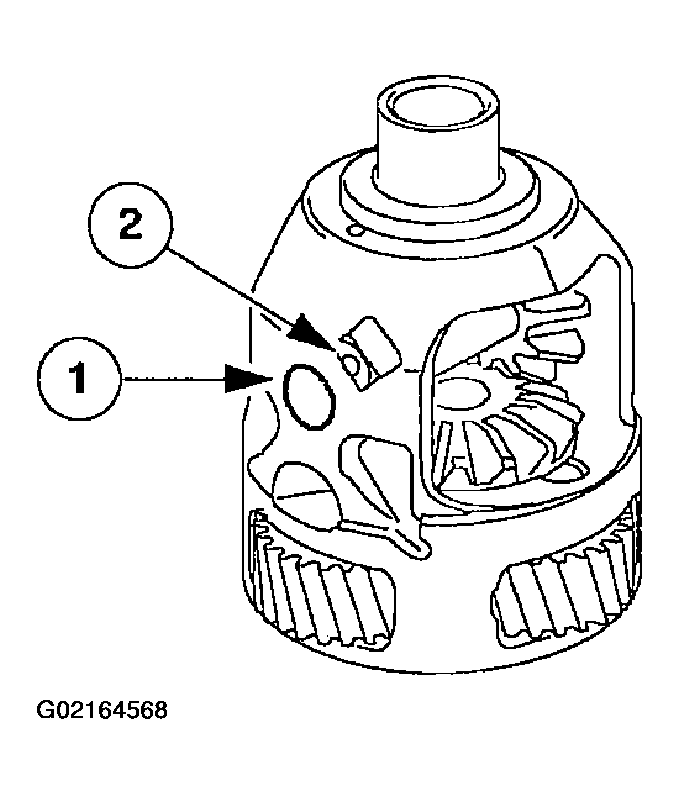

    Fig 3: Installing Differential Pinion Shaft
    G02164568
