Control Module Connector Pin I.D.

CONTROL MODULE CONNECTOR PIN IDENTIFICATION ⁽¹⁾

System Input

Driver's Side

Passenger's Side

Courtesy Lamp Switch

13

8

B-Pillar Limit Switch

18

21

A-Pillar Limit Switch

5

23

Motor Leads

3 & 4

10 & 11

Motor Leads

2 & 17

9 & 22

Retractor Switch

14

15

⁽¹⁾	Pin numbers.

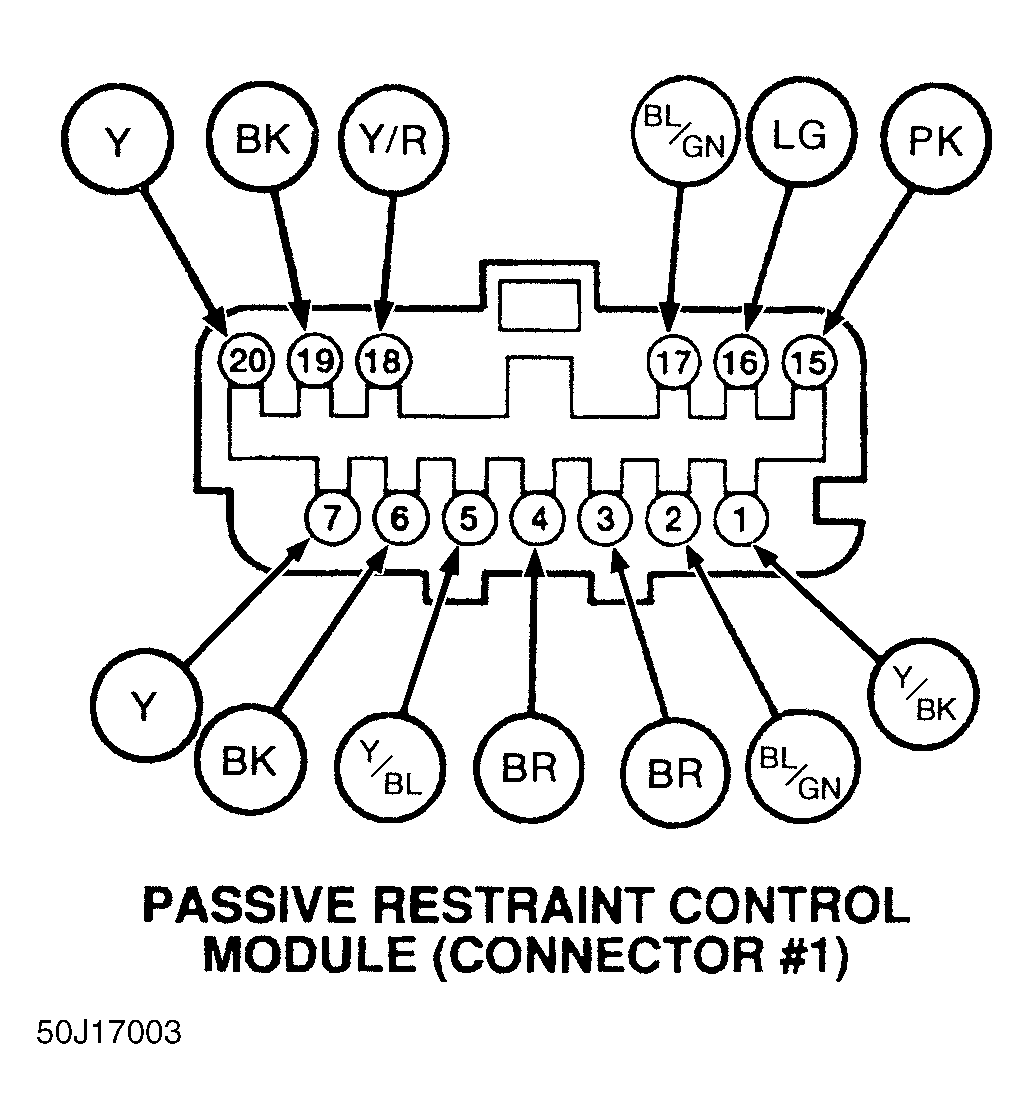

Fig 1: Control Module Connector No. 1 Pin I.D.

G50J17003

Courtesy of FORD MOTOR CO.

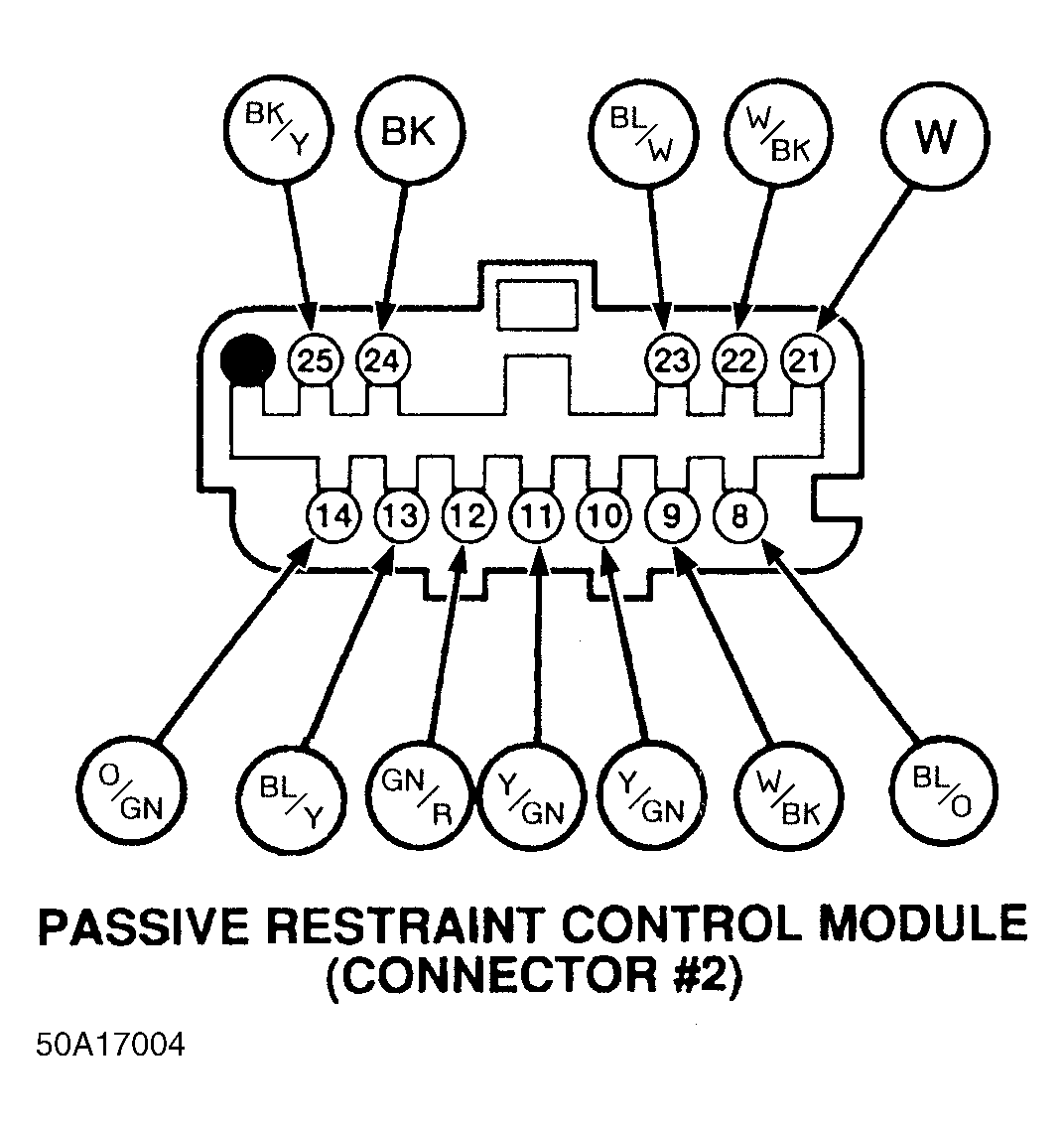

Fig 2: Control Module Connector No. 2 Pin I.D.

G50A17004

Courtesy of FORD MOTOR CO.
