Bench Seat Riser Third Row: Installation

WARNING: This page is about a different car, the 2004 Dodge Grand Caravan, 2004 Dodge Caravan, and 2004 Chrysler Town & Country. However, it is still accessible from the selected car via links, so may be relevant.
  1. Place riser in position on seat.

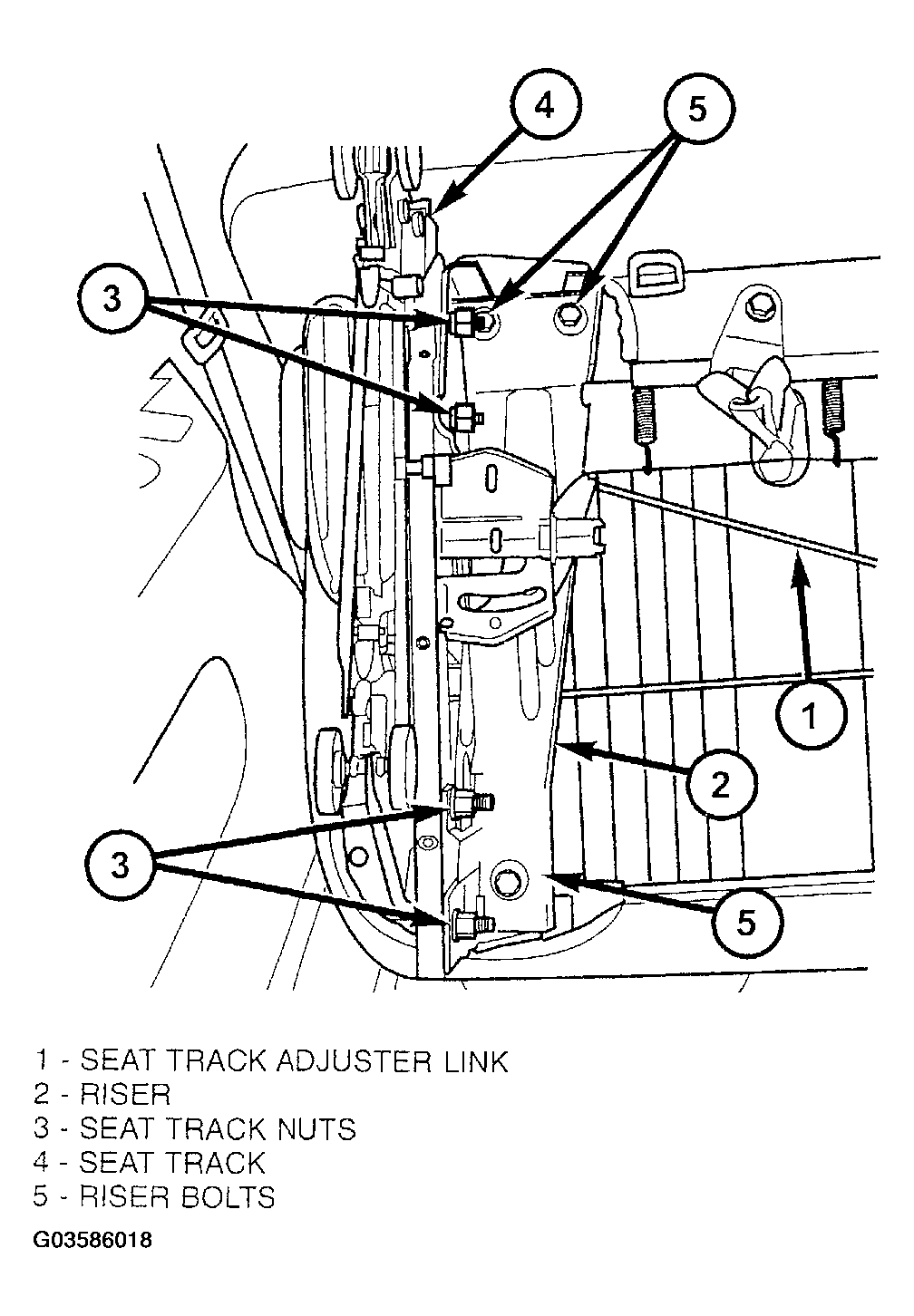

  2. Install bolts attaching riser to seat cushion frame (Figure ). Tighten nuts to 48 N.m (35 ft. lbs.) torque.
  3. Install seat track. (Refer to BENCH SEAT TRACK  )
