Fuel Pump: Installation

  1. Install a new fuel pump O-ring.
  2. Carefully install fuel pump.
  3. Install six fuel pump bolts. See Fig 1 . Tighten fuel pump bolts to specification, See TORQUE SPECIFICATIONS  .
  4. Install fuel tank. See FUEL TANK  .
  5. Start vehicle to ensure proper operation.

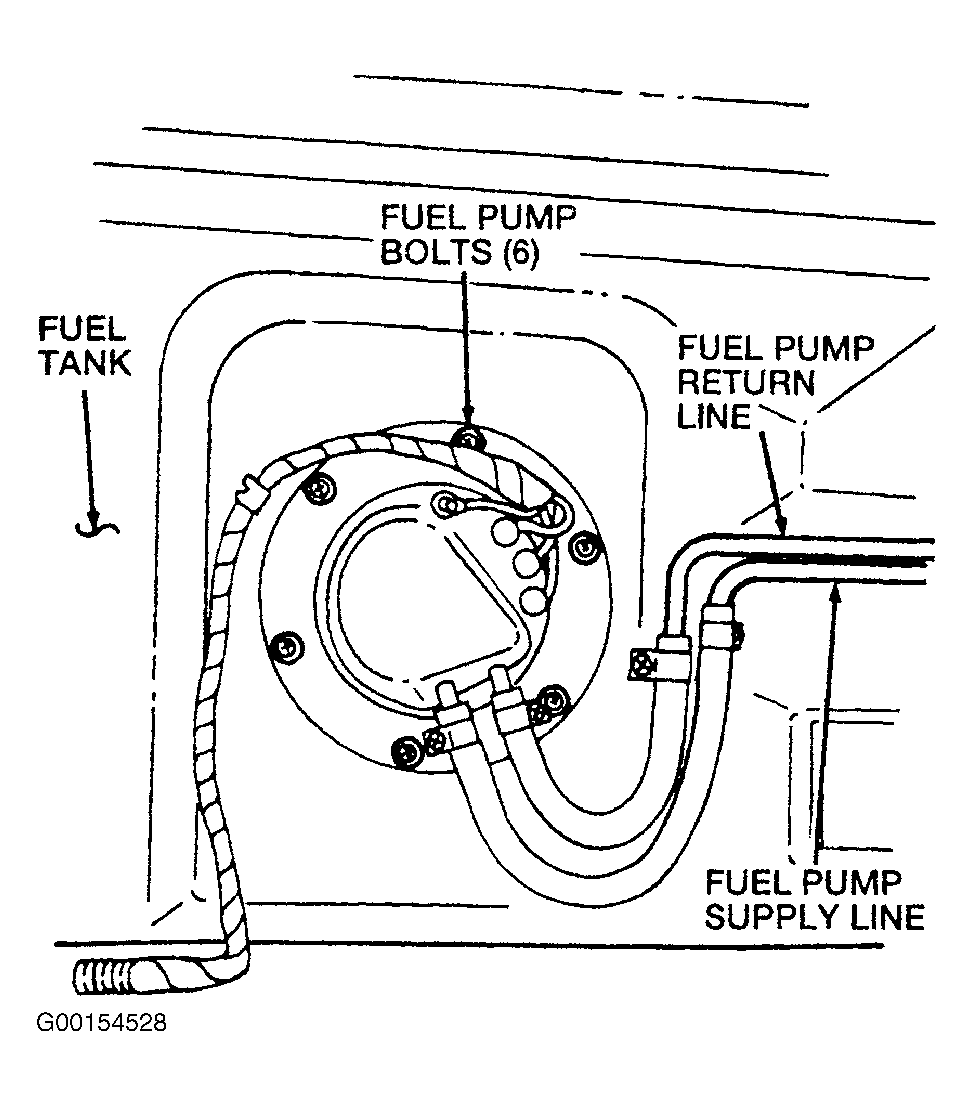

Fig 1: Removing Six Fuel Pump Bolts
G00154528Courtesy of FORD MOTOR CO.
