Removal & Installation (Main Power Window Switch)

1. Use a screwdriver to carefully pry the main power window switch from the driver-side door panel. See Fig 1 .
2. Disconnect the main power window switch electrical connector. See Fig 2 .
3. Remove the main power window switch from the vehicle.
4. To install, reverse the removal procedure.

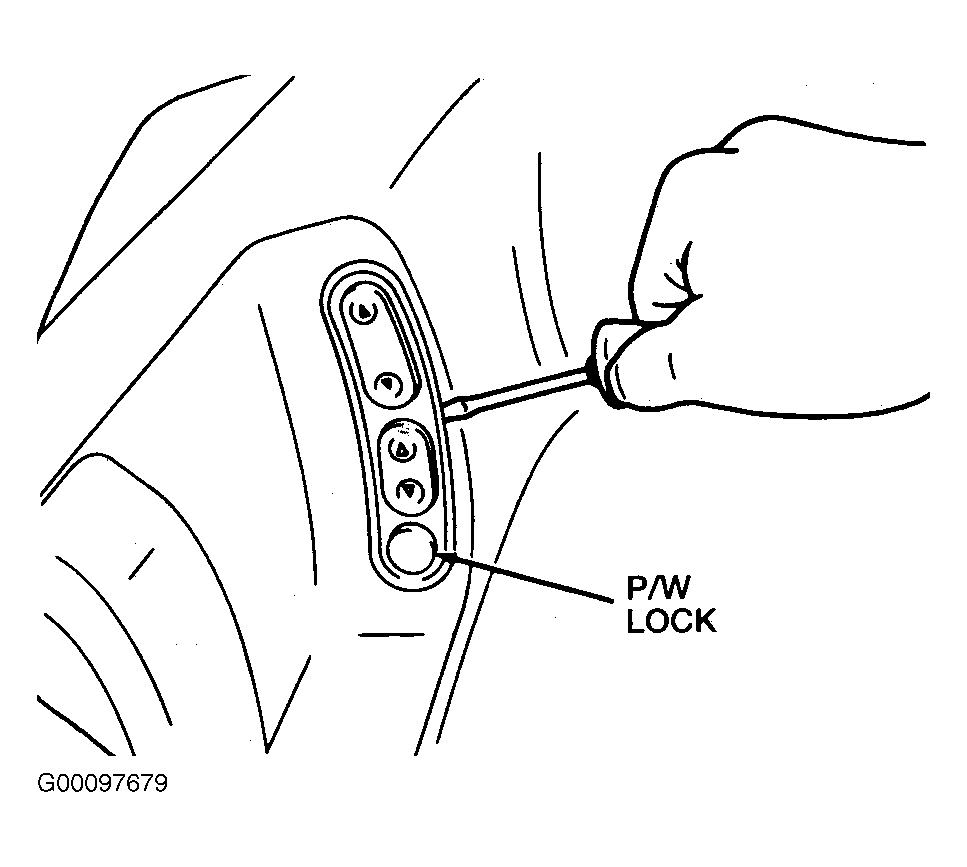

Fig 1: Prying Main Power Window Switch From Door

Courtesy of FORD MOTOR CO.

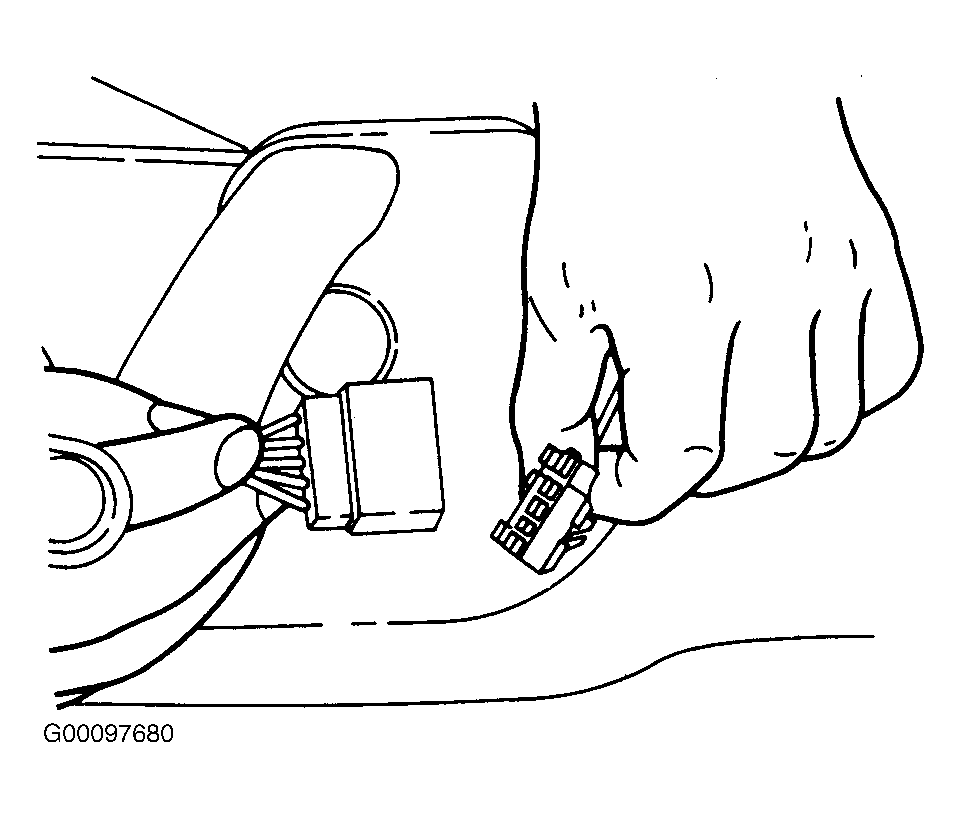

Fig 2: Disconnecting Main Power Window Switch Connector

Courtesy of FORD MOTOR CO.
