PS8:Check Driver Power Seat Switch

  1. Remove the driver power seat switch.
  2. Measure the resistance between the terminals on the driver power seat switch as indicated. See Fig 1 .

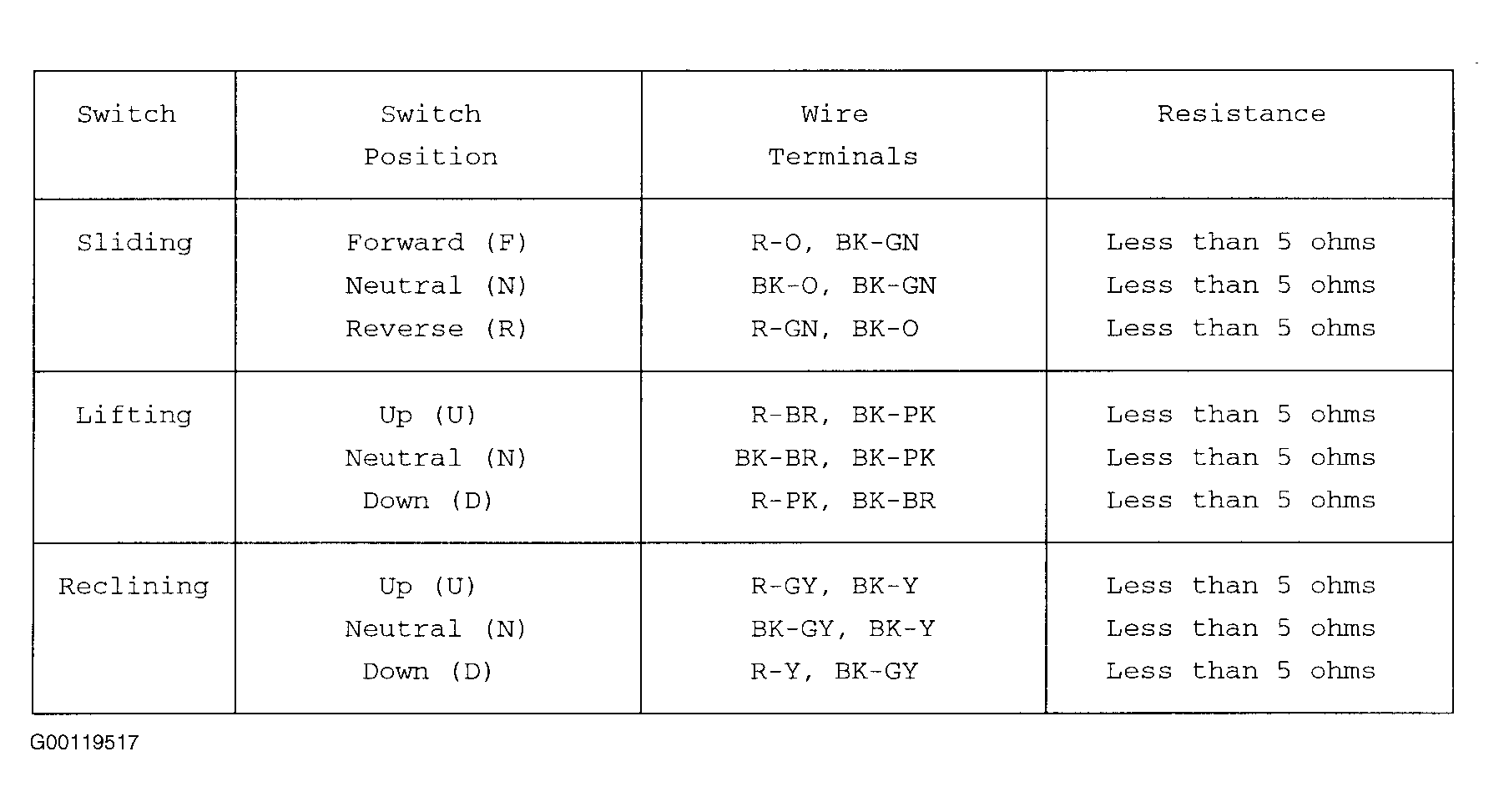

    Fig 1: Resistance Specifications For Driver Power Seat Switch
    G00119517
  3. Are the resistance as indicated? If yes, go to PS9: Check Driver Motor Assembly  . If no, replace the driver power seat switch.
