Intake/Charge Air Temperature Sensor, Component Description - GF07.04-P-6067A
Model 223
 Courtesy of MERCEDES-BENZ USA
|

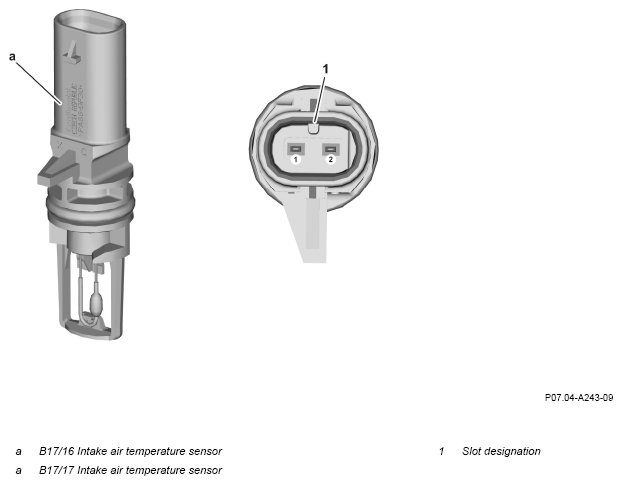

Depiction valid for model 223 with engine M279
The numbers on the pins indicate the pin numbering of the slots.
 Courtesy of MERCEDES-BENZ USA
|

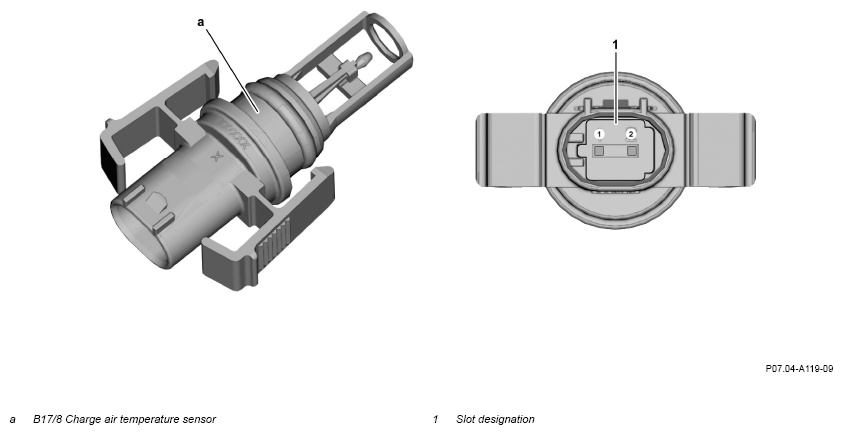

Depiction valid for model 223 with engine M656
The numbers on the pins indicate the pin numbering of the slots.
 Courtesy of MERCEDES-BENZ USA
|
Depiction valid for model 223 with engine M176
The numbers on the pins indicate the pin numbering of the slots.
 Courtesy of MERCEDES-BENZ USA
|

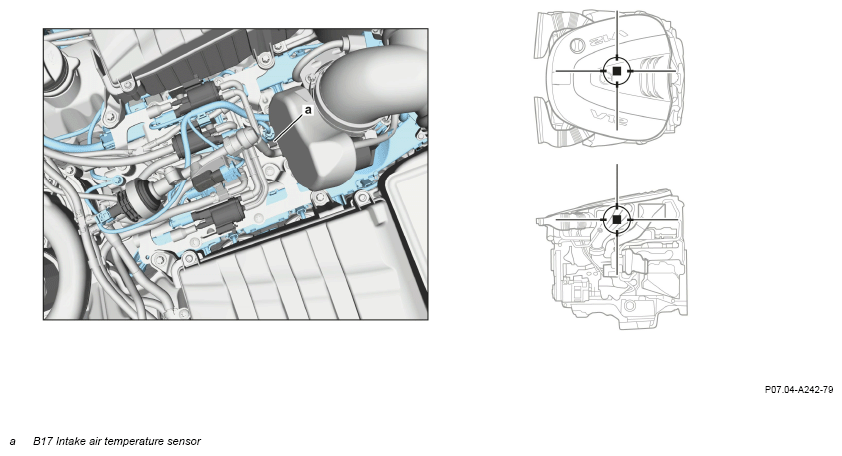

Arrangement in model 223 with engine M279
 Courtesy of MERCEDES-BENZ USA
|

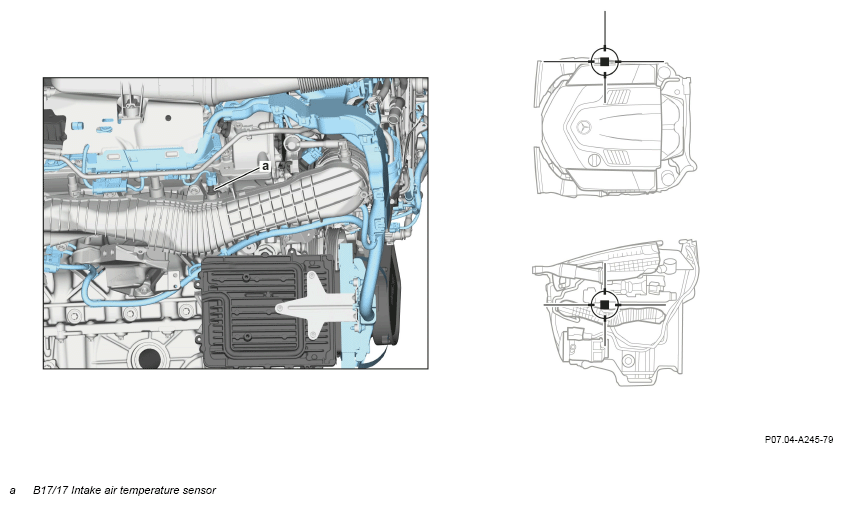

Arrangement in model 223 with engine M656
 Courtesy of MERCEDES-BENZ USA
|

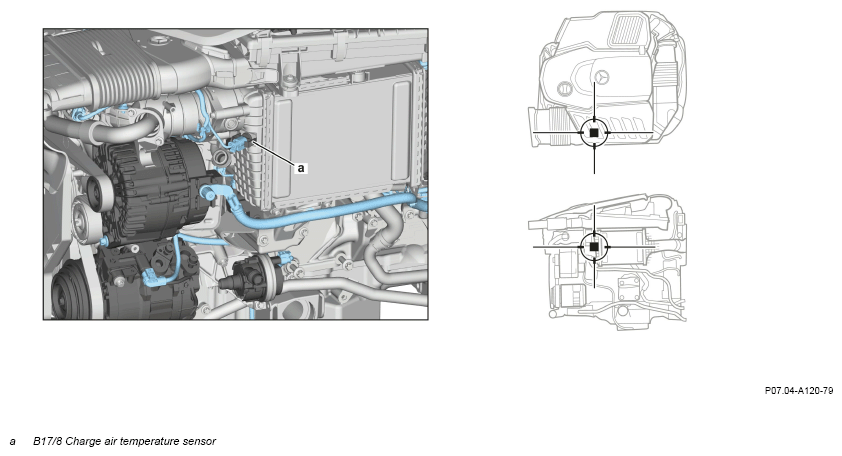

Arrangement in model 223 with engine M176
 Courtesy of MERCEDES-BENZ USA
|

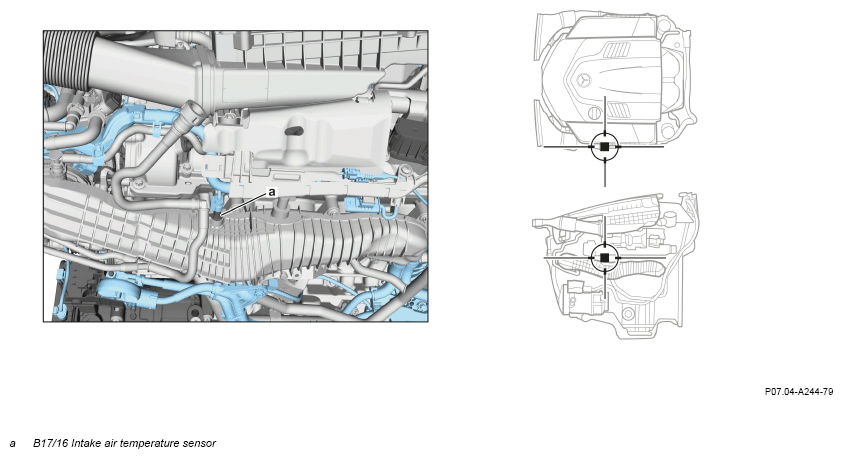

Arrangement in model 223 with engine M176
