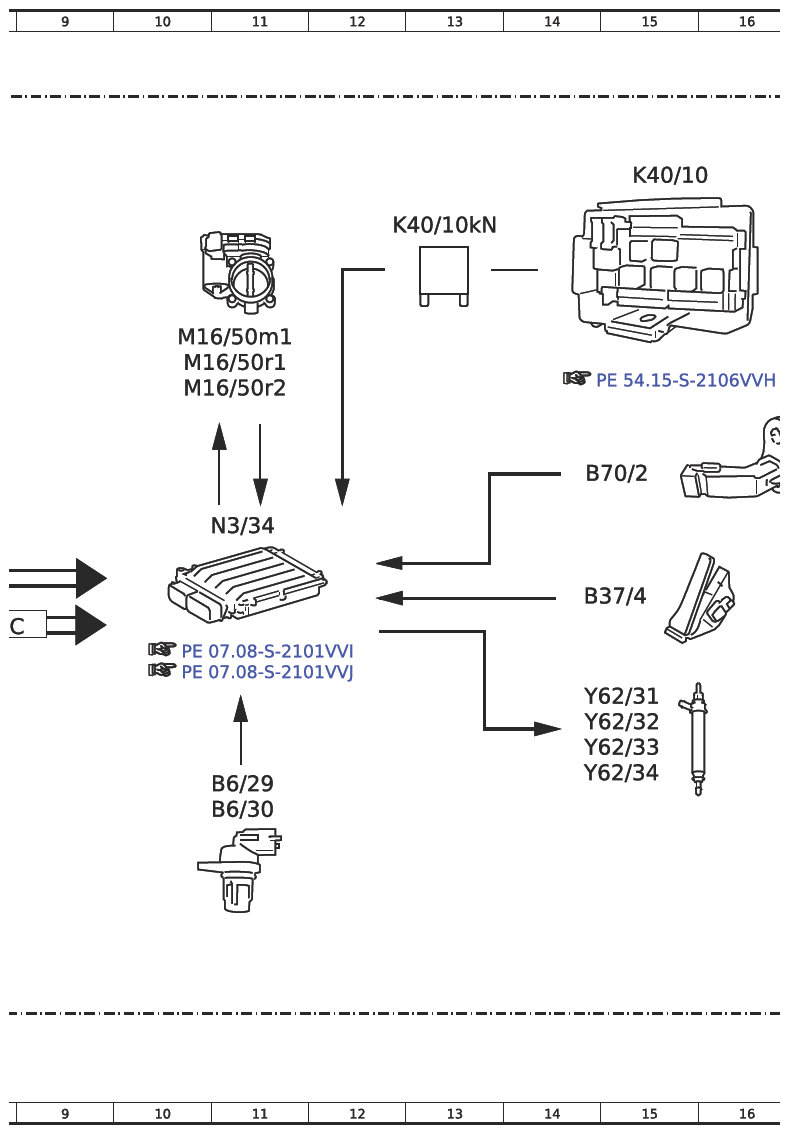

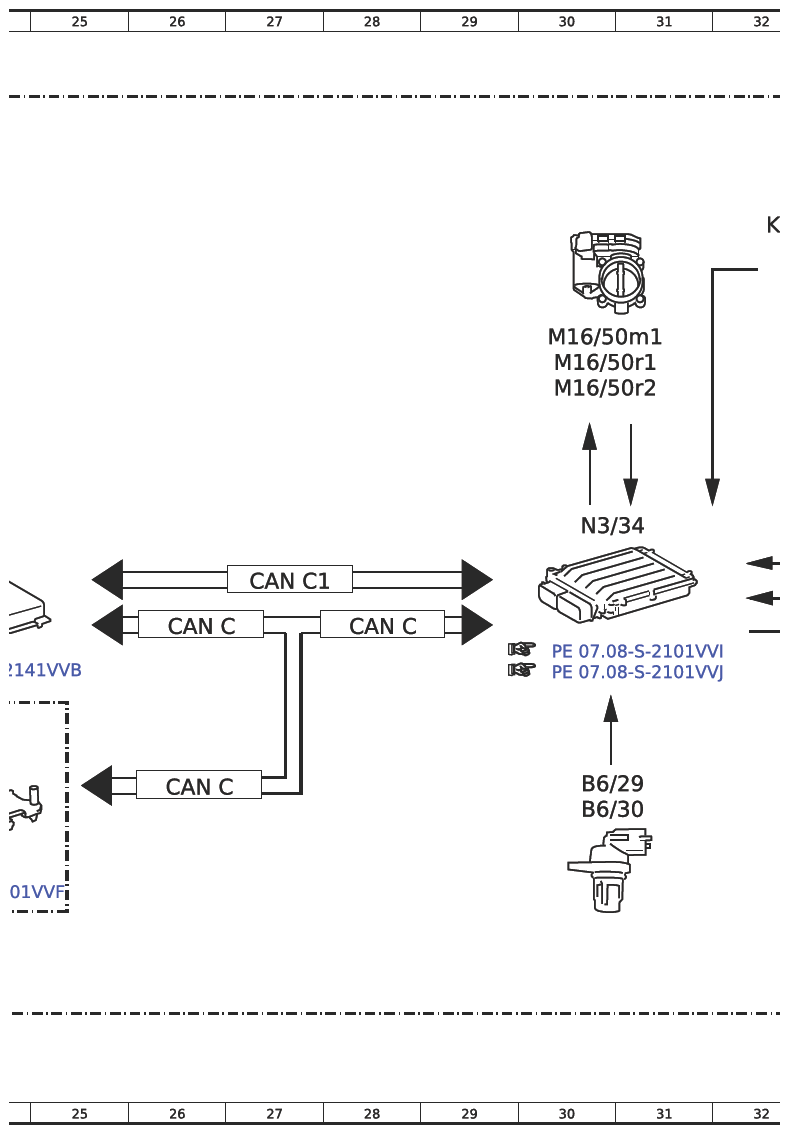

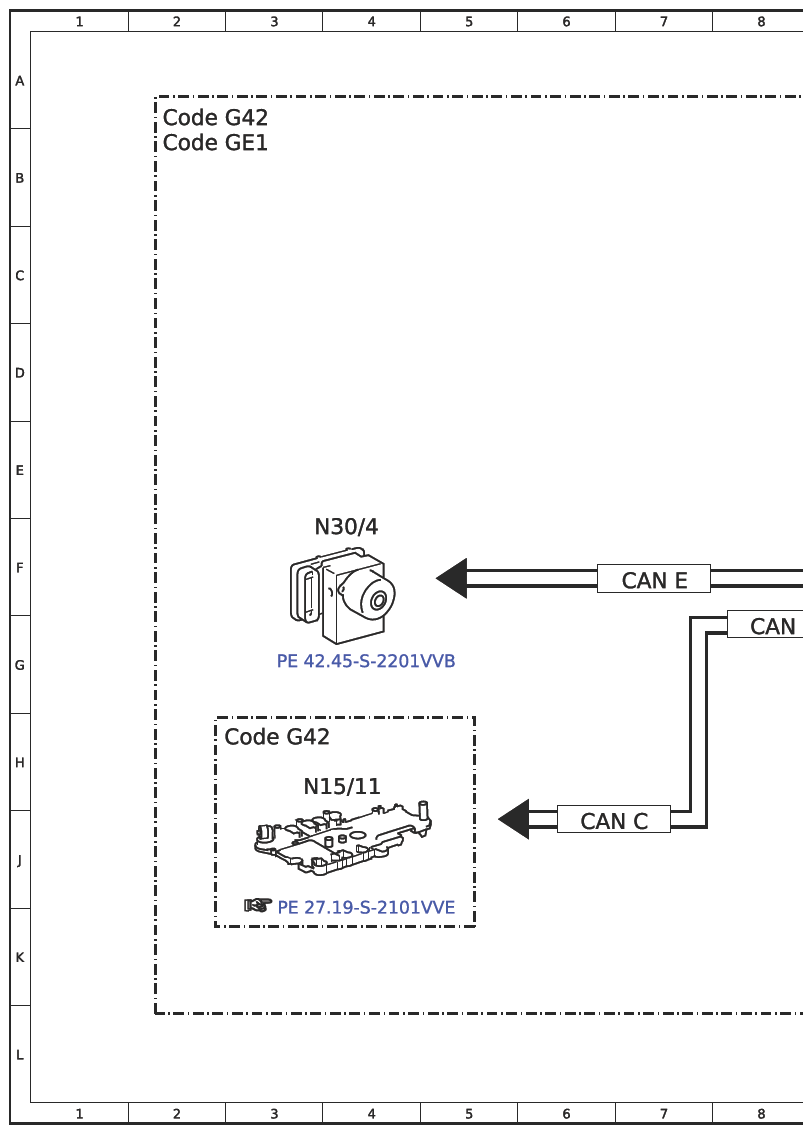

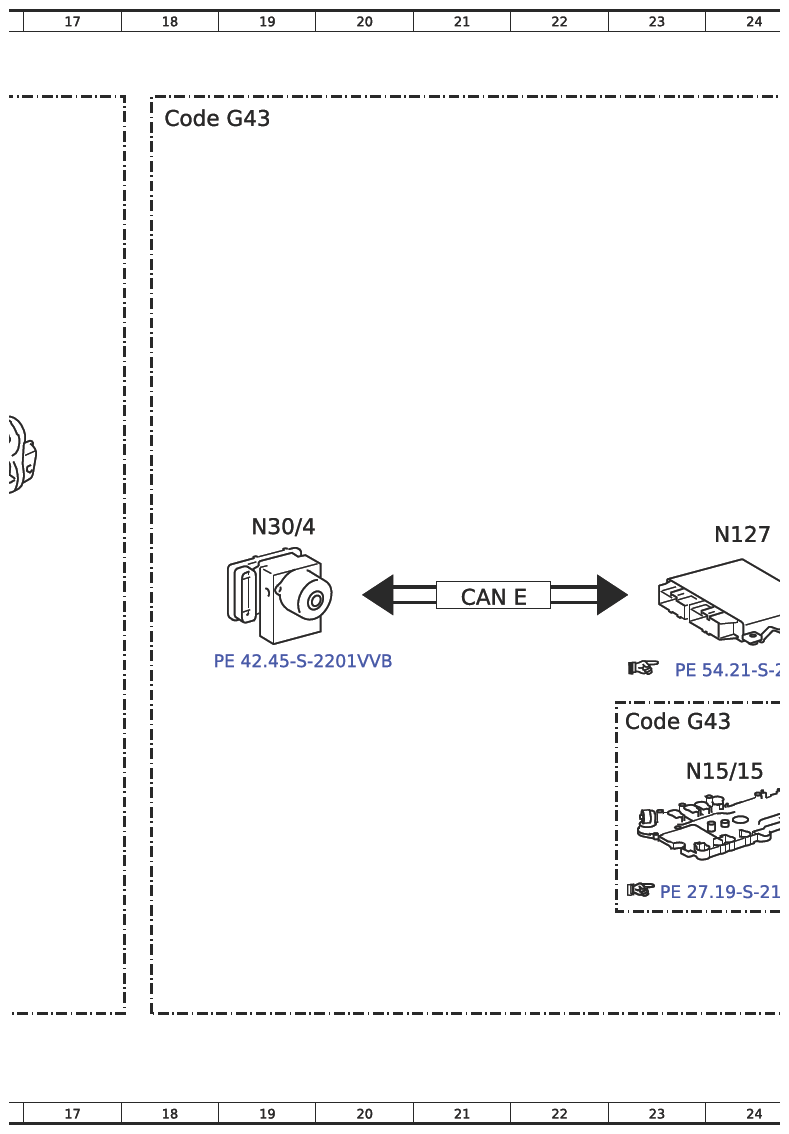

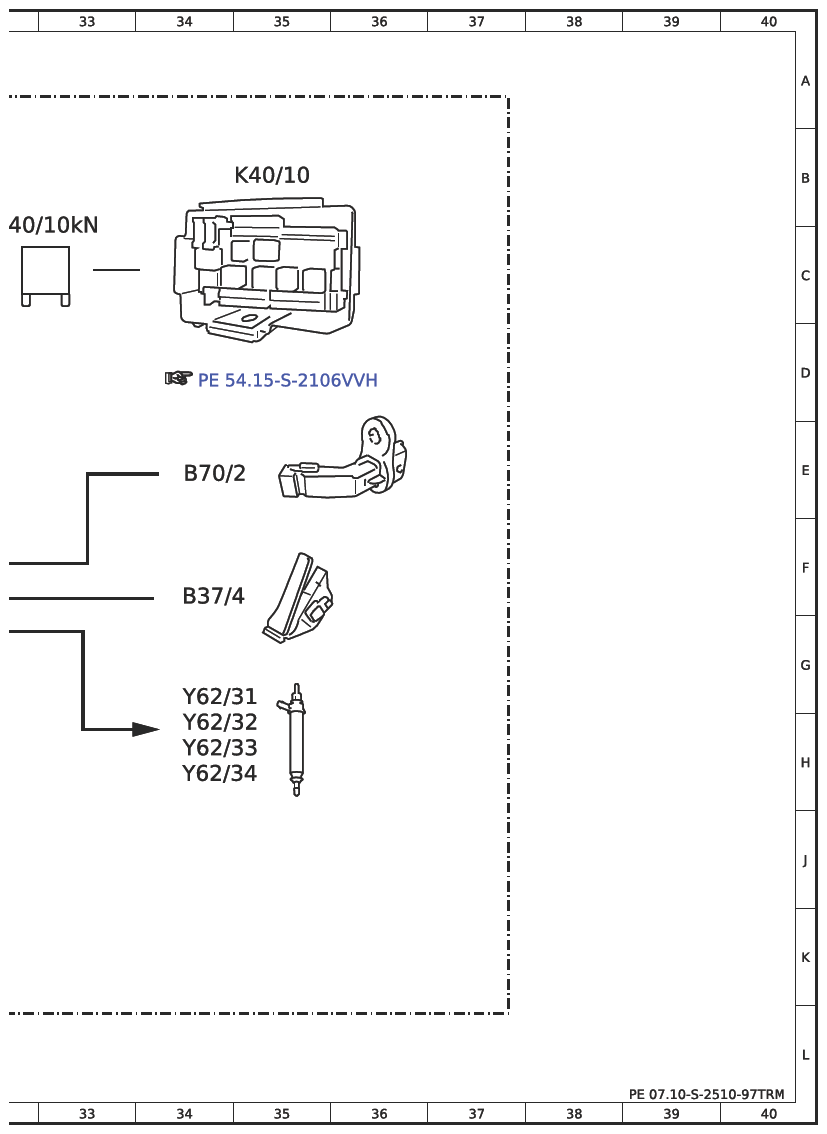

Function Schematic For Engine Limp-Home Mode - PE07.10-S-2510-97TRM
Engine 274 in model 447.6/7
with code XM0 (Facelift)
| Code: | Designation: | Position: |
|---|---|---|
| B37/4 | Accelerator pedal module | 15F |
| B37/4 | Accelerator pedal module | 34F |
| B6/29 | Intake camshaft Hall sensor | 10H |
| B6/29 | Intake camshaft Hall sensor | 30H |
| B6/30 | Exhaust camshaft Hall sensor | 10J |
| B6/30 | Exhaust camshaft Hall sensor | 30J |
| B70/2 | Crankshaft Hall sensor | 14E |
| B70/2 | Crankshaft Hall sensor | 34E |
| CAN C | Drive train CAN | 6J |
| CAN C | Drive train CAN | 8G |
| CAN C | Drive train CAN | 28G |
| CAN C | Drive train CAN | 26H |
| CAN C | Drive train CAN | 26G |
| CAN C1 | Engine CAN | 27F |
| CAN E | Chassis CAN | 7F |
| CAN E | Chassis CAN | 21F |
| Code G42 | 7G-TRONIC PLUS automatic transmission | 2A |
| Code G42 | 7G-TRONIC PLUS automatic transmission | 2H |
| Code G43 | 9G-TRONIC | 18A |
| Code G43 | 9G-TRONIC | 23H |
| Code GE1 | 6-speed manual transmission TSG 380 | 2B |
| K40/10 | Engine compartment fuse and relay module | 15B |
| K40/10 | Engine compartment fuse and relay module | 35B |
| K40/10kN | Circuit 87M relay | 13C |
| K40/10kN | Circuit 87M relay | 32C |
| M16/50m1 | Throttle valve actuator motor | 11D |
| M16/50m1 | Throttle valve actuator motor | 30D |
| M16/50r1 | Actual value potentiometer 1 | 11D |
| M16/50r1 | Actual value potentiometer 1 | 30D |
| M16/50r2 | Actual value potentiometer 2 | 11D |
| M16/50r2 | Actual value potentiometer 2 | 30D |
| N127 | Drivetrain control unit | 24F |
| N15/11 | Fully integrated transmission control (VGS) electric controller unit | 4H |
| N15/15 | Fully integrated transmission control (VGS) electric controller unit | 24H |
| N3/34 | ME-SFI [ME] control unit | 11F |
| N3/34 | ME-SFI [ME] control unit | 30F |
| N30/4 | Electronic Stability Program (ESP) control unit | 4F |
| N30/4 | Electronic Stability Program (ESP) control unit | 19F |
| Y62/31 | Cylinder 1 fuel injector | 14G |
| Y62/31 | Cylinder 1 fuel injector | 34G |
| Y62/32 | Cylinder 2 fuel injector | 14H |
| Y62/32 | Cylinder 2 fuel injector | 34H |
| Y62/33 | Cylinder 3 fuel injector | 14H |
| Y62/33 | Cylinder 3 fuel injector | 34H |
| Y62/34 | Cylinder 4 fuel injector | 14H |
| Y62/34 | Cylinder 4 fuel injector | 34H |
